7. SPECIAL ADJUSTMENT FUNCTIONS
7 - 25

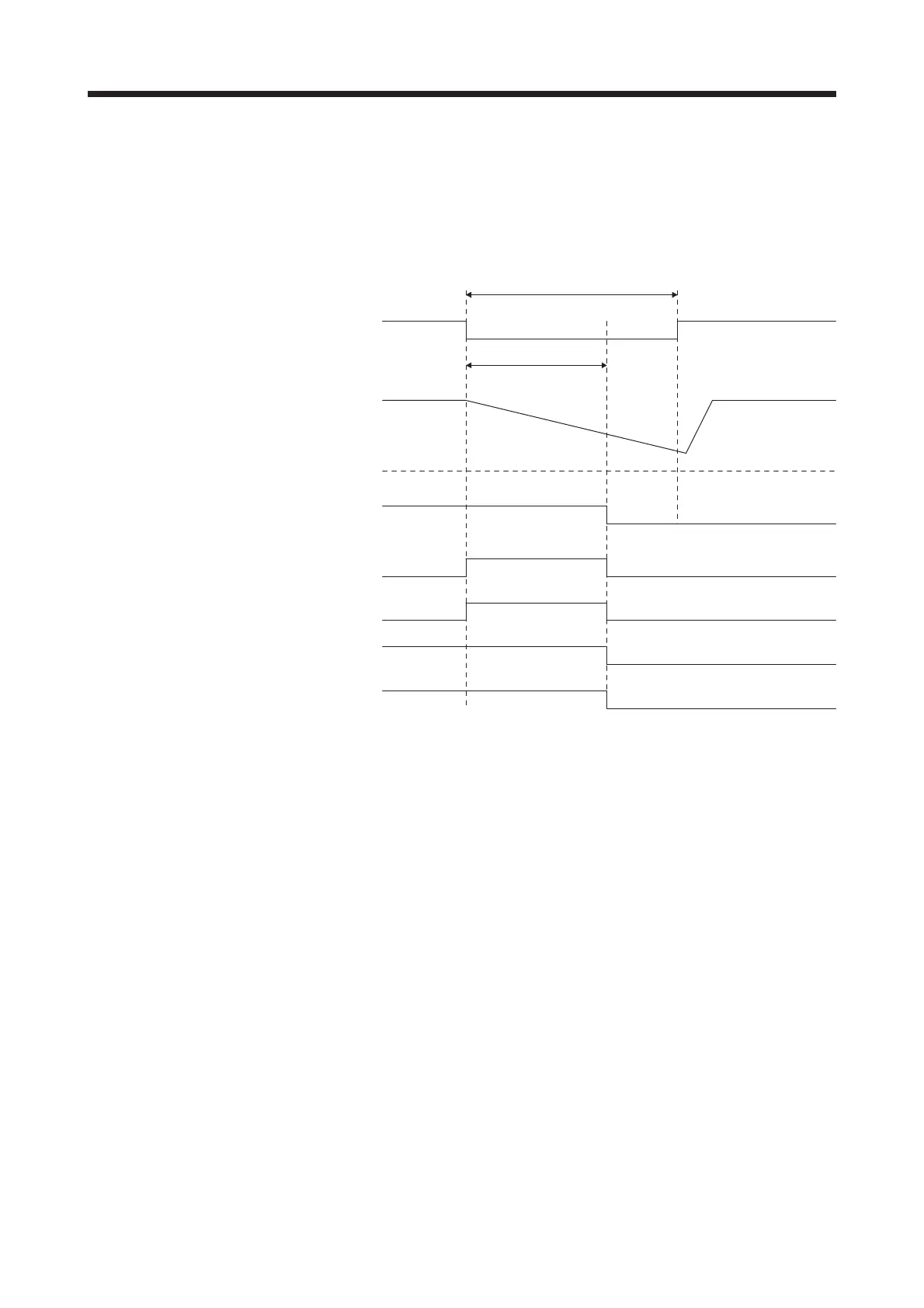

(1) Instantaneous power failure time of the control circuit power supply > [Pr. PF25 Instantaneous power
failure tough drive - Detection time]
The alarm occurs when the instantaneous power failure time of the control circuit power supply exceeds
[Pr. PF25 Instantaneous power failure tough drive - Detection time].
MTTR (During tough drive) turns on after detecting the instantaneous power failure.
MBR (Electromagnetic brake interlock) turns off when the alarm occurs.
೙ᓮ࿁〝㔚Ḯ
Უ✢㔚࿶
⿷㔚࿶࡟ࡌ࡞
(DC158V)
CALM
(౒ㅢ᡿㓚)
[Pr.PF25]
೙ᓮ࿁〝㔚Ḯ⍍஗ᤨ㑆
MTTR
(࠲ࡈ࠼࡜ࠗࡉ)
MBR
(㔚⏛ࡉ࡟࡯ࠠ
ࠗࡦ࠲ࡠ࠶ࠢ)
ࡌ࡯ࠬ࿁〝
ON
OFF
ON
OFF
ON
OFF
WNG
(⼊๔)
ON
OFF
ON
OFF
ON
OFF
WNG
(Warning)
MTTR
(During tough drive)
Control circuit power
supply
Bus voltage
Undervoltage level
(158 V DC)
MBR
(Electromagnetic
brake interlock)
Base circuit
Instantaneous power failure time of the control
circuit power supply
A
LM
(Malfunction)
