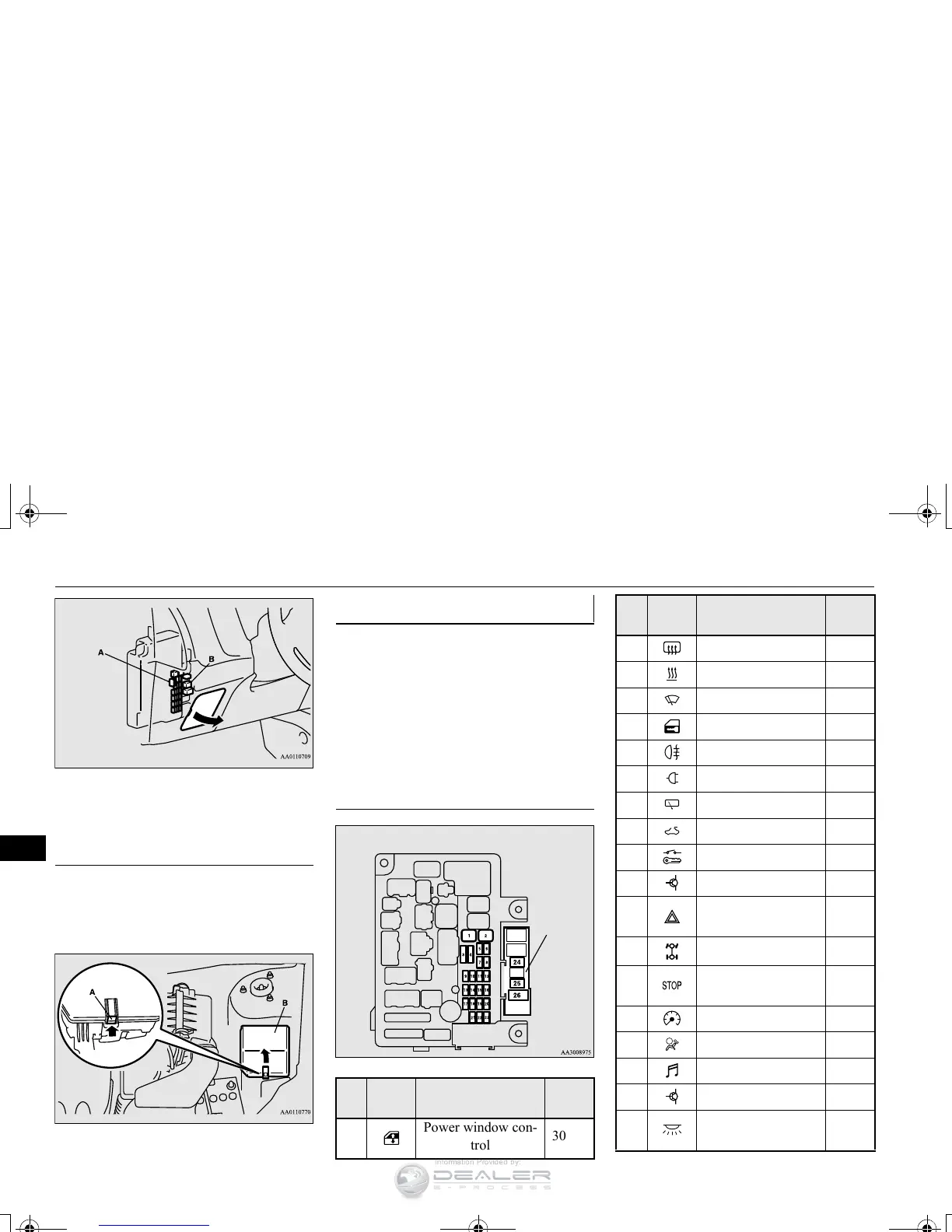

In the engine compartment, the fuse block is
located as shown in the illustration. While
pressing the tab (A), pull up the cover (B).
N00954801355
This fuse list shows the names of the electri-
cal systems and their fuse capacities.
There are spare fuses in the fuse block cover
in the engine compartment. Always replace a
blown fuse with one of the same capacity as
the original.
A- Main fuse block
B- Sub fuse block
Engine compartment
Fuse load capacities
Passenger compartment fuse loca-
tion table
No.
Sym-
bol
Electrical system
Capac
ity
1
Power window con-
trol
30 A*
2 Defogger 30 A*
3 Heater 30 A
4 Windshield wipers 30 A
5 Door locks 20 A
6 Rear fog light 10 A
7 12 V power outlet 15 A
8 Rear window wiper 15 A
9 Sunroof 20 A
10 Ignition switch 10 A
11 Option 10 A
12
Hazard warning
flasher
15 A
13 4-wheel drive system 10 A
14
Stop lights
(Brake lights)
15 A
15 Gauges 10 A
16 SRS airbag 7.5 A
17 Radio 15 A
18 Control unit relay 7.5 A
19
Interior lights
(Room lights)
15 A
No.
Sym-
bol
Electrical system
Capac
ity
