Fuses
Vehicle care and maintenance 9-27
9
*: Fusible link
 Some fuses may not be installed on your
vehicle, depending on the vehicle model
or specifications.
 The table above shows the main equip-
ment corresponding to each fuse.
20 Back-up lights 7.5 A
21
Heated outside
rearview mirrors
7.5 A
22
Outside rearview
mirrors
10 A
23
Cigarette lighter/
12 V power outlet
15 A
24 Charge 7.5 A
25 Power seat 30 A*
26 Heated seats 30 A
No.
Sym-
bol
Electrical system
Capac
ity

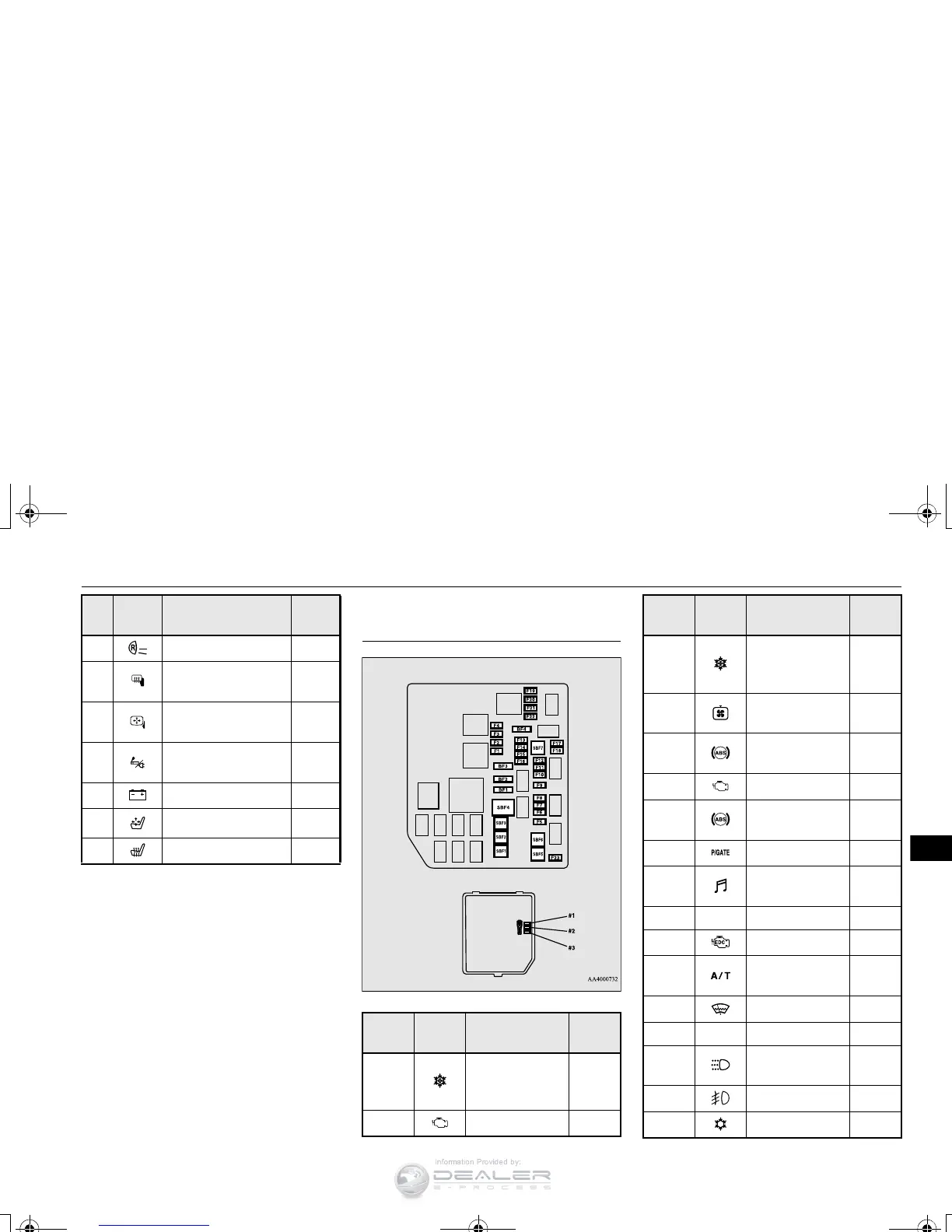

Engine compartment fuse location
table
No.
Sym-
bol
Electrical sys-
tem
Capaci
ty
SBF1
Air condition-
ing condenser
fan motor
30 A*
SBF2 Starter 30 A*
Behind the fuse block cover
SBF3
Air condition-
ing condenser
fan motor
30 A*
SBF4
Radiator fan
motor
40 A*
SBF5
Anti-lock brak-
ing system
40 A*
SBF6 VLC 40 A*
SBF7
Anti-lock brak-
ing system
30 A*
BF1 Power liftgate 30 A
BF2
Audio system
amplifier
30 A
BF3 IOD IOD 30 A
BF4 Diesel 30 A
F1
Automatic
transaxle
20 A
F2 Wiper de-icer 15A
F3———
F4
Daytime run-
ning lights
10 A
F5 Front fog lights 15 A
F6 Air conditioner 10 A
No.
Sym-
bol
Electrical sys-
tem
Capaci
ty
