Mitsubishi ASX 2019

No.
Sym-
bol
Electrical sys-
tem
Ca-
paci-
ties
14 Ignition switch 10 A
15 Sunroof 20 A
16
Outside rear-
view mirrors
10 A
17
4-wheel drive
system
10 A
18
Reversing lamps
(Backup lamps)
7.5 A
19
Accessory sock-
et
15 A
20
Electric window
control
30 A
*1
21
Rear window
demister
30 A
*1
22
Heated door
mirror
7.5 A
23
Passenger’s
power seat
25 (20)
A
*1
: Fusible link
*2
: Even if your vehicle is equipped with the
rear fog lamp, the fuse of the rear fog lamp
may not be installed on your vehicle.
No.
Sym-
bol
Electrical sys-
tem
Ca-
paci-
ties
24
Driver’s power
seat
25 (20)
A
25 Heated seat 30 A
*1
: Fusible link
*2
: Even if your vehicle is equipped with the
rear fog lamp, the fuse of the rear fog lamp
may not be installed on your vehicle.
l
Some fuses may not be installed on your
vehicle, depending on the vehicle model
or specifications.
l
The table above shows the main equip-
ment corresponding to each fuse.

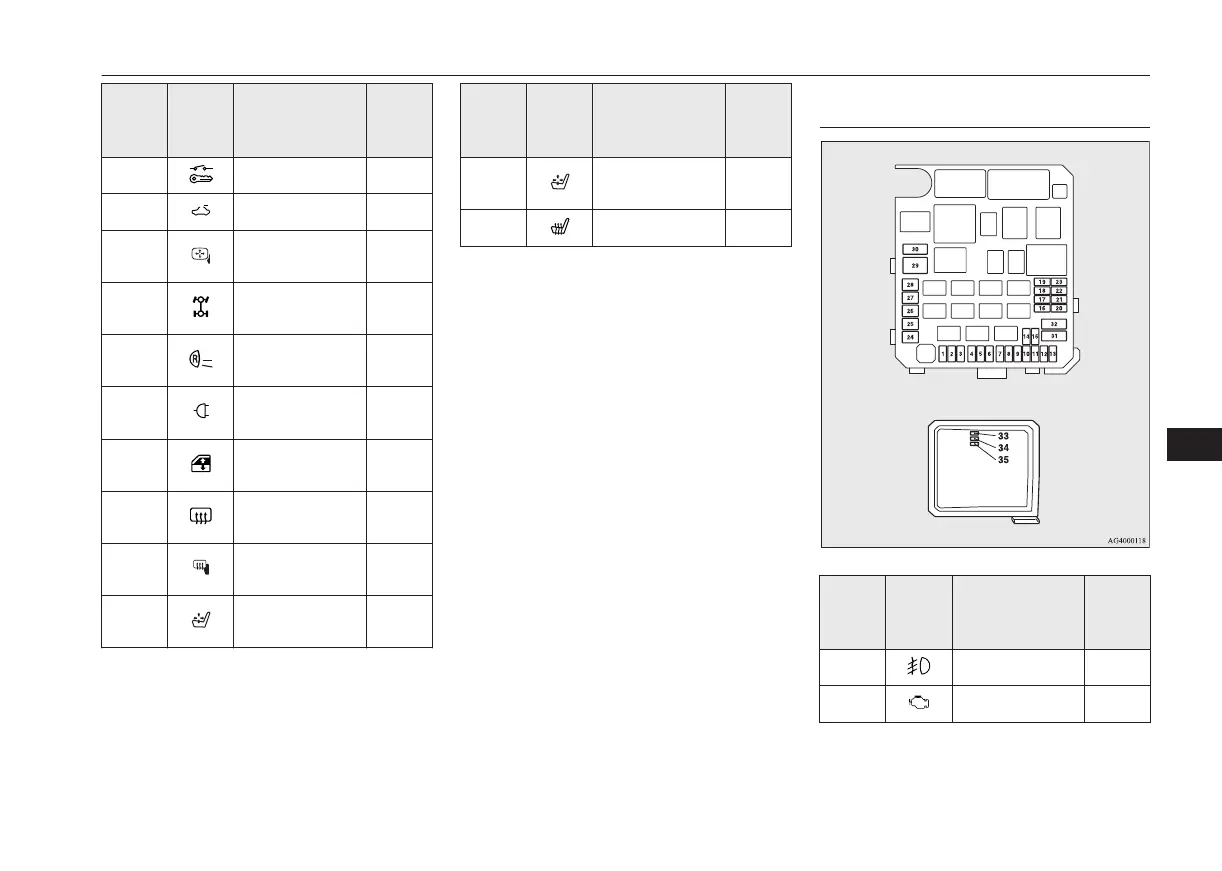

Engine compartment fuse loca-
tion table
Engine compartment fuse location
Behind of the fuse block cover
No.
Sym-
bol
Electrical sys-
tem
Ca-
paci-
ties
1 Front fog lamps 15 A
2 Engine 7.5 A
*1
: Fusible link
Fuses
10-21
OGAE19E1
Maintenance
