Some fuses may not be installed on your
vehicle, depending on the vehicle model
or specifications.
l
The table above shows the main equip-
ment corresponding to each fuse.
The fuse box does not contain spare 7.5 A,
25 A or 30 A fuses. If one of these fuses
burns out, substitute with the following fuse.
7.5 A: 10 A spare fuse
25 A: 20 A spare fuse
30 A: 30 A audio system amp fuse
When using a substitute fuse, replace with a
fuse of the correct capacity as soon as possi-
ble.
Identification of fuse
Capacity Colour
7.5 A Brown
10 A Red
15 A Blue
20 A Yellow
25 A Natural (White)
30 A
Green (fuse type)/Pink
(fusible link type)
40 A Green (fusible link type)
Fuse replacement
1. Before replacing a fuse, always turn off
the electrical circuit concerned and turn
the ignition switch to the “LOCK” posi-
tion or put the operation mode in OFF.

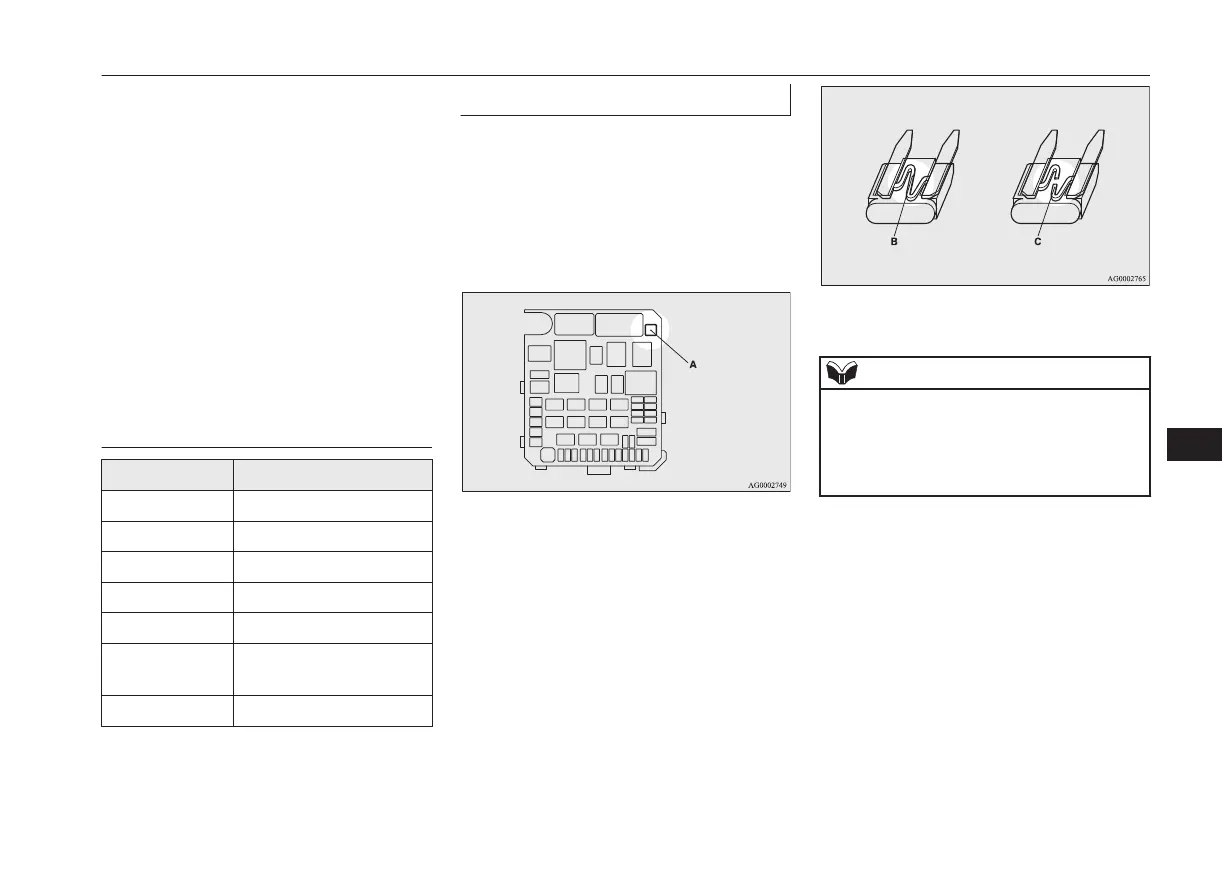

2. Remove the fuse puller (A) from the in-
side of the fuse box in the engine com-
partment.
3.
Referring to the fuse load capacity table,
check the fuse pertaining to the problem.
B- Fuse is OK
C- Blown fuse
NOTE
l
If any system does not function but the fuse
corresponding to that system is normal, there
may be a fault in the system elsewhere. We
recommend you to have your vehicle
checked.
4. Use the fuse puller to insert a new fuse
with the same capacity. Make sure you
insert the fuse into the same location in
the fuse block.
Fuses
10-23
