12-44 Simple inspection and service

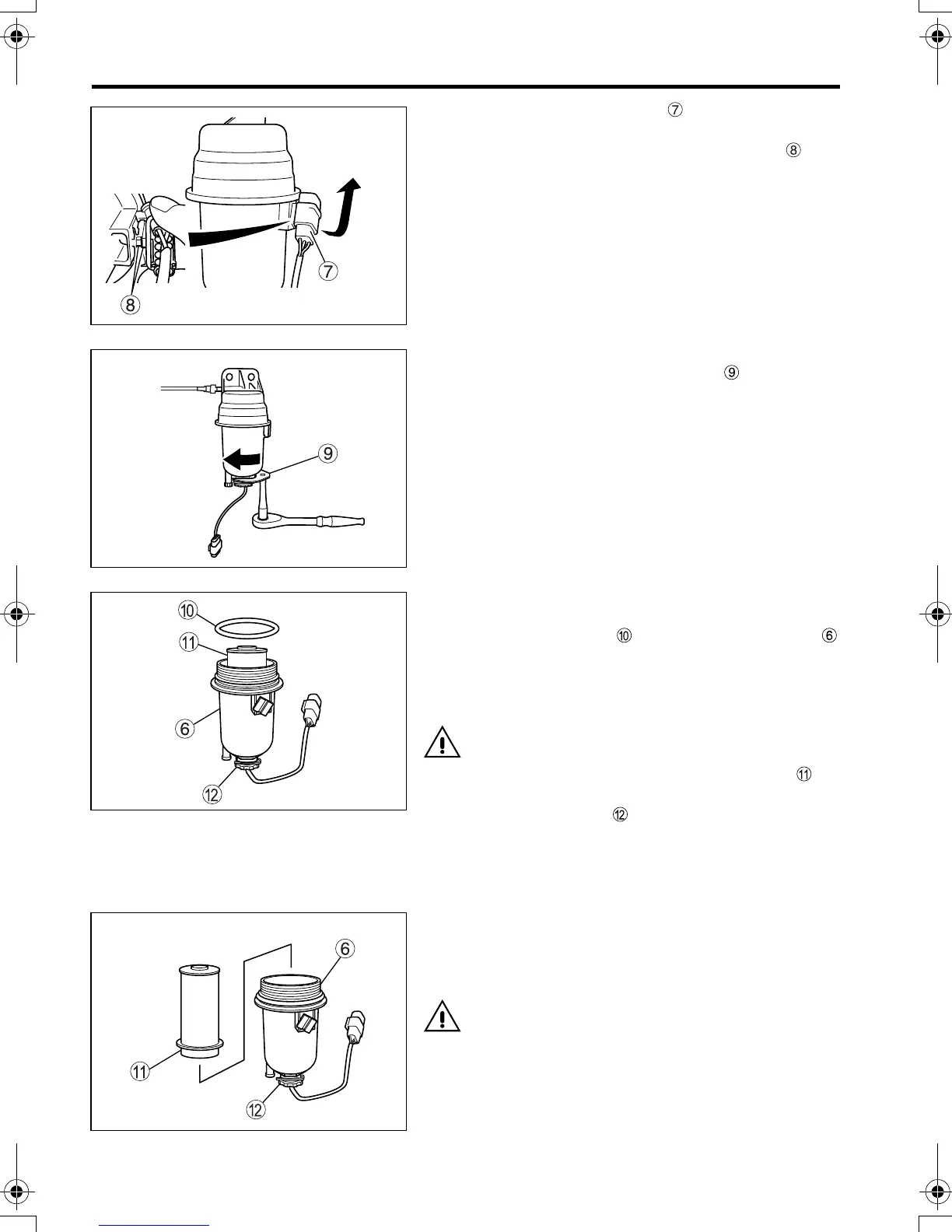

7. Disconnect the connector from the fuel filter
case. Do this by pulling the bottom part of the
connector toward you to release the lock and
then pulling the connector directly upward.
8. Remove the fuel filter case by turning it counter-
clockwise using the special tool (separately
available). Let the fuel inside the case drain out.
9. Remove the filter element out of the case by
pulling it straight upward.
10. Replace the O-ring of the fuel filter case
with a new one. After applying a light coat of
engine oil to the new O-ring, install it on the fuel
filter case.
CAUTION
• Remove and install the filter element in
parallel with the axis of the filter case. Other-
wise, the sensor inside the case could
become damaged.
• Use only the O-ring supplied with a new
replacement filter element.
11. Install a new, genuine filter element into the filter
case as shown in the illustration, paying atten-
tion to its direction.
Insert the filter element in a straight line.
CAUTION
Do not reuse the filter element.
Z21456
Z21580
Z21459
Z21460
FE_FG.book Page 44 Tuesday, February 8, 2011 4:00 PM
