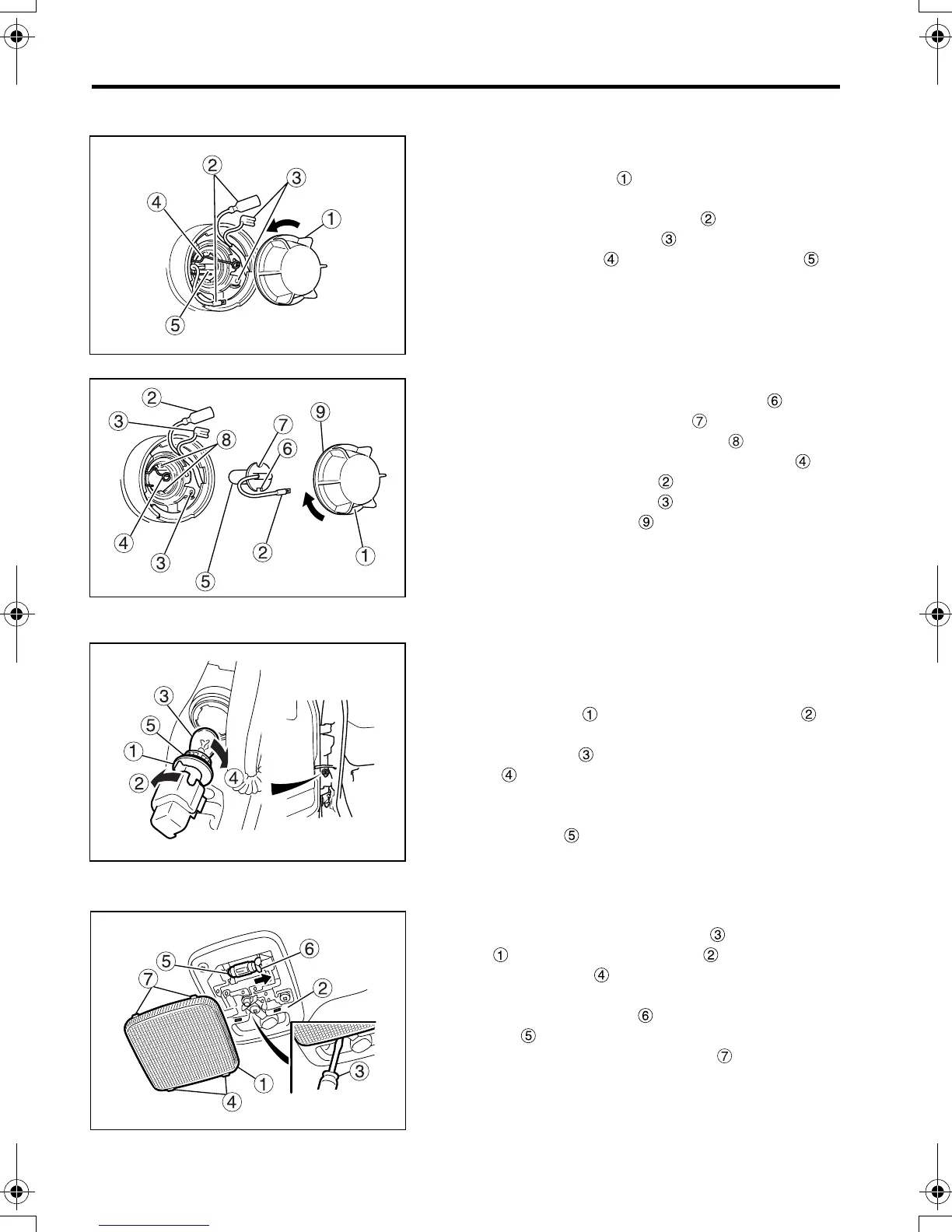

2 Replacing the fog lamp bulb
•
Removal
1. Tilt up the cab if it has a tilting mechanism.
2. Remove the cover after turning it counter-
clockwise to a stop.
3. Disconnect the bulb connector .
4. Disconnect the connector from the lamp unit.
5. Unhook the spring , then pull out the bulb .
• Installation
1. Hold the bulb with the square groove at the
top (with the circular groove at the bottom),
then align the bulb with the lugs on the fog
lamp unit, install it and fix it with the spring .
2. Reconnect the connector of the bulb.
3. Reconnect the connector to the fog lamp unit.
4. Clean the packing if necessary. Also
straighten the packing if it is twisted.
5. Install the cover on the lamp unit and turn it
clockwise.
6. Lower the cab if it was tilted up.
3 Front and side turn signal lamp bulb
replacement
1. Open the door.
2. Turn the socket in the direction of arrow to
remove it.
3. Press the bulb and turn it in the direction of
arrow to remove it.
4. Perform installation by following the removal
steps in reverse.
5. If the packing is dirty, clean it.
4 Interior lamp bulb replacement
4.1 Type 1 <front and rear seats>
1. Insert a flat-blade screwdriver between the
lens and the interior lamp and use it to
release the tabs on the bottom of the lens.
Remove the lens.
2. Push the bulb retainer rightward and remove
the bulb .
3. To install the lens, insert the tabs on the top of
the lens and press the bottom of the lens into
place.
