EN-10
Setting up your projector
Setting up the screen
Install the screen perpendicularly to the projector. If the screen can not be installed in such a way, adjust the projection
angle of the projector. (See page 12.)
Install the screen and projector so that the projector’s lens is placed at the same height and horizontal position of
the screen center.
Do not install the screen where it is exposed to direct sunlight or lighting. Light directly reflecting on the screen
makes the projected images washed-out and hard to view.
SCREEN SIZE
You can keep the image display area within the screen by setting SCREEN SIZE in the ADVANCED MENU of IMAGE
menu according to the aspect ratio of the actual screen. Select 16:9 when the aspect ratio of the screen is 16:9 or 4:3,
and select CINEMA SCOPE (2.35:1) when the aspect ratio is 2.35:1 (CinemaScope).
When setting SCREEN SIZE to CINEMA SCOPE (2.35:1):
CinemaScope size movies are projected in the full screen.
Set ASPECT in the FEATURE menu to 16:9 when displaying Vista-size images. In this case, they are squeezed
horizontally.
When ASPECT in the FEATURE menu is set to AUTO and 480i/p, 576i/p, 720p, or 1080i/p signal is input, the part
for displaying subtitles is not projected. To display subtitles, reset SCREEN SIZE to 16:9 and adjust the image
position using VERTICAL LOCATION in the ADVANCED MENU of the IMAGE menu. (To display the menu on the
screen, adjust SHUTTER(U) in the SIGNAL - USER menu to position the menu.)

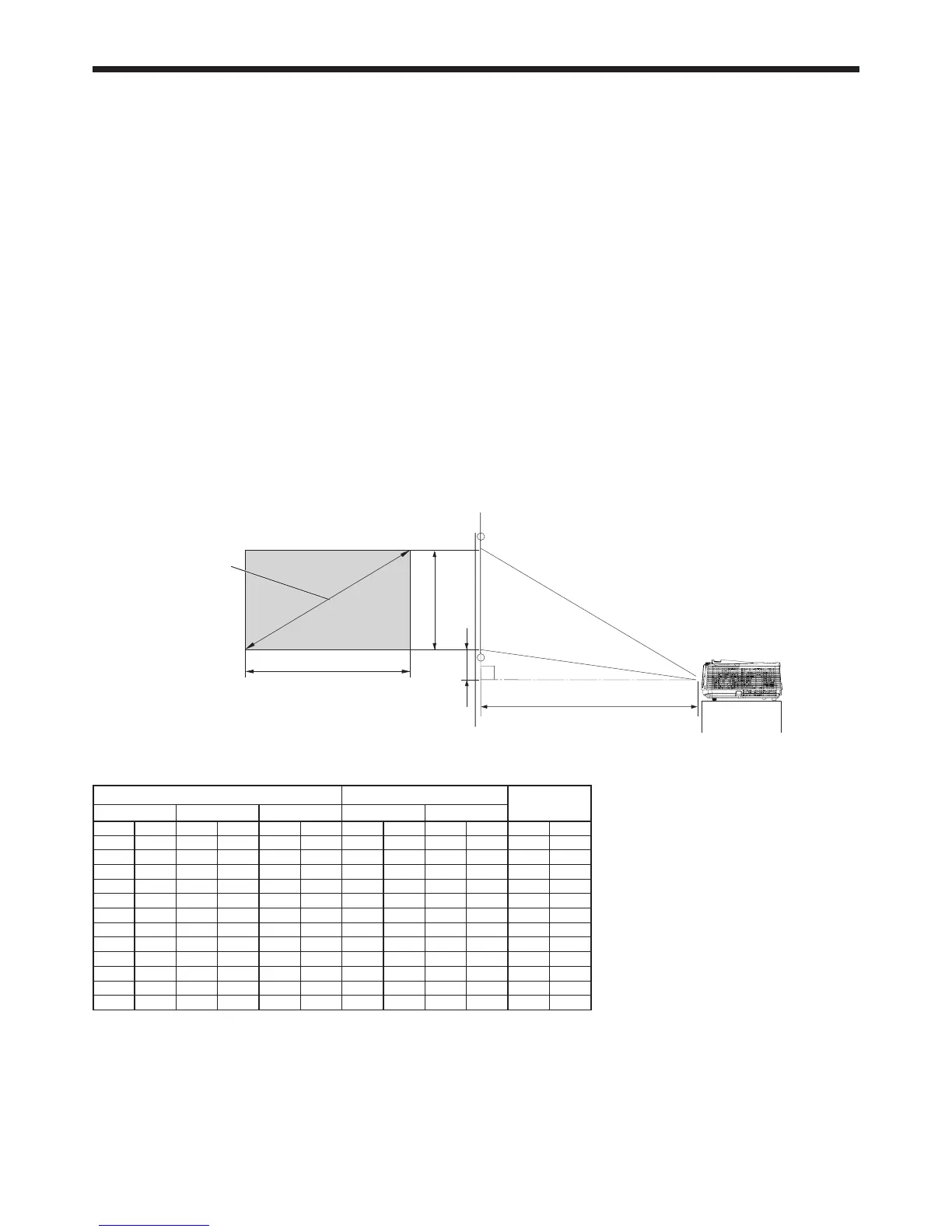

Screen size and projection distance
Refer to the following tables to determine the screen size and projection distance.
The figures in the tables are approximate and may be slightly different from the actual measurements.
When the aspect ratio of the screen is 16:9
Screen size Projection distance (L)
Hd
Diagonal size Height (SH) Width (SW) Shortest (Wide) Longest (Tele)
inch cm inch cm inch cm inch m inch m inch cm
50 127 25 62 44 111 59 1.5 89 2.3 8.2 21
60 152 29 75 52 133 71 1.8 107 2.7 9.9 25
70 178 34 87 61 155 84 2.1 125 3.2 11.5 29
80 203 39 100 70 177 96 2.4 144 3.6 13.2 34
90 229 44 112 78 199 108 2.7 162 4.1 14.8 38
100 254 49 125 87 221 120 3.1 180 4.6 16.5 42
110 279 54 137 96 244 133 3.4 198 5.0 18.1 46
120 305
59 149 105 266 145 3.7 216 5.5 19.8 50
150 381 74 187 131 332 182 4.6 271 6.9 24.7 63
200
508 98 249 174 443 243 6.2 362 9.2 33.0 84
250 635 123 311 218 553 304
7.7 453 11.5 41.2 105
300 762
147 374 261 664 365 9.3 - - 49.5 126
Projection distance changes according to the setting of SCREEN SIZE in the ADVANCED MENU in the IMAGE menu. The table above is in the
case of “16:9.”
Depending on the installation conditions, warm air that is emitted from the exhaust vents may flow into the intake
vent, causing the projector to display “TEMPERATURE!!” and then stop projecting images.
•
•
•
•
•
•
•
•
