Mitsubishi HC3800 User Manual

EN-7
Preparing your projector (continued)

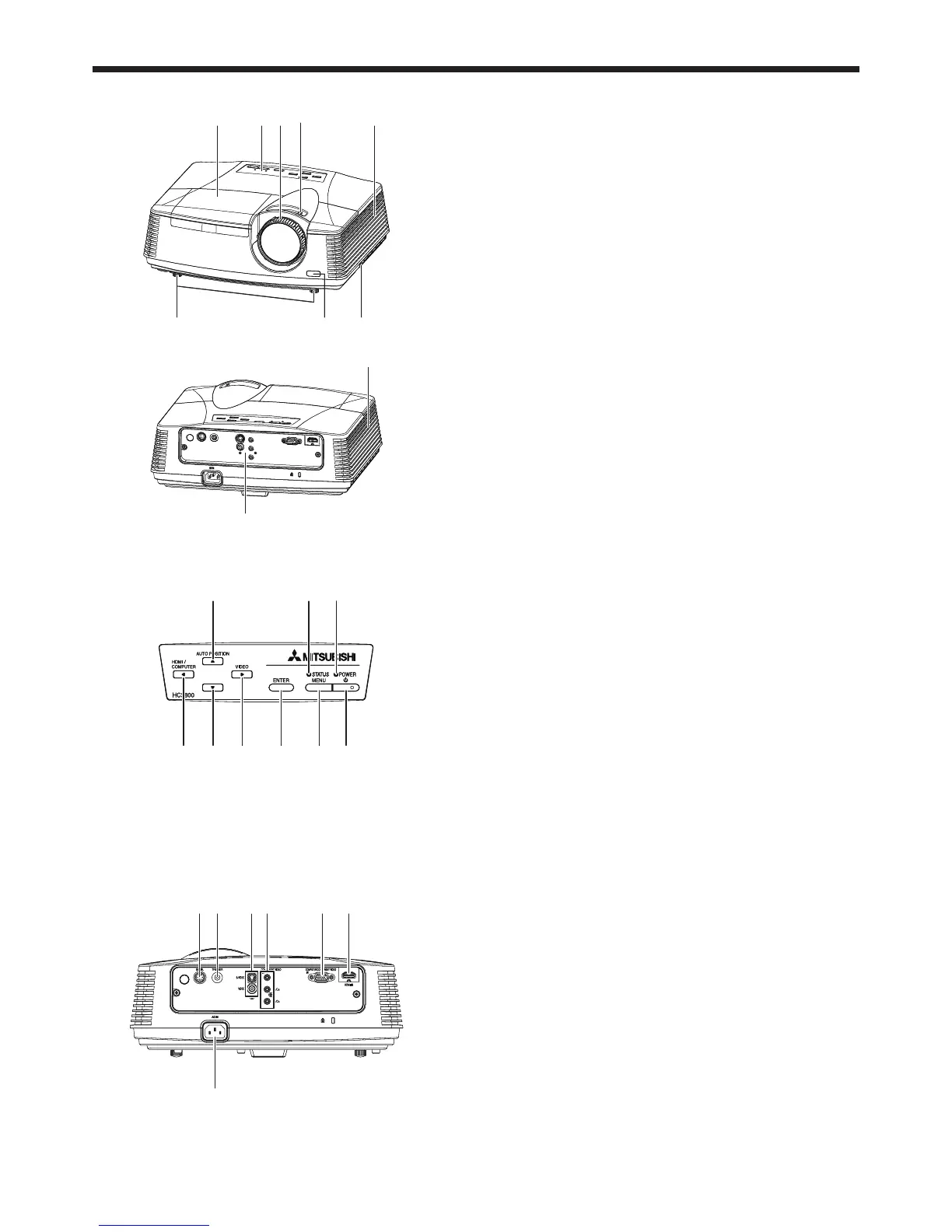

Overview
FOCUS ring
ZOOM ring
Control panel
Air inlet grille
Remote control sensor (Front)
Air outlet grille
Terminal board
Adjustment feet
Lock bar
Lamp cover
Caution:
Do not replace the lamp immediately after using the projector
because the lamp would be extremely hot and it may cause burns.
Control panel
Power button
POWER indicator
MENU button
STATUS indicator
ENTER button
AUTO POSITION / p button
HDMI / COMPUTER / t button
q button
VIDEO/ u button
Important:
While the menu or the screen for the keystone adjustment or
password entry is being displayed, the HDMI / COMPUTER,
VIDEO, and AUTO POSITION buttons function as the t, u,
and p buttons respectively.
Terminal panel
VIDEO IN and S-VIDEO IN terminals
COMPONENT VIDEO IN terminals
COMPUTER IN/COMPONENT VIDEO IN terminal
(Mini D-SUB 15-pin)
HDMI IN terminal (HDMI 19-pin)
SERIAL terminal (Mini DIN 8-pin)
Used for projector control by computer. Contact your
dealer for details.
TRIGGER terminal
Used for the optional electric screen.
Power jack
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
8
9
•
1
2
3
4
5
•
6
•
7
10
8 5
1 23 4
9
10
8 5
1 23 4
9
7
6
7
6
6 4 2
8 9 5 3 17
6 4 2
8 9 5 3 17
5 6 1 2 3 4
7
5 6 1 2 3 4
7

Mitsubishi HC3800 Specifications

General

Native aspect ratio	-
Projection distance	- m
Vertical scan range	50 - 85 Hz
Horizontal scan range	15 - 80 kHz
Projection technology	DLP
Supported aspect ratios	4:3, 16:9
Contrast ratio (typical)	4000:1
Screen size compatibility	50 - 300 \
Projector native resolution	1080p (1920x1080)
Keystone correction, vertical	-15 - 15 °
Focus	Manual
Focal length range	20.6 - 30.1 mm
Lamp power	230 W
Light source type	Lamp
Lamp power (economic mode)	190 W
Service life of light source	5000 h
Noise level	31 dB
Plug and Play	Yes
Dot clock scanning frequency	170 MHz
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Built-in speaker(s)	No
Audio (L/R) in	2
Serial interface type	RS-232
USB 2.0 ports quantity	0
S-Video inputs quantity	1
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	340 W
Placement	Desktop
Product type	Standard throw projector
Product color	Black

Weight and Dimensions

Depth	270 mm
Width	345 mm
Height	129 mm
Weight	3500 g
