Mitsubishi HC3800 User Manual

EN-47

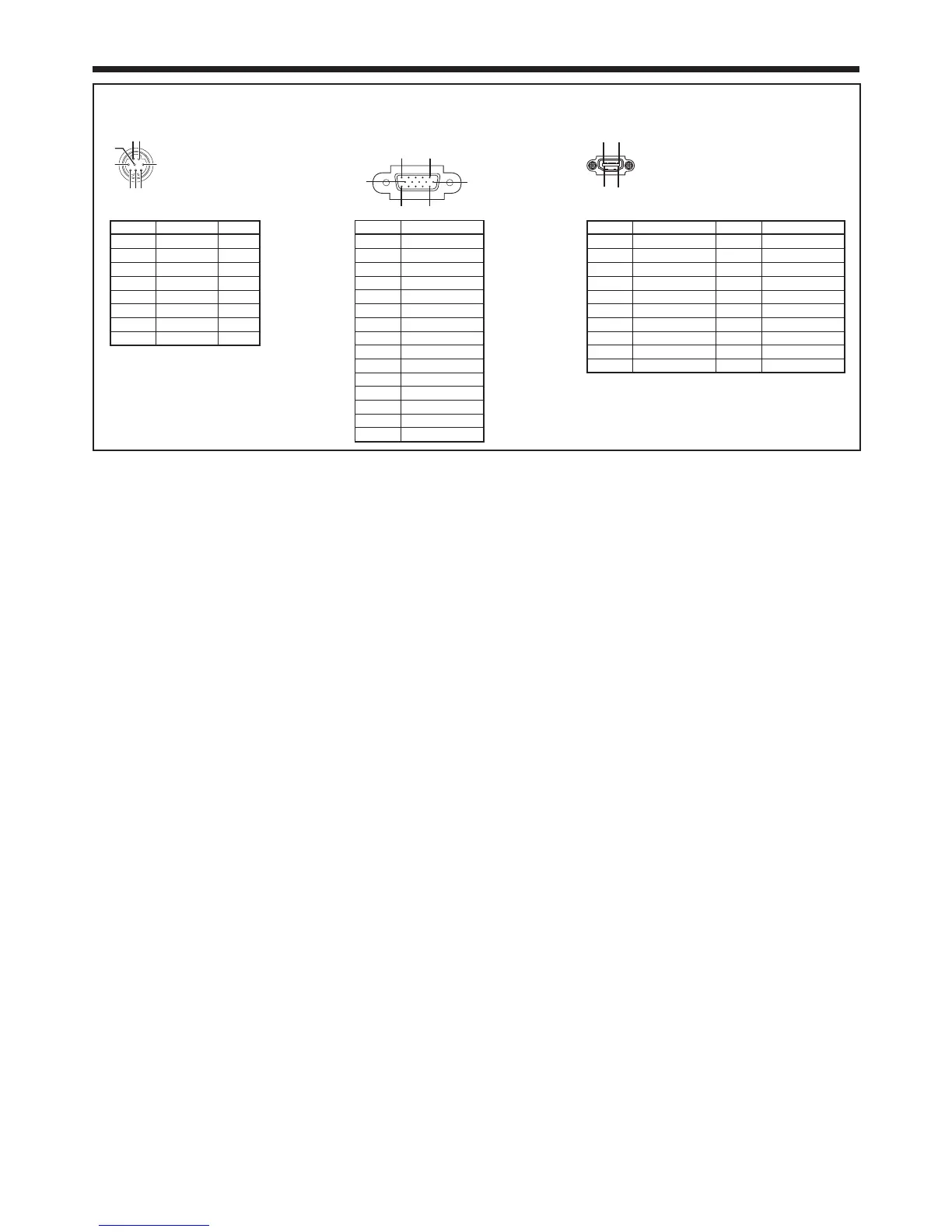

Connectors
SERIAL (Mini DIN 8-pin)
5
3
4
1 2
6 8 7
Pin No. Name I/O
1 TXD IN
2 – –
3 – –
4 GND –
5 – –
6 – –
7 RXD OUT
8 – –
COMPUTER IN/COMPONENT VIDEO IN
(Mini D-SUB 15-pin)
15
11
6
10
15
Pin No. Spec.
1 R(RED)/P
R
/C
R
2 G(GREEN)/Y
3 B(BLUE)/P
B
/C
B
4 GND
5 GND
6 GND
7 GND
8 GND
9 DDC 5V
10 GND
11 GND
12
DDC Data
13
HD/CS
14 VD
15 DDC Clock
HDMI IN (HDMI 19-pin)
19
1
2
18
PIN No. Spec. PIN No. Spec.
1 TMDS Data2+ 11 TMDS Clock Shield
2 TMDS Data2 Shield 12 TMDS Clock-
3 TMDS Data2- 13 CEC
4 TMDS Data1+ 14 –
5 TMDS Data1 Shield 15 SCL
6 TMDS Data1- 16 SDA
7 TMDS Data0+ 17 DDC Ground
8 TMDS Data0 Shield 18 +5 V Power
9 TMDS Data0- 19 Hot Plug Detect
10 TMDS Clock+
Replacement part (option/not included in the box)
Spare lamp VLT-HC3800LP
Specifications (continued)

Mitsubishi HC3800 Specifications

General

Native aspect ratio	-
Projection distance	- m
Vertical scan range	50 - 85 Hz
Horizontal scan range	15 - 80 kHz
Projection technology	DLP
Supported aspect ratios	4:3, 16:9
Contrast ratio (typical)	4000:1
Screen size compatibility	50 - 300 \
Projector native resolution	1080p (1920x1080)
Keystone correction, vertical	-15 - 15 °
Focus	Manual
Focal length range	20.6 - 30.1 mm
Lamp power	230 W
Light source type	Lamp
Lamp power (economic mode)	190 W
Service life of light source	5000 h
Noise level	31 dB
Plug and Play	Yes
Dot clock scanning frequency	170 MHz
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Built-in speaker(s)	No
Audio (L/R) in	2
Serial interface type	RS-232
USB 2.0 ports quantity	0
S-Video inputs quantity	1
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	340 W
Placement	Desktop
Product type	Standard throw projector
Product color	Black

Weight and Dimensions

Depth	270 mm
Width	345 mm
Height	129 mm
Weight	3500 g
