WARNING
l
A high voltage is present in the power cir-
cuit and in the bulbs and bulb terminals.
To avoid the risk of an electric shock, con-
tact a MITSUBISHI MOTORS Author-
ized Service Point whenever repair or re-
placement is necessary.
Bending lamps (Adaptive Front light-
ing System (AFS))
E01008800262

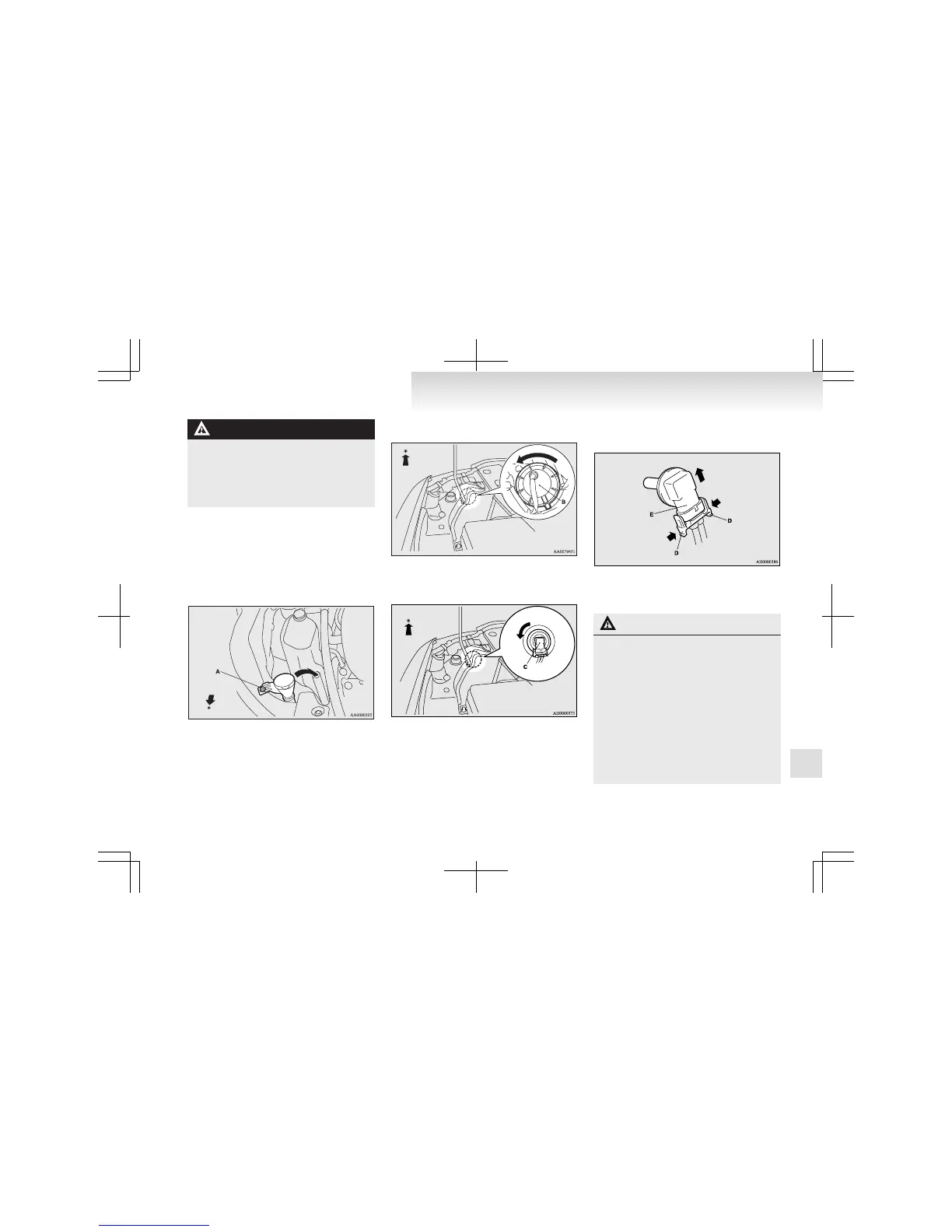

1. When
replacing the bulb on the right side of
the vehicle, remove the bolt (A) holding
down the headlamps washer tank spout and
move the spout towards the rear of the vehicle.
*: Front of the vehicle
2. Turn the cap (B) anticlockwise to remove it.
*: Front of the vehicle
3. Turn the bulb (C) anticlockwise to remove it.
*: Front of the vehicle
4. While pressing the tab (D), remove the bulb
(E).
5. To
install the bulb, perform the removal
steps in reverse.
CAUTION
l
Handle
halogen lamp bulbs with care.
The gas inside halogen lamp bulbs is high-
ly pressurized, so dropping, knocking, or
scratching a halogen lamp bulb can cause
it to shatter.
l
Never hold the halogen lamp bulb with a
bare hand, dirty glove, etc.
The oil from your hand could cause the
bulb to break the next time the bending
lamps (Adaptive Front lighting System
(AFS)) are operated.
If the glass surface is dirty, it must be
cleaned with alcohol, paint thinner, etc.,
and refit it after drying it thoroughly.
Maintenance
8-23
8
