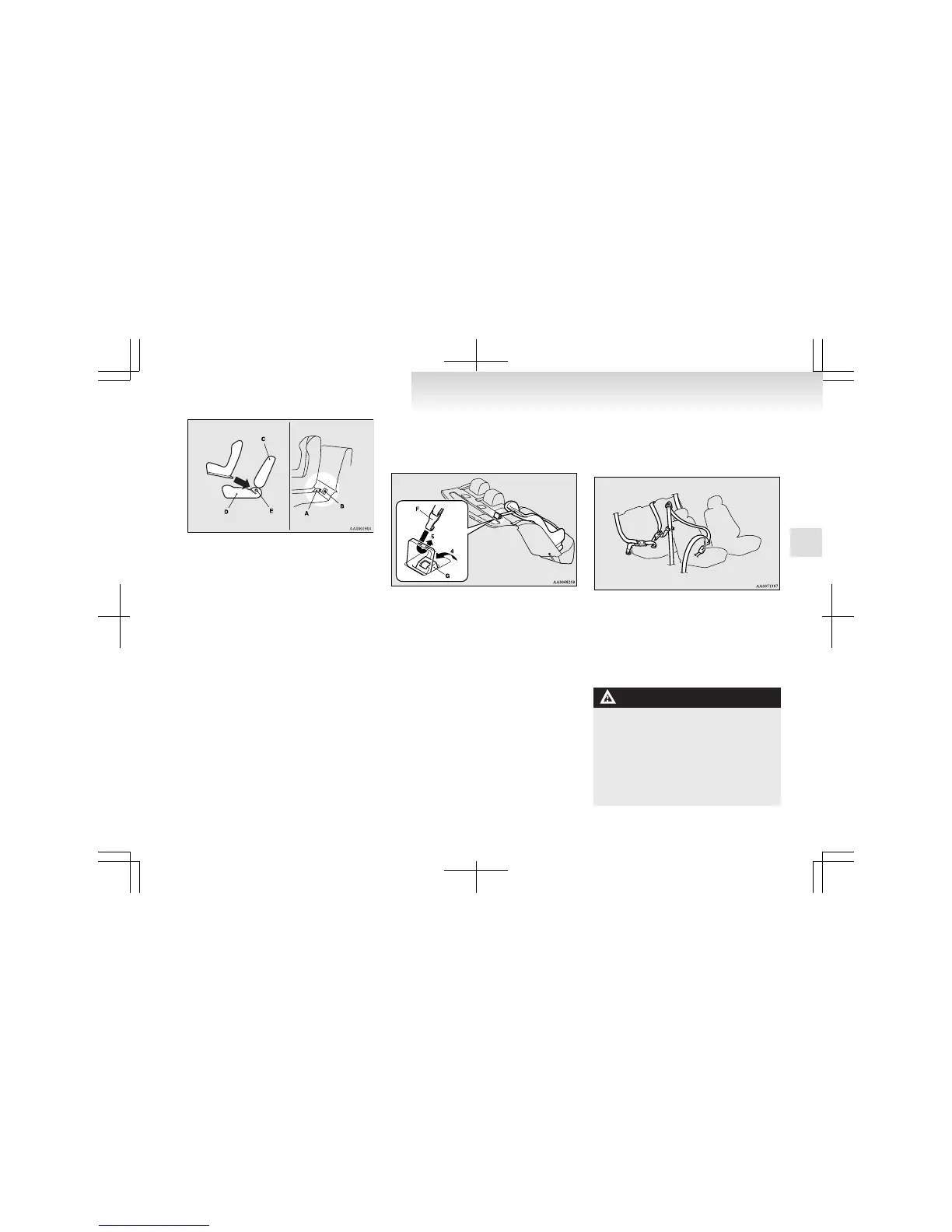

A- Connector
B-
Slit
C- Vehicle seatback
D- Vehicle seat cushion
E- Lower anchorage
If your child restraint system requires the use
of a tether strap, fasten the tether strap in ac-
cordance with steps 3 through 5.
3. Remove the head restraint from the location
in which you wish to install a child restraint.
4. Open the cover from the tether anchorage in-
stallation point by pulling it back with your
hand as illustrated.
5. Latch
the top tether strap hook (F) of the
child restraint system to the tether anchorage
bracket (G) and tighten the top tether strap so
that it is securely fastened.
6. Push
and pull the child restraint system in all
directions to be sure it is firmly secured.
To remove
Remove the child restraint in accordance with the
instructions provided by the child restraint sys-
tem’s manufacturer.
Installing a child restraint system to a
3-point type seat belt (with emergency
locking mechanism)
E00407100409
Installation:
1. Fasten the seat belt to secure the child re-
straint system. Make sure you hear a “click”
when you insert the latch plate in the buckle.
2. Remove all slack by using the locking clip.
3. Push and pull the child restraint in all direc-
tions to be sure it is secure.
WARNING
l
For
some type of child restraint, the lock-
ing clip (A) should be used to help avoid
personal injury during a collision or sud-
den manoeuvre.
It must be fitted and used in accordance
with the child restraint manufacturer’s in-
structions.
The locking clip must be removed when
the child restraint is removed.
Seat and seat belts
2-17
2
