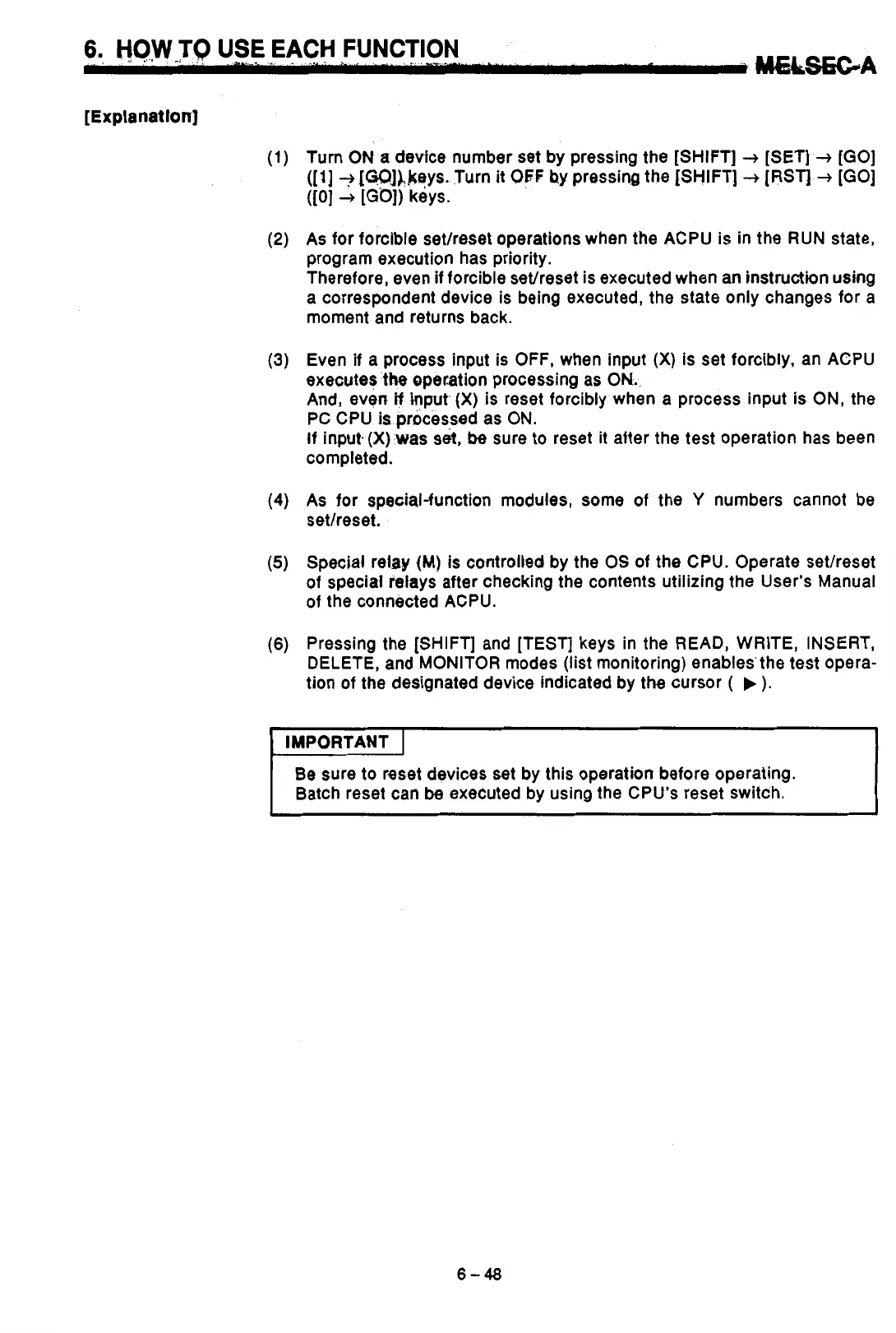

6.
HOW7T0
USE
..
.
EACH
.....-.
-.,
FUNCTION
,
..
[Explanatton]
(1)
Turn
ON
a
device number set by pressing the [SHIFT]
+
[SET]
+
[GO]
([l]
+
IWJ)$eys. ,Turn it
OFF
by pressing the [SHIFT]
+
[RST]
+
[GO]
((01
[GO])
keys.
(2)
As for forcible setheset operations when the ACPU is in the RUN state,
program execution has priority.
Therefore, even
if
forcible setheset is executed when
an
instruction using
a correspondent device is being executed, the state only changes for a
moment and returns back.
(3)
Even
if
a process input is OFF, when input
(X)
is set forcibly, an ACPU
executes.the operation processing as
ON.,
And, even
if
input-
(X)
is reset forcibly when a process input is ON, the
PC CPU
is
prbcessed as
ON.
If
input(X)lwas
set,
be
sure to reset
it
after the test operation has been
completed.
(4)
As for special-function modules, some of the
Y
numbers cannot be
setheset.
f
(5)
Special relay
(M)
is controlled by the
OS
of the CPU. Operate setheset
I
of
special relays after checking the contents utilizing the User's Manual
i
of the connected ACPU.
i
%4
i
(6)
Pressing the [SHIFT] and [TEST] keys in the READ, WRITE, INSERT,
DELETE, and MONITOR modes (list monitoring) enables'the test opera-
tion of the designated device indicated by the cursor
(
b
).
#
V
1
IMPORTANT
I
,
1
?
Be
sure to reset devices set by this operation before operating.
c
Batch reset can
be
executed by using the CPU's reset switch.
I
\,
f
6-48
