Rear-view camera (if so equipped)
Features and controls 5-61
The rear-view camera uses a wide-angle
lens. As a result, images and distances shown
on the screen are not exact.
Actual distance may be different from dis-
tance indicated by the lines on the screen,
depending on the loading condition of the
vehicle and road surface condition.
The reference lines for distance and vehicle
width are based on a level, flat road surface.

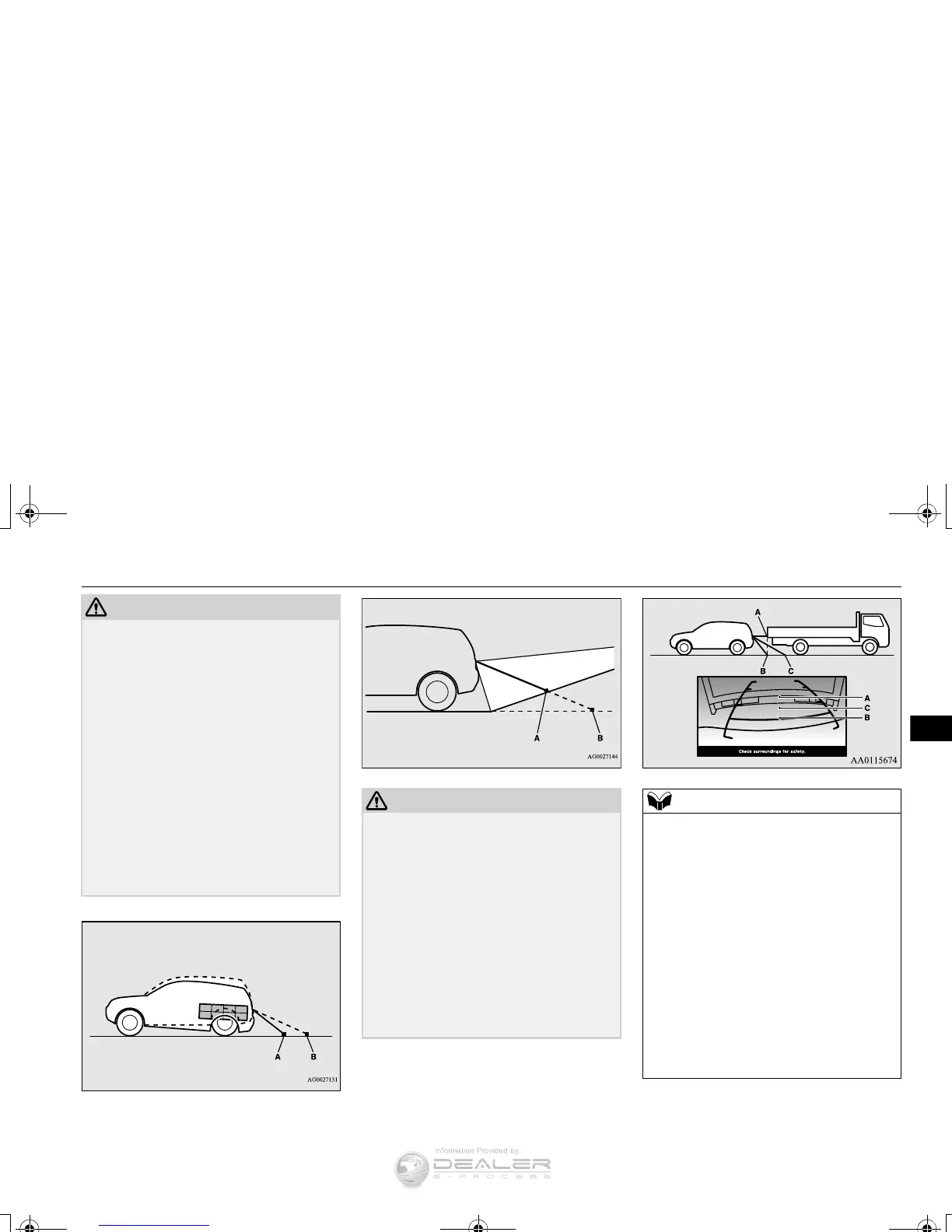

In the following cases, objects shown on the
screen will appear to be farther off than they
actually are.
• When the rear of the vehicle is weighed
down with the weight of passengers and
luggage in the vehicle. (Case 1)
• When there is an upward slope at the back.
(Case 2)
Case 1
A- Actual objects
B- Objects shown on the screen
The reference lines for distance and vehicle
width are intended to indicate the distance to
a flat object such as a level, flat road surface.
They may not indicate correct distance
depending on the shape of an obstacle.
For example, when there is an object behind
the vehicle that has upper sections projecting
in the direction of the vehicle, the reference
lines on the screen will indicate that point A
is the farthest point and point B is the closest
point to the vehicle. In reality, point A and B
are actually the same distance from the vehi-
cle, and point C is farther off than point A
and B.
Case 2
A- Actual objects
B- Objects shown on the screen
Mirror image is displayed on the screen.
Monitor brightness is adjusted automatically
by sensors.
It is possible to change the display language
of the screen.
For details, please refer to the separated
owner’s manual for “Mitsubishi Multi Enter-
tainment System”.
Under certain circumstances, it may become
difficult to see an image on the screen, even
when the system is functioning correctly.
• In a dark area, such as at night.
• When water drops or condensation are on
the lens.
• When sun light or headlights shine directly
into the lens.
