N00940200090

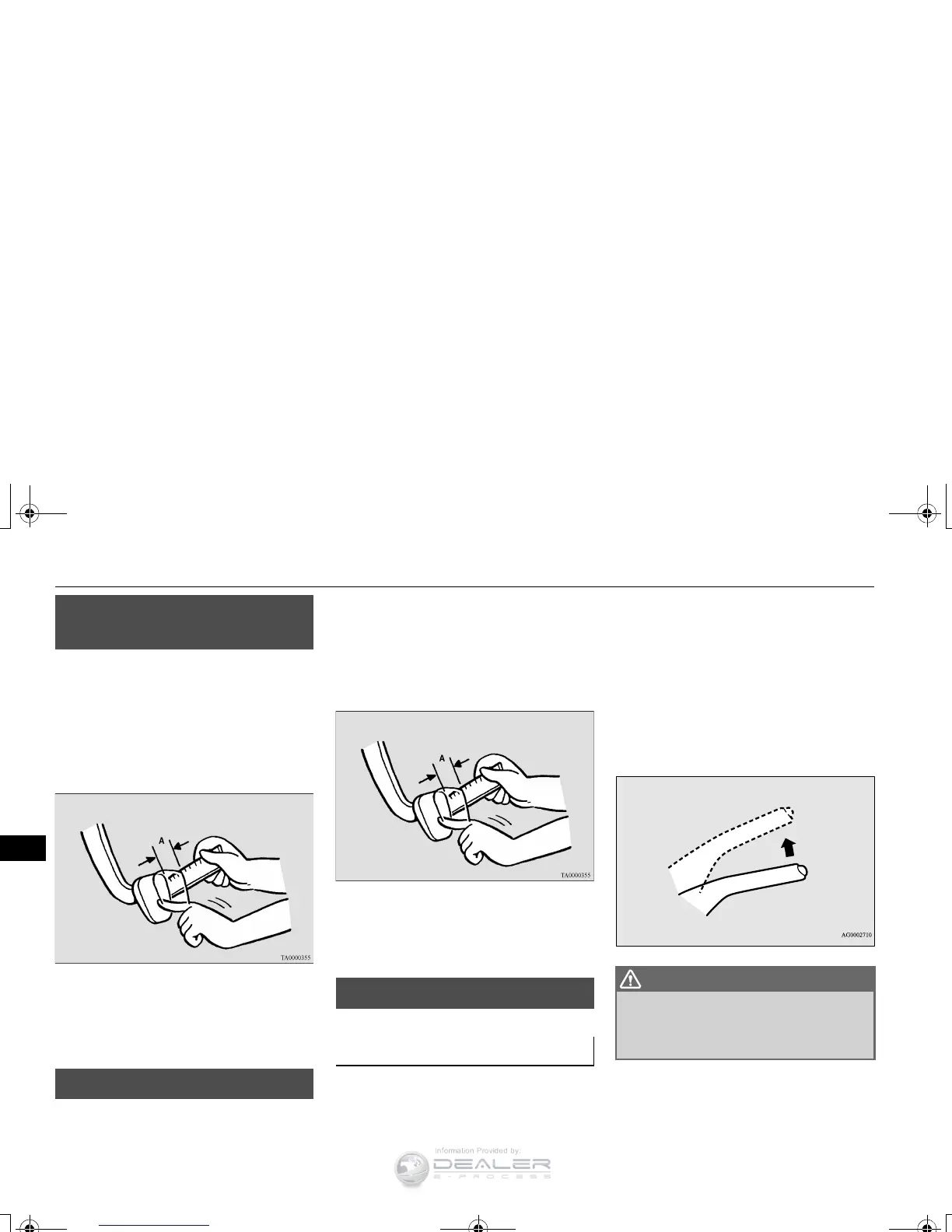

To check the clutch pedal free play (A), turn
off the engine and press the pedal until you
feel resistance.
Clutch pedal free play:
.4 to .6 inch (11 to 16 mm)
If the free play is not within these limits, take
your vehicle to an authorized Mitsubishi
Motors dealer or a repair facility of your
choice for adjustment.
N00940300336
To check the brake pedal free play (A), turn
off the engine and press the brake pedal sev-
eral times with your foot. Then press the
pedal down with your fingers until you first
feel resistance.
Brake pedal free play:
.1 to .3 inch (3 to 8 mm)
If the free play is not within these limits, take
your vehicle to an authorized Mitsubishi
Motors dealer or a repair facility of your
choice for adjustment.
N00940400252
Check the parking brake lever travel occa-
sionally. To check this, pull the lever up
slowly and count the number of clicks of the
ratchet.
Parking brake lever stroke:
7 to 9 notches (clicks)
(Parking brake adjustment when pulled with
the force of 200 N)
Also check to see if the lever stays gripped by
the ratchet after pulling.
Clutch pedal free play (if so
equipped)
Brake pedal free play
Parking brake
Parking brake lever stroke
Continued operation of the vehicle with
the parking brake lever out of adjustment
may result in the vehicle moving when
unattended.
