15 A: Cigarette lighter
When using a substitute fuse, replace with a
fuse of the correct capacity as soon as possi-
ble.
N00954900131

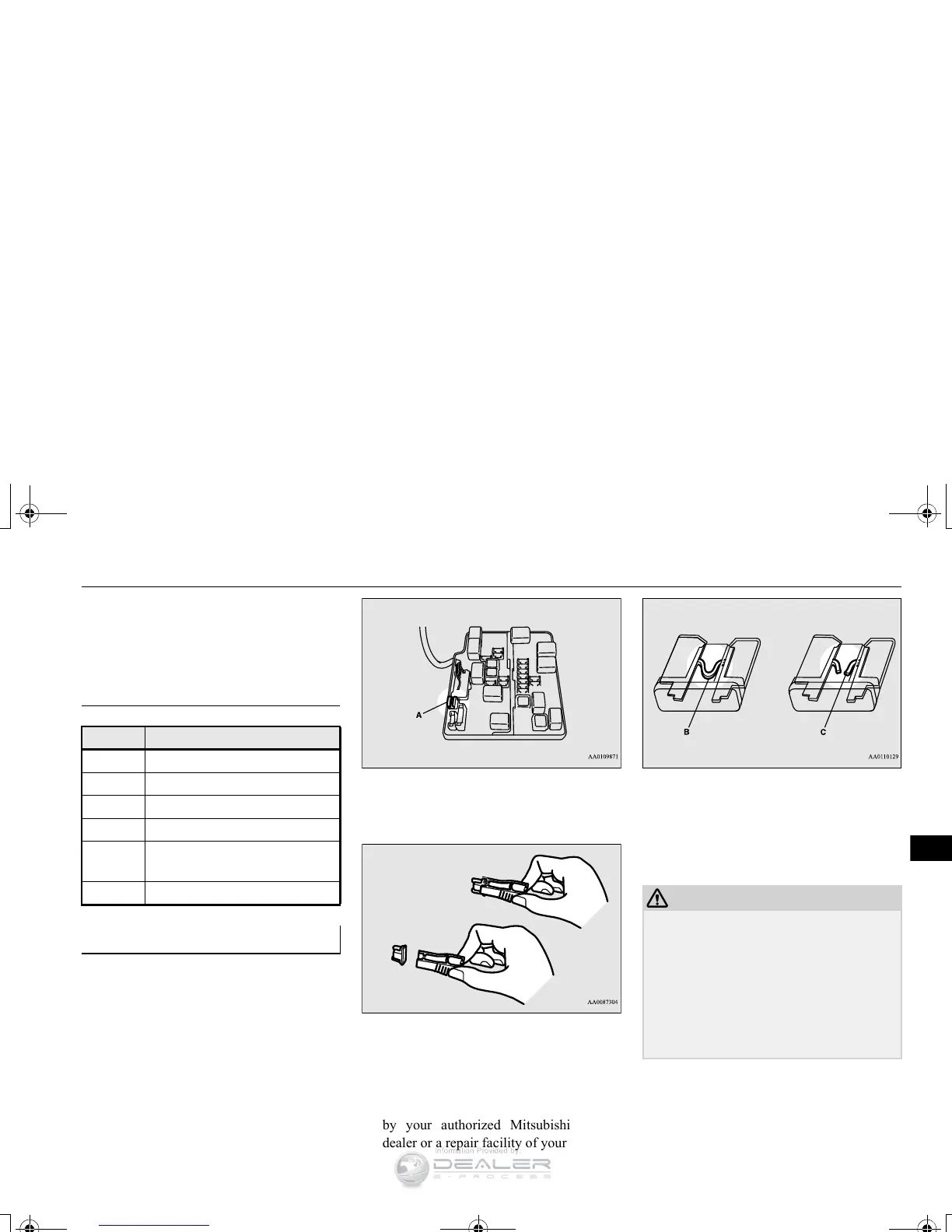

1. Before replacing a fuse, always turn off
the electrical item concerned to the fuse
and turn the ignition switch to the “OFF”
position or put the operation mode in
OFF.
2. There is a fuse remover (A) in the engine
compartment fuse block.
3. Clamp it on the fuse you wish to remove,
and pull the fuse straight out from the fuse
block.
4. Use the fuse location diagrams and the
matching tables, to check the fuse that is
related to the problem. If the fuse is not
blown, something else must be causing
the problem. Have the system inspected
by your authorized Mitsubishi Motors
dealer or a repair facility of your choice.
5. Insert a new fuse of the same capacity
securely into the appropriate slot.
Identification of fuse
Capacity Color
7.5 A Brown
10 A Red
15 A Blue
20 A Yellow
30 A
Green (fuse type) /Pink (fusible
link type)
40 A Green (fusible link type)
Fuse replacement
B- Fuse is OK
C- Blown fuse
Never use a fuse with a capacity greater than
the one listed or any substitute, such as wire,
foil etc. This would cause the circuit wiring
to heat up and could cause a fire.
If the replacement fuse blows again after a
short time, have the electrical system
checked by an authorized Mitsubishi Motors
dealer or a repair facility of your choice to
find and correct the cause.
