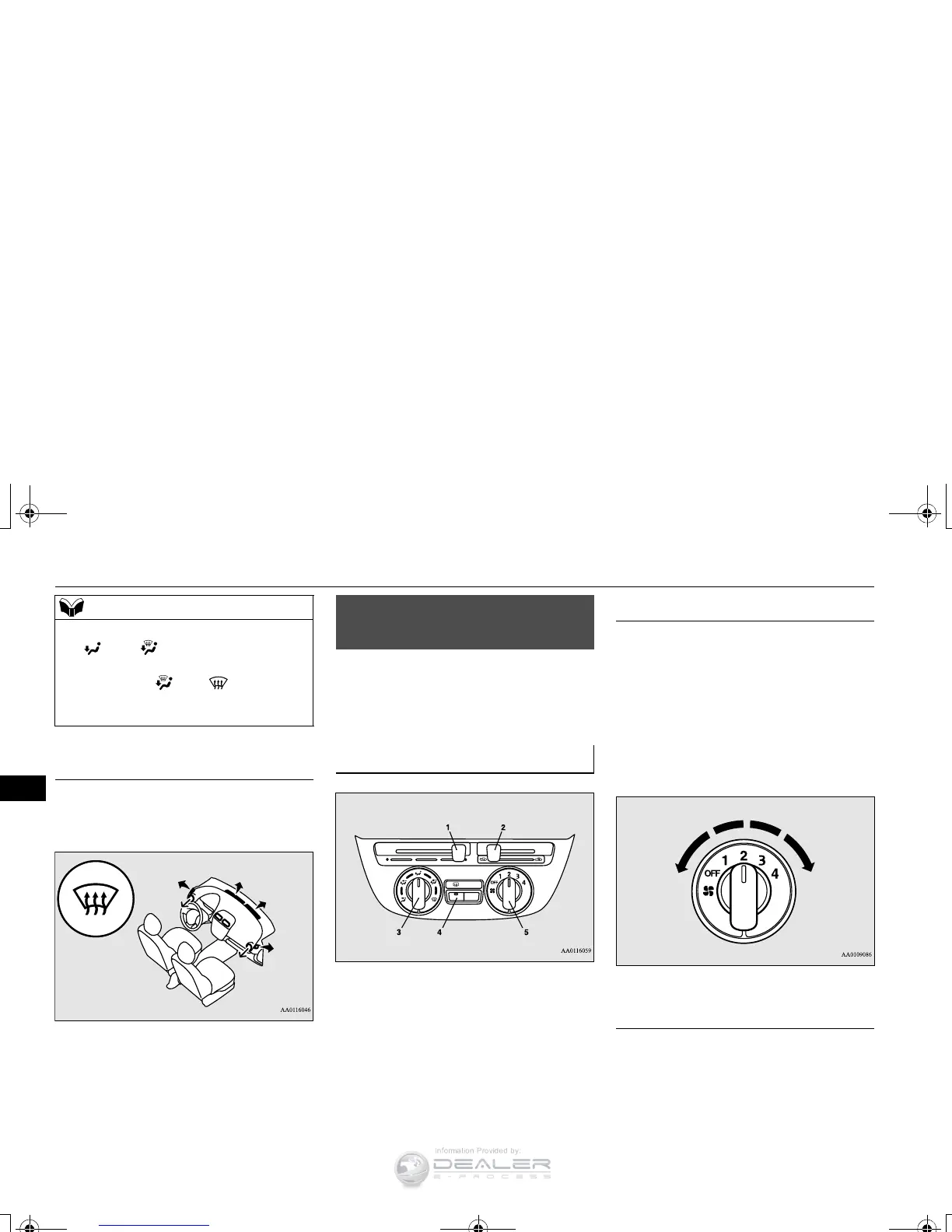

Heater without air conditioning function (if so equipped)
7-4 Comfort controls
Air flows mainly to the windshield and the
door windows.
N00737700031
The heater can only be used while the engine
is running.
N00737800032
N00737900033
When the ignition switch is in the “ON” posi-
tion, select the blower speed by turning the
blower speed selection dial.
Turning the dial clockwise will increase the
blower speed; turning the dial counterclock-
wise will decrease it. When the dial is set to
the “OFF” position, all fan-driven airflow
will stop.
N00738000057
The temperature control lever is used to select
the desired air temperature.
With the mode selection dial between the
“ ” and “ ” positions, air flows mainly
to the leg area. With the mode selection dial
between the “ ”and “ ” positions, air
flows mainly to the windshield and the door
windows.
Defroster position
Heater without air condi-
tioning function
(if so equipped)
Control panel
1- Temperature control lever
2- Air selection lever
3- Mode selection dial
4- Electric rear window defogger switch
P. 5-80
5- Blower speed selection dial
Blower speed selection dial
Temperature control lever
BK0212400US.book 4 ページ ２０１４年４月１日 火曜日 午後２時２１分
