4. Turn the bulb (E) counterclockwise to
remove it.
5. To install the bulb, perform the removal
steps in reverse.
N00943700490

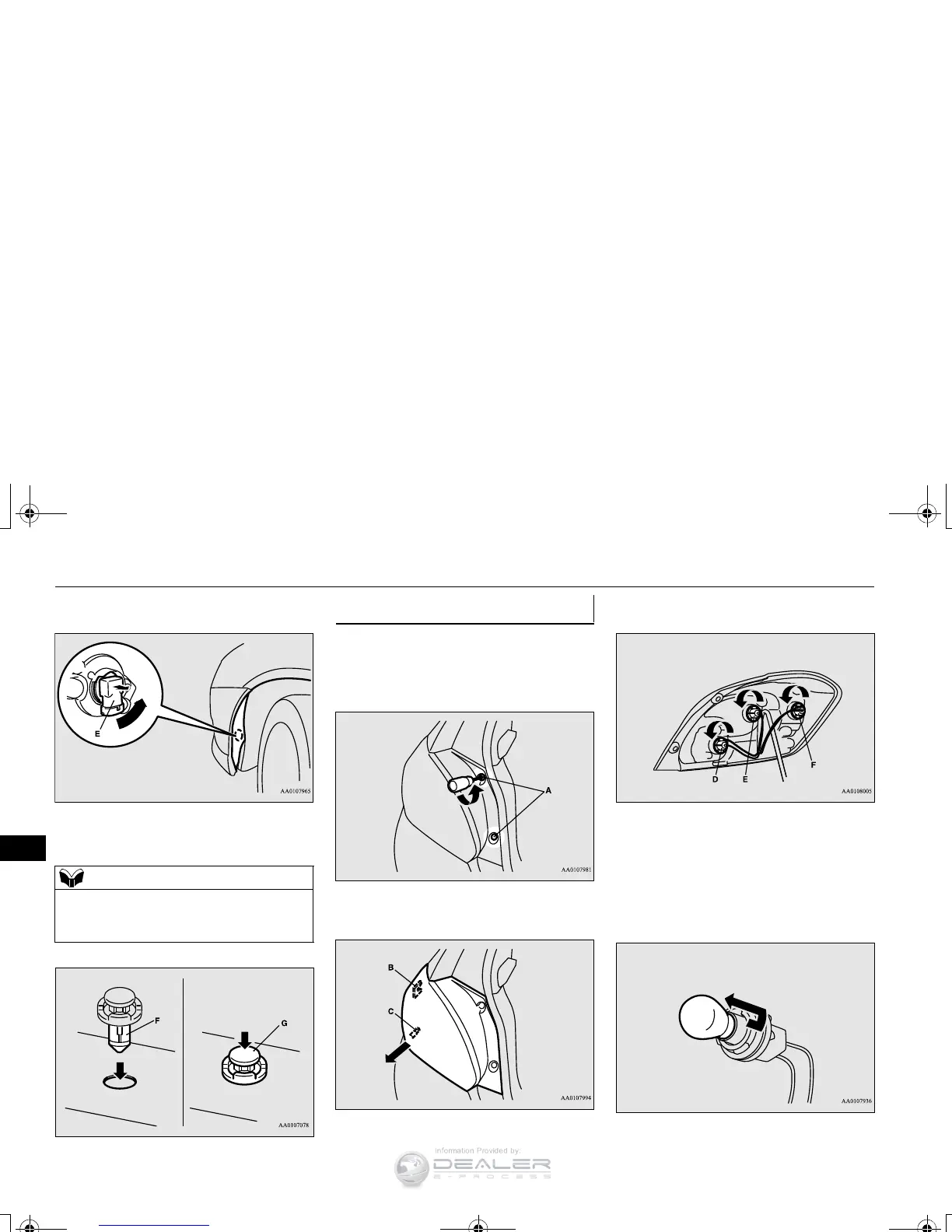

1. Open the liftgate.
(Refer to “Liftgate” on page 5-27.)
2. Remove the screws (A) that hold the light
unit.
3. Move the light unit toward the rear of the
vehicle to unfix the notch (B) and pin (C).
4. Turn the socket counterclockwise to
remove it.
5. Remove the bulb from the socket by turn-
ing it counterclockwise while pressing in.
When refitting each of the clips, first insert
part (F) of the clip into the hole and then
press part (G) into it.
Rear combination lights
D- Back-up light
E- Rear turn signal light
F- Rear side-marker light, and tail and
stop light
