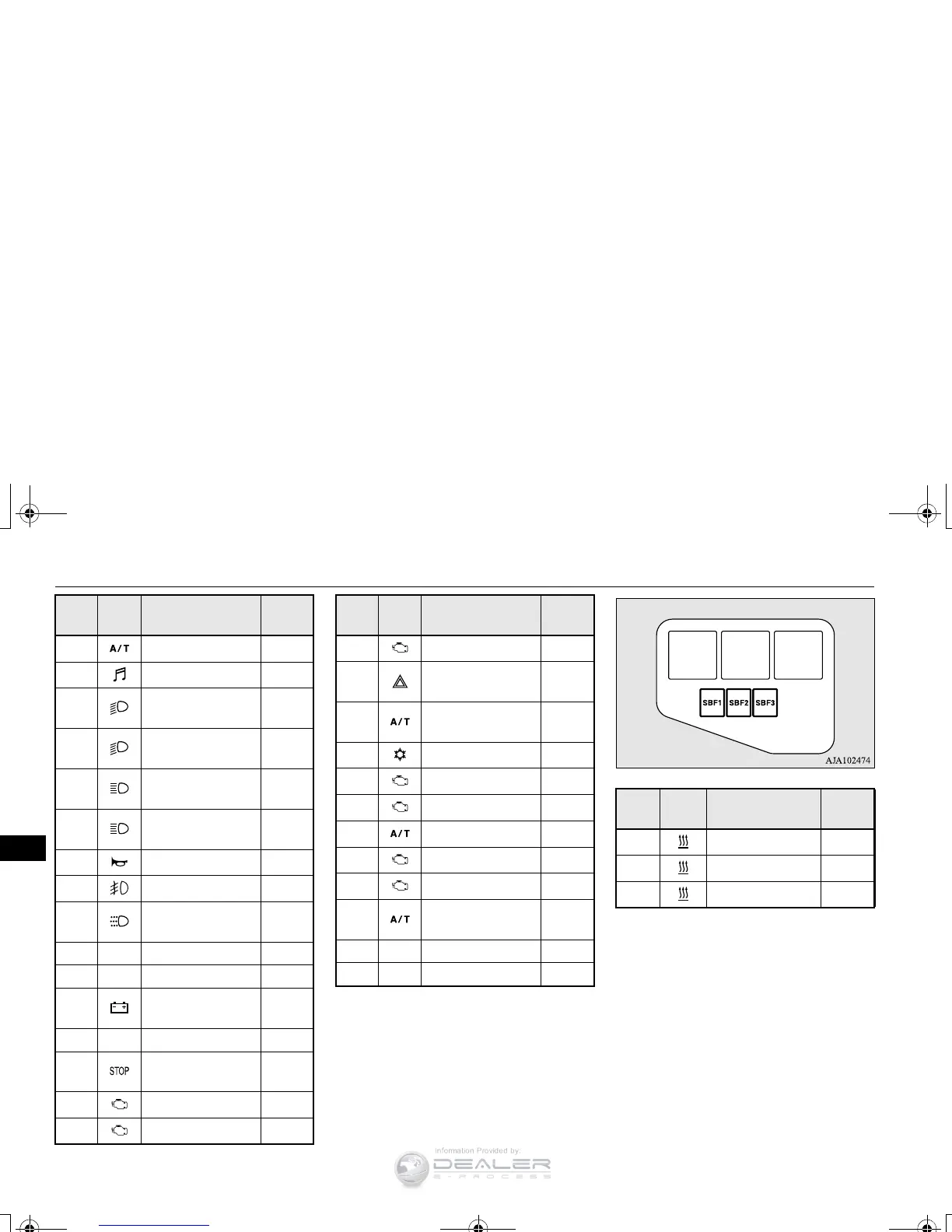

Fuses
9-24 Vehicle care and maintenance
9
*: Fusible link
 Some fuses may not be installed on your
vehicle, depending on the vehicle model
or specifications.
 The table above shows the main equip-
ment corresponding to each fuse.
*: Fusible link
 Some fuses may not be installed on your
vehicle, depending on the vehicle model
or specifications.
 The table above shows the main equip-
ment corresponding to each fuse.
The fuse block does not contain spare 7.5 A,
10 A or 15 A fuses. If one of these fuses
burns out, substitute with the following fuse.
7.5 A: Outside rearview mirrors
10 A: Option
BF1 DC-DC (P/T) 30 A
BF2 DC-DC (AUDIO) 30 A
F1
Headlight (low
beam) (left)
10 A
F2
Headlight (low
beam) (right)
10 A
F3
Headlight (high
beam) (left)
10 A
F4
Headlight (high
beam) (right)
10 A
F5 Horn 10 A
F6 Front fog lights 15 A
F7
Daytime running
lights
10 A
F8 — — —
F9 — — —
F10
Battery current
sensor
7.5 A
F11 — — —
F12
Stop lights (Brake
lights)
15 A
F13 Ignition coil 7.5 A
F14 Engine control 7.5 A
No.
Sym-
bol
Electrical system
Capac-
ity
F15 Alternator 7.5 A
F16
Hazard warning
flasher
10 A
F17
Automatic trans-
axle
15 A
F18 Air conditioning 10 A
F19 ETV 15 A
F20 Starter 7.5 A
F21 CVT oil/pump 15 A
F22 Fuel pump 15 A
F23 Engine 20 A
F24
Automatic trans-
axle
7.5 A
#1 — Spare fuse 20 A
#2 — Spare fuse 30 A
No.
Sym-
bol
Electrical system
Capac-
ity
No.
Sym-
bol
Electrical system
Capac-
ity
SBF1 PTC heater 40 A*
SBF2 PTC heater 40 A*
SBF3 PTC heater 40 A*
Type B
