Some fuses may not be installed on your
vehicle, depending on the vehicle model
or specifications.
The table above shows the main equip-
ment corresponding to each fuse.

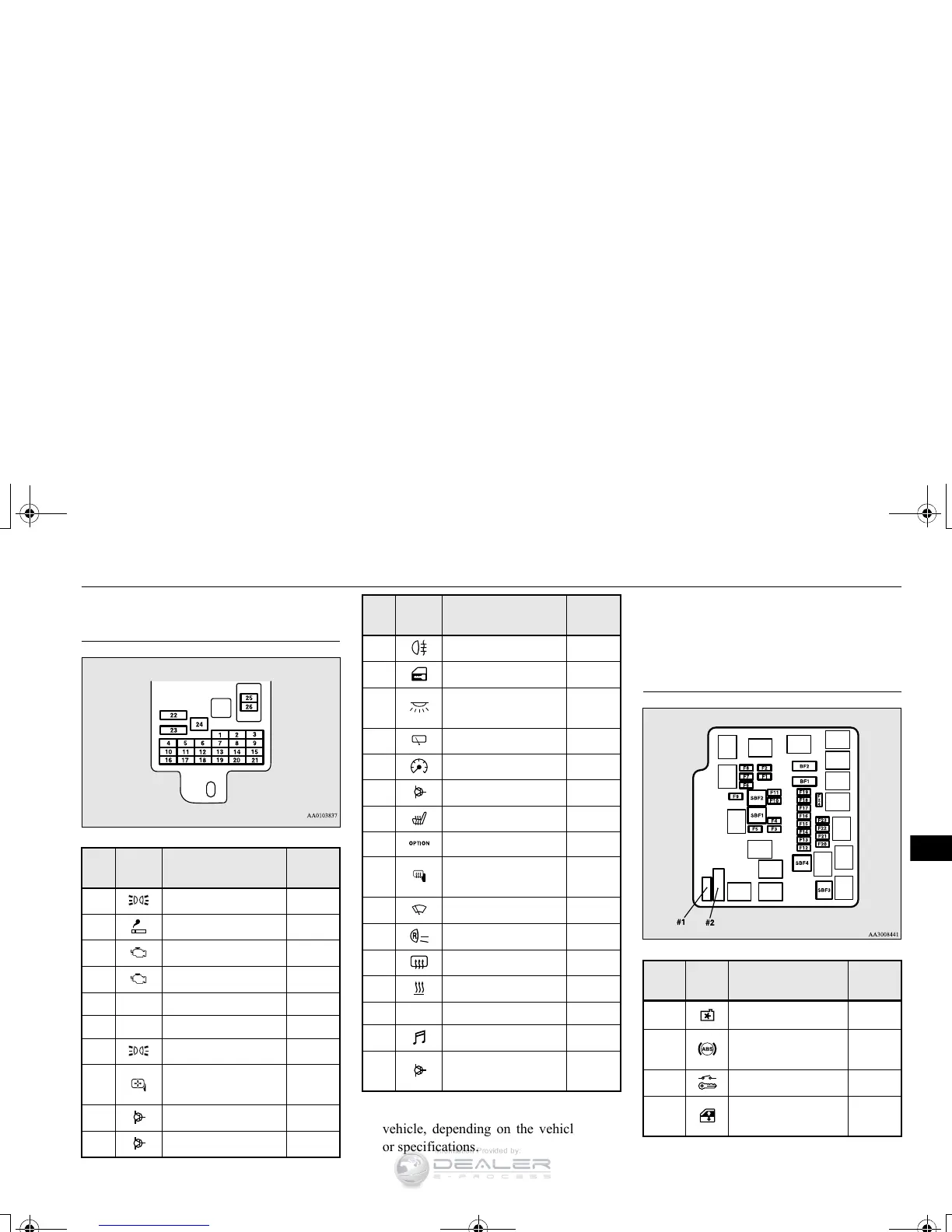

Passenger compartment fuse loca-
tion table
No.
Sym-
bol
Electrical system
Capac-
ity
1 Tail light (left) 7.5 A
2 Cigarette lighter 15 A
3 Ignition coil 10 A
4 Starter motor 7.5 A
5— — —
6— — —
7 Tail light (right) 7.5 A
8
Outside rearview
mirrors
7.5 A
9 Engine control unit 7.5 A
10 Control unit 7.5 A
11 Rear fog light 10 A
12 Door lock 15 A
13
Interior light (Dome
light)
15 A
14 Rear window wiper 15 A
15 Gauges 7.5 A
16 Relay 7.5 A
17 Heated seats 20 A
18 Option 10 A
19
Heated outside rear-
view mirrors
7.5 A
20 Windshield wiper 20 A
21 Back-up light 7.5 A
22 Defogger 30 A
23 Heater 30 A
24 — — —
25 Radio 10 A
26
Electronic con-
trolled unit
15 A
No.
Sym-
bol
Electrical system
Capac-
ity
Engine compartment fuse location
table
No.
Sym-
bol
Electrical system
Capac-
ity
SBF1 Radiator fan motor 40 A*
SBF2
Anti-lock braking
system
30 A*
SBF3 Ignition switch 40 A*
SBF4
Power window
control
40 A*
To Next Page
