4 - 26 4 - 26
MELSEC-Q
4 SETUP AND PROCEDURES BEFORE STARTING THE OPERATION
4.10.2 Setup confirmation test
The switch settings of the network module can be checked with this test.
The following three types of items can be checked:
1) Control station duplicate check
Not performed on remote I/O network.
2) Station number duplicate check
3) Matching between the network number set for the station to which GX
Developer is connected and the network number set with a network
parameter of the host

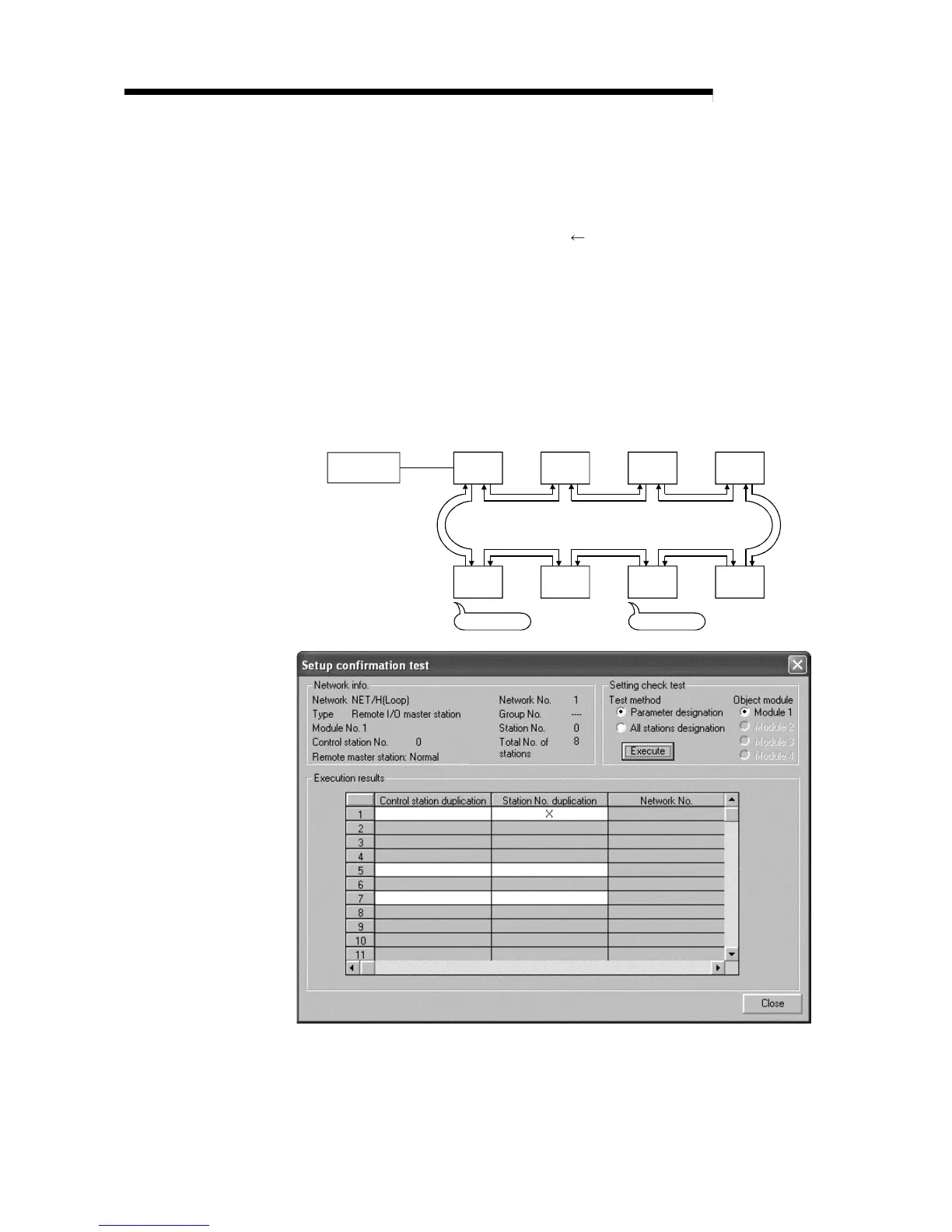

For example, in the following system, when the Setup confirmation test is conducted
by the GX Developer connected to remote master station, the monitor screen shown
below is displayed and the setting status of each station can be checked.
Station 1 is indicating that there is a duplication in station number settings.
Station
No. 0
(Parameter settings)
Remote master station
Reserved station Reserved station
Network No. 1
Duplicate error
Station
No. 2
Station
No. 3
Station
No. 4
Station
No. 1
Station
No. 7
Station
No. 1
Station
No. 5
Duplicate error
GX Developer
