5 - 11 5 - 11
MELSEC-Q
5 PARAMETER SETTINGS

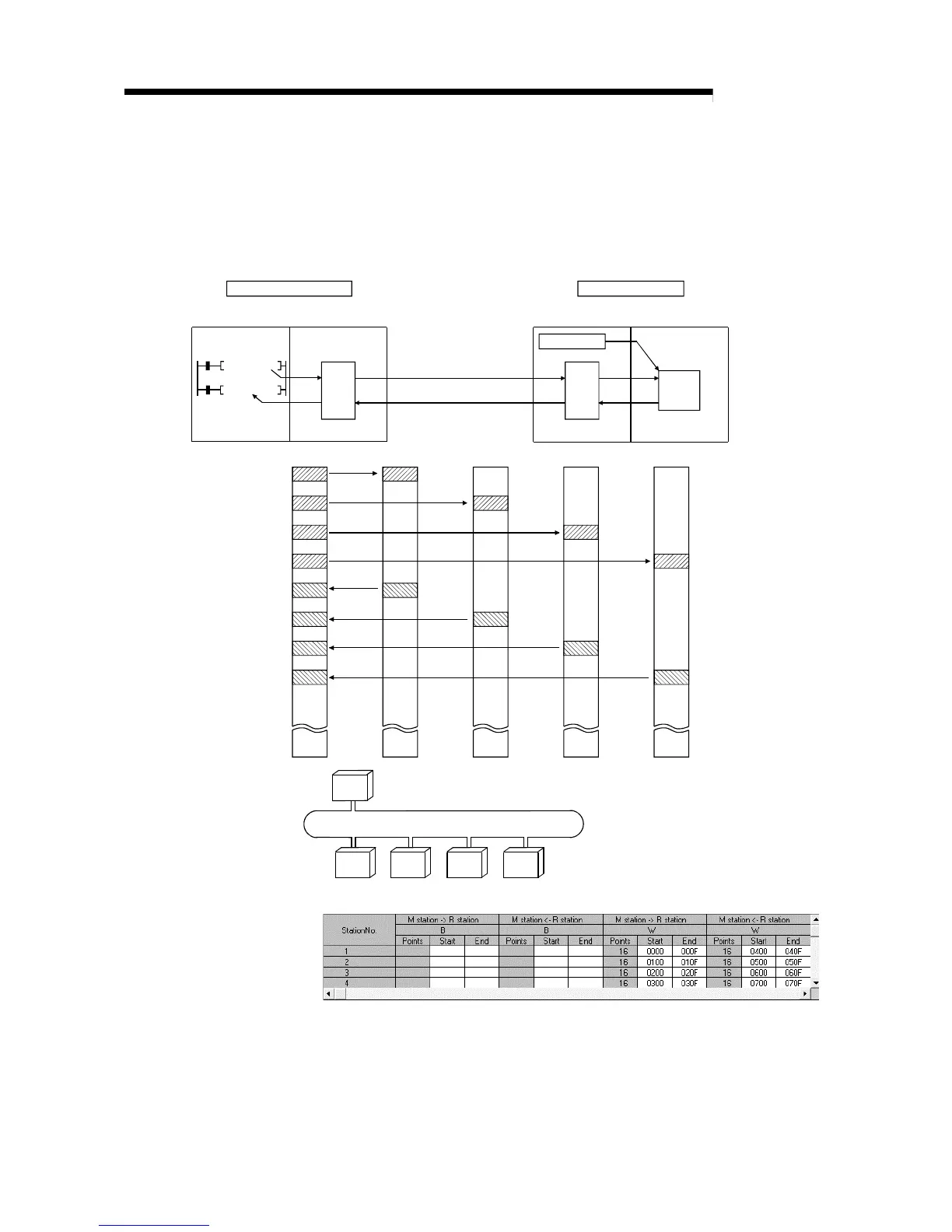

(2) LB/LW setting
LB/LW settings set the remote I/O station LB/LW data and set to which of the
remote master station addresses they are to be read and written.
If the setting is for the intelligent function module buffer memory to be
automatically refreshed to remote I/O module link register W by intelligent
parameters, the remote master station can read and write intelligent function
module buffer memory data from the remote I/O module via LW.
QCPU
QJ71LP21
QJ71BR11
Remote master station
intelligent
function module
QJ72LP25
QJ72BR15
Initial settings
Buffer
memory
LW
(W)
LW
MOV W400 D0
MOV D10 W0
Remote I/O station
(Station No. 1
)
0
F
100
10F
200
20F
300
30F
400
40F
500
50F
600
60F
700
70F
3FFF
1M
R
1R1 1R2 1R3 1R4
1M
R
1R1 1R2
Network No.1
1R3 1R4
Remote I/ O station
Remote master station
(Screen setting)
