2 - 1 2 - 1
MELSEC-Q
2 SYSTEM CONFIGURATION
2 SYSTEM CONFIGURATION
This introduces a system comprised of remote I/O networks.
2.1 Single Remote I/O Networks
2.1.1 Configuration

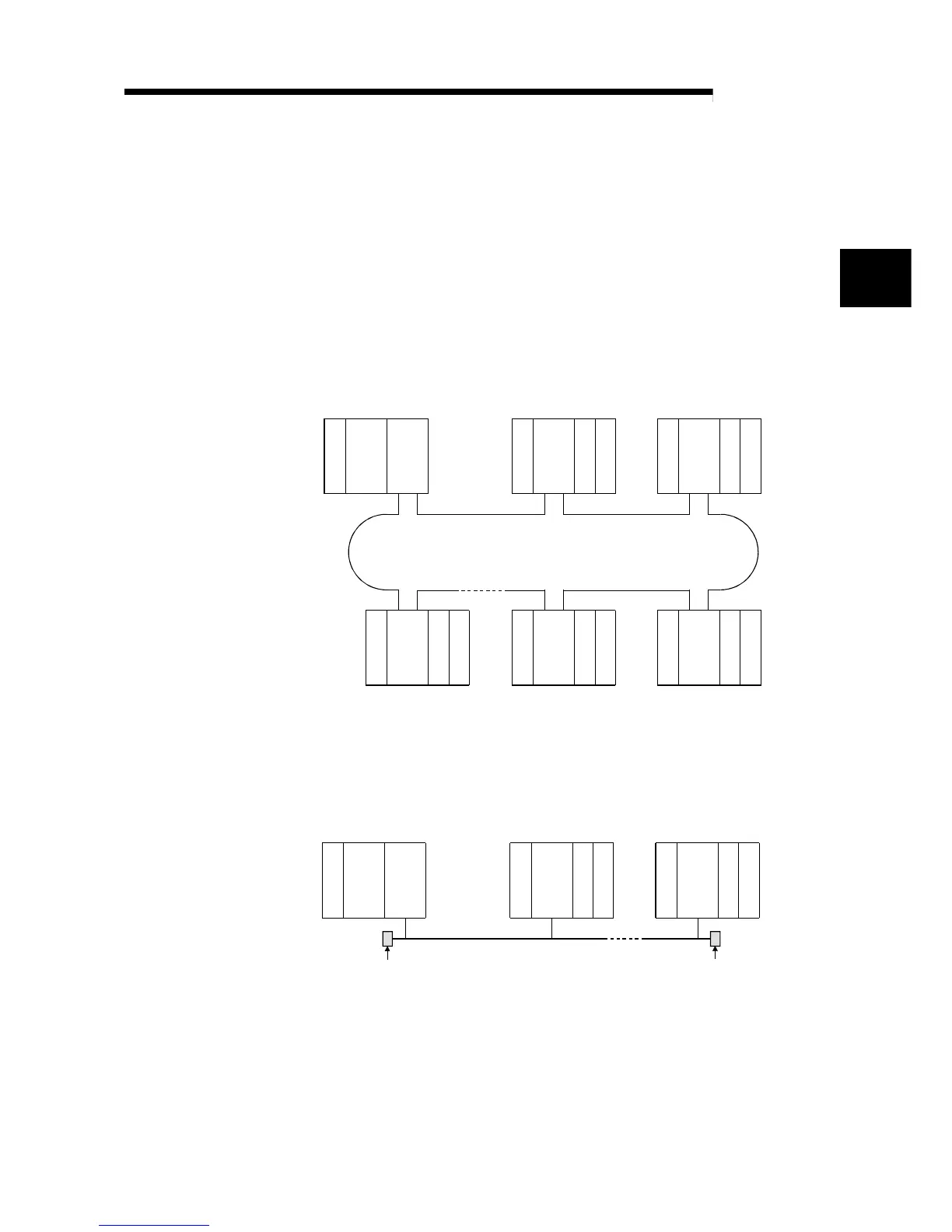

(1) Optical loop system
Up to 64 remote I/O modules can be connected to a remote master station.
Always set the station number of the remote master station to 0.
Power supply
QCPU QJ71
LP21
Station number 0
(remote master station)
Station number 1
(remote I/O station)
I/O
QJ72
LP25
I/O
Station number 2
(remote I/O station)
I/O
QJ72
LP25
I/O
Optical fiber cable
Power supply Power supply
I/O
QJ72
LP25
I/O I/O
QJ72
LP25
I/O
Power supply Power supply
I/O
QJ72
LP25
I/O
Power supply
Station number 4
(remote I/O station)
Station number 3
(remote I/O station)
Station number 64
(remote I/O station)
(2) Coaxial cable bus system
Up to 32 remote I/O stations can be connected to a remote master station.
Always set the station number of the remote master station to 0.
QCPU
QJ71
BR11
Terminator
(Sold separately)
Terminator
(Sold separately)
Coaxial cable
Station number 1
(remote I/O station)
I/O
QJ72
BR15
I/O
Station number 32
(remote I/O station)
I/O
QJ72
BR15
I/O
Power supply Power supply Power supply
Station number 0
(remote master station)
2
