4 - 7 4 - 7
MELSEC-Q
4 SETUP AND PROCEDURES BEFORE STARTING THE OPERATION

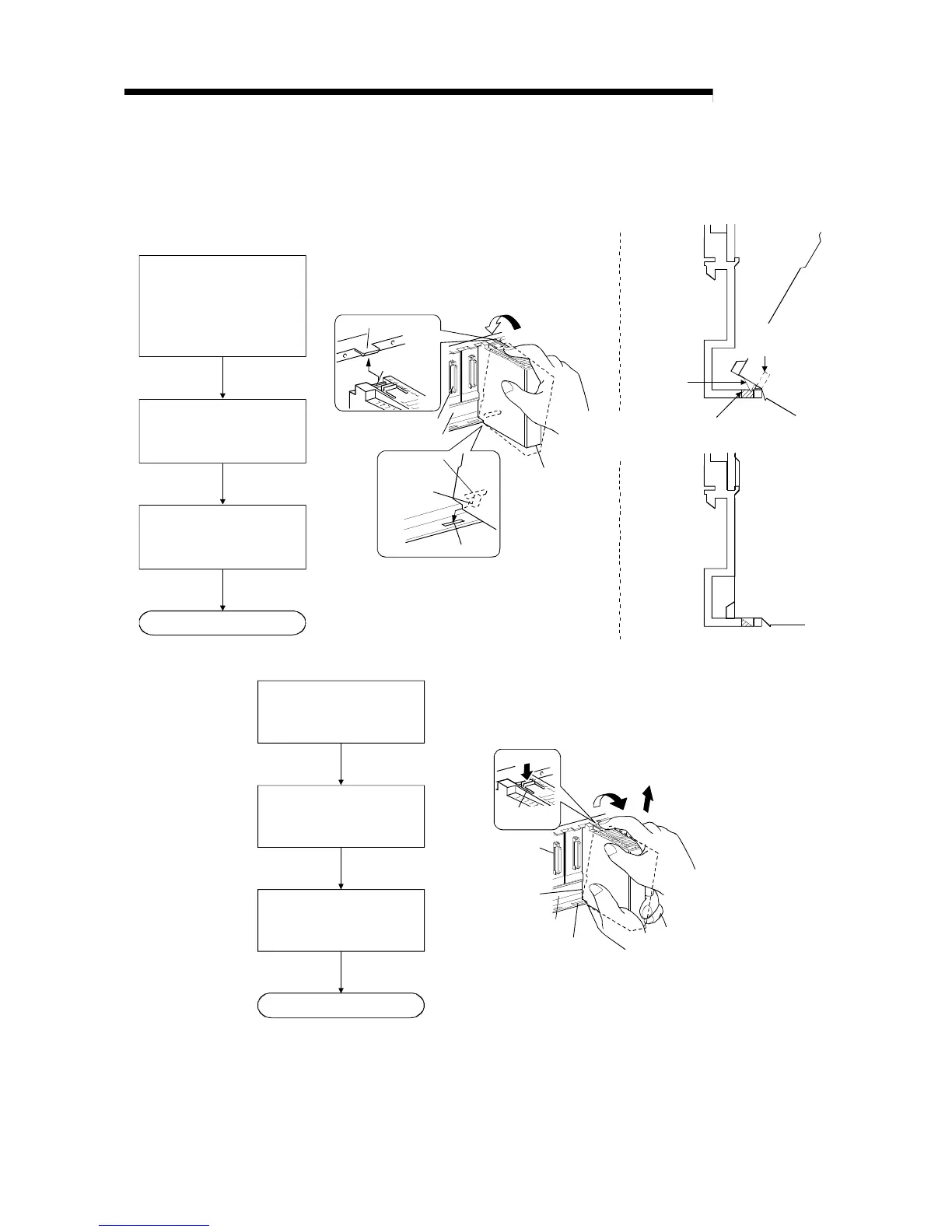

4.3 Installing and Uninstalling the Module
(1) Installing the module
Fully insert the module fixing
latch into the module fixing
hole in the base unit (exercise
care not to allow the module
fixing latch to separate from
the module fixing hole).
Using the module fixing hole
as a fulcrum, push the module
in the direction of arrow to
mount it into the base unit.
Check that the module is
securely fixed to the
base unit
Complete
Module fixing hole
Module
fixing latch
Base unit
Module fixing
lever
Module
Module locking
hook
Base unit
Module fixing hole
Module
fixing lever
Module fixing
latch
Module connector
Base unit
(2) Uninstalling the module
Hold the module by both
hands, and push the module
locking hook on the top of the
module until it stops.
Pushing the module locking
hook, pull the module
downward.
Lift the module to disengage
the module fixing latch from
the module fixing hole.
Complete
Module
Module
connector
Module fixing hole
Base unit
Push.
Module locking
hook
Lift
