MELSEC-Q
5 PARAMETER SETTINGS

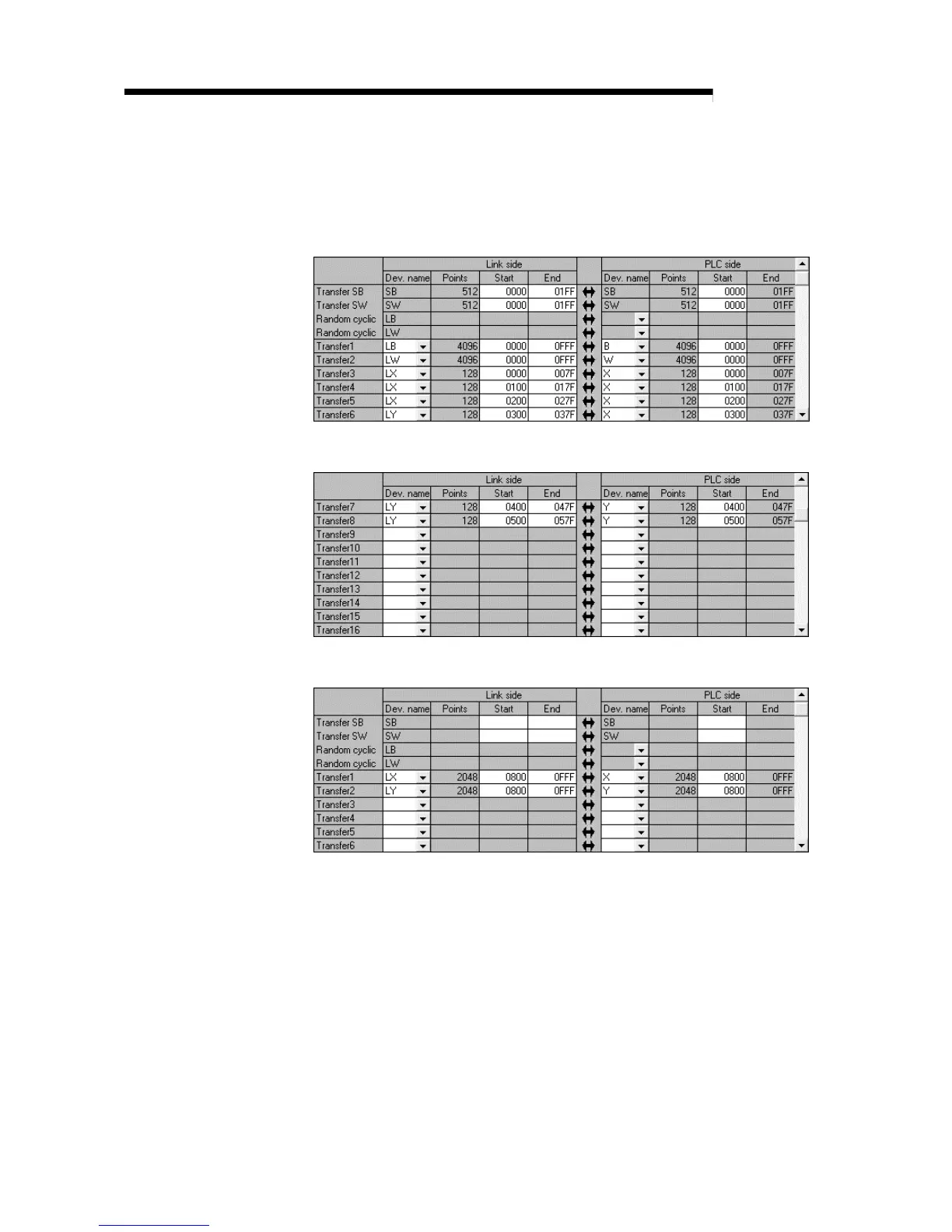

[Setting screen]
The following shows the settings of the refresh parameters for each module that
are displayed on the screen.
Settings of module 1 (1M
R
) (transfer SB, transfer SW, transfers 1 to 6)
(Transfers 7 to 8)
Settings of module 2 (2M
R
) (transfer SB, transfer SW, transfers 1 and 2)
To Next Page
