7 - 43 7 - 43
MELSEC-Q
7 APPLICATION FUNCTIONS
(b) Unlocking and locking the remote password
The remote password is unlocked (connection is allowed) via the modem
by the serial communication module or via Ethernet by the Ethernet
module.
When the remote password is matched, connection to the remote I/O
module is allowed.

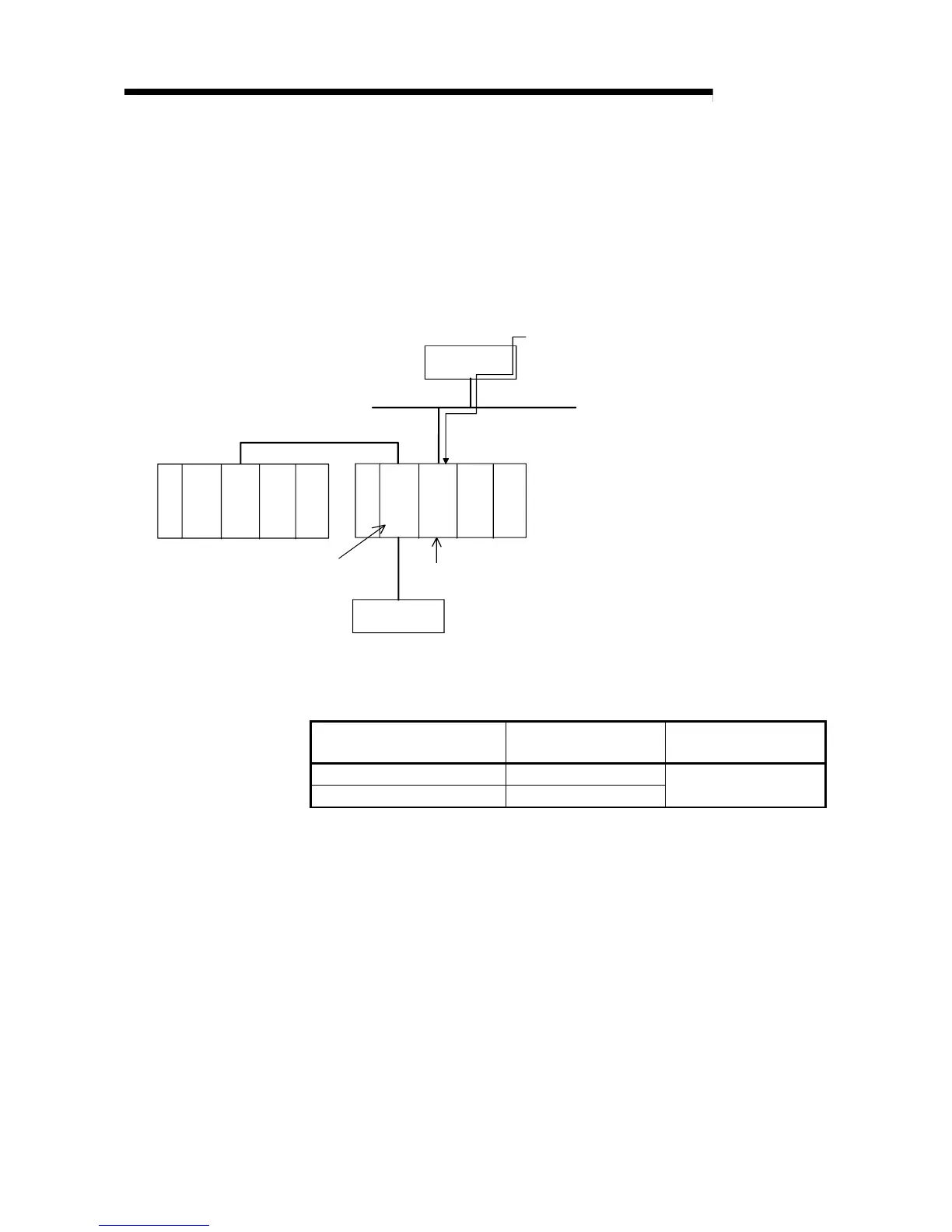

The figure below shows the outline of unlocking and locking (connection is
allowed) a remote password with the Ethernet module.
GX Developer
Ethernet
3) QJ71E71 checks the remote password.
1) Transfer the remote password
to QJ71E71 when the system
is powered on or it is reset.
GX Developer
Power supply
QCPU QJ71
LP21
MELSECNET/H
2) Enter a remote password when connecting
to QJ71E71, and connect to QJ72LP25
after the password is unlocked.
4) The remote password is locked when the
line is closed.
QJ71
E71
QJ72
LP25
Power supply
(c) Number of modules for that can be set to check remote passwords
The table below shows the number of modules that can be set to check
remote passwords.
Module name Max. number of modules
Max. number of modules
in the system
Ethernet module 4
Serial communication module 8
8
