3-57
Controller prot
ection box

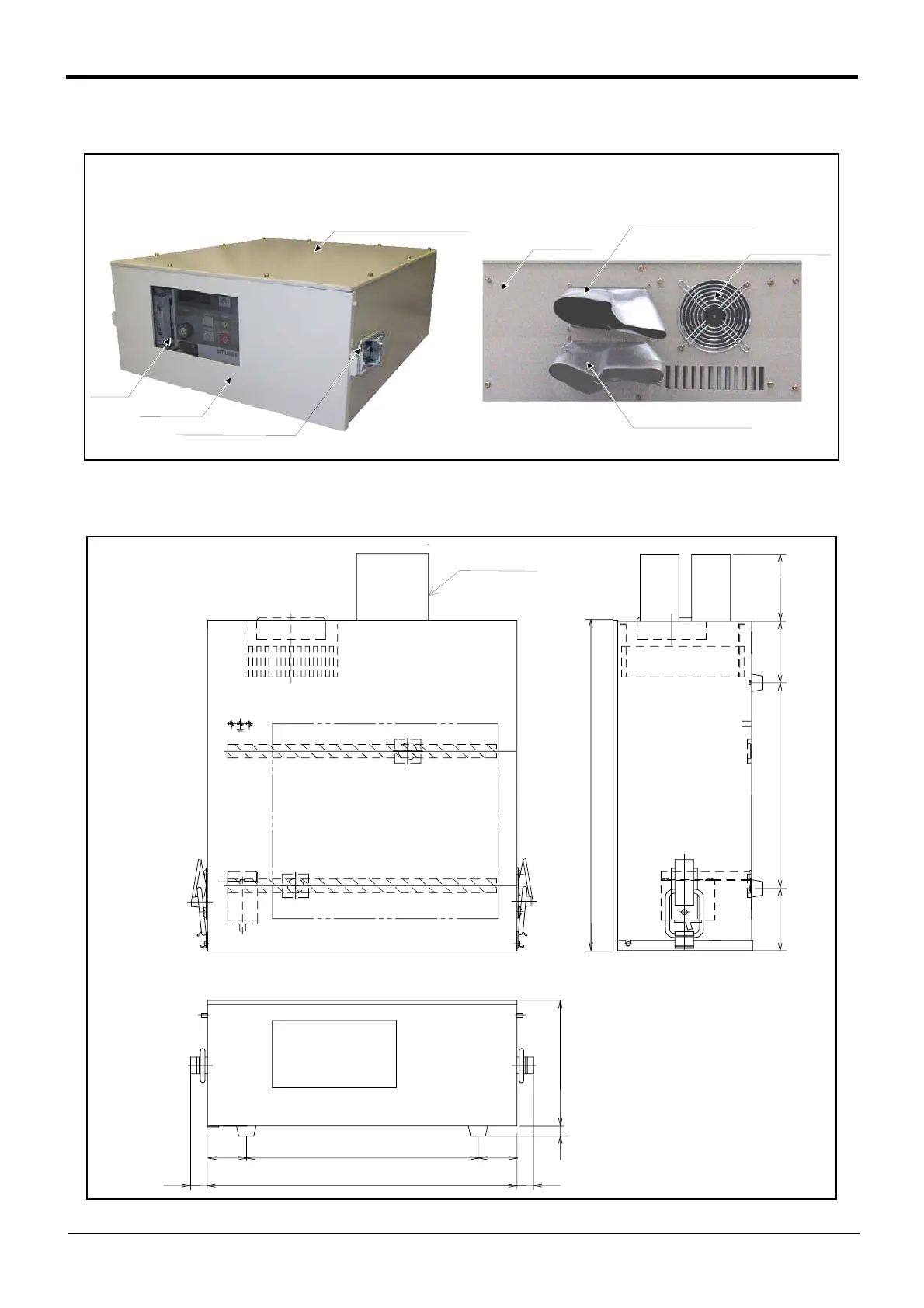

3 Controller
■
Names of each part
Fig.3-12
：
Names of c
ontroller parts
■
The outside dimension and controller layou
t
Fig.3-13
：
The outside dimension and controller layo
ut
Chassis cover (Top board)
Corner type catch clip
Window
Front panel
Rear panel
Cable cover
(Machine cable for power)
Heat exchanger
Cable cover
(Machine cable for signal)
<Front>
<Rear>
310
414
(52)
(
52)
(21.5)
(21.5)
187
(15)
492
306
91.2
92.2
100
Window
Cabl
e co
ver
Contr
oller
arra
ngemen
t pl
ace
65
67
