3 Controller
Controller protection box
3-58

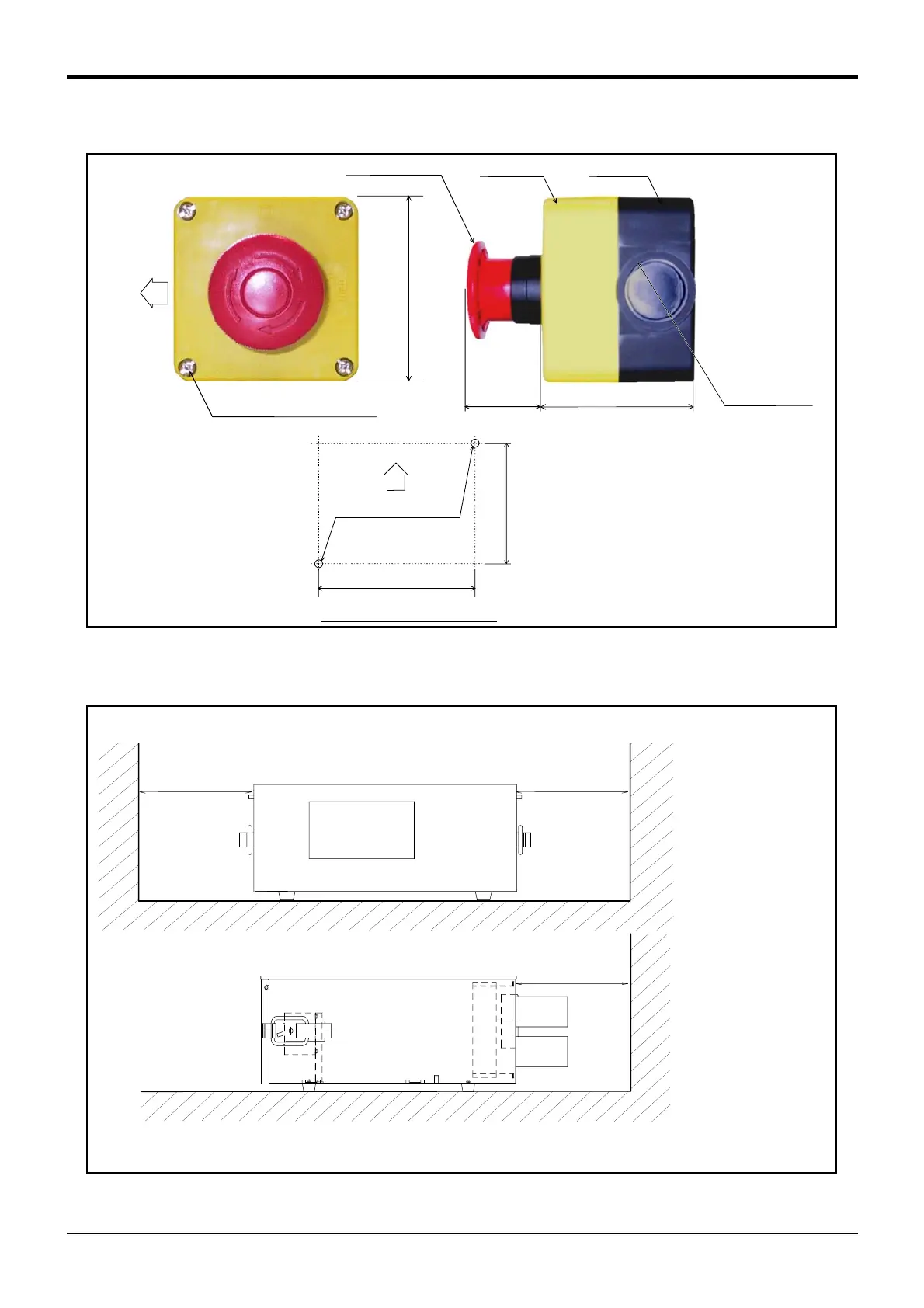

■ The outside dimensions and installation dimensions of emergency stop box
Fig.3-14 ： The outside dimensions and installation dimensions of emergency stop box
■ Installation dimensions
Fig.3-15 ： Installation of controller
Operation switch
TOP
32.0 58.0
□ 70.0
BOX cover
BOX base
BOX cover installation screw
φ23.0 conduit
(Knockout)
*The M4 screw prepared by customer
TOP
2-φ4.6
(Two M4 installation
screw holes)
58.0
42.4
Panel installation dimension
150mm or more
Note)
Keep the space of
150mm or more for
opening and closing
the corner type catch clip.
150mm or more
Note)
150mm or more
Note)
To Next Page
