Service Manual Mitsubishi SL-Series diesel engines
Version 08/2004
Cooling system
ENGLISH
ASSEMBLY
ASSEMBLY
26 Cooling system
26.1 Water pump installation
Put a new gasket in position on the water pump flange.
Install the water pump in position on the cylinder block.
26.2 Thermostat installation
1. Put the thermostat in the thermostat case.
2. Put a new gasket in position on the thermostat
case. Install the thermostat assembly in position
on the cylinder head.
26.3 Cooling fan installation
1. Install the spacers in position in the fan as shown.
2. Install the pulley in position on the water pump.
Install the fan and spacer combination in position
on the pulley.

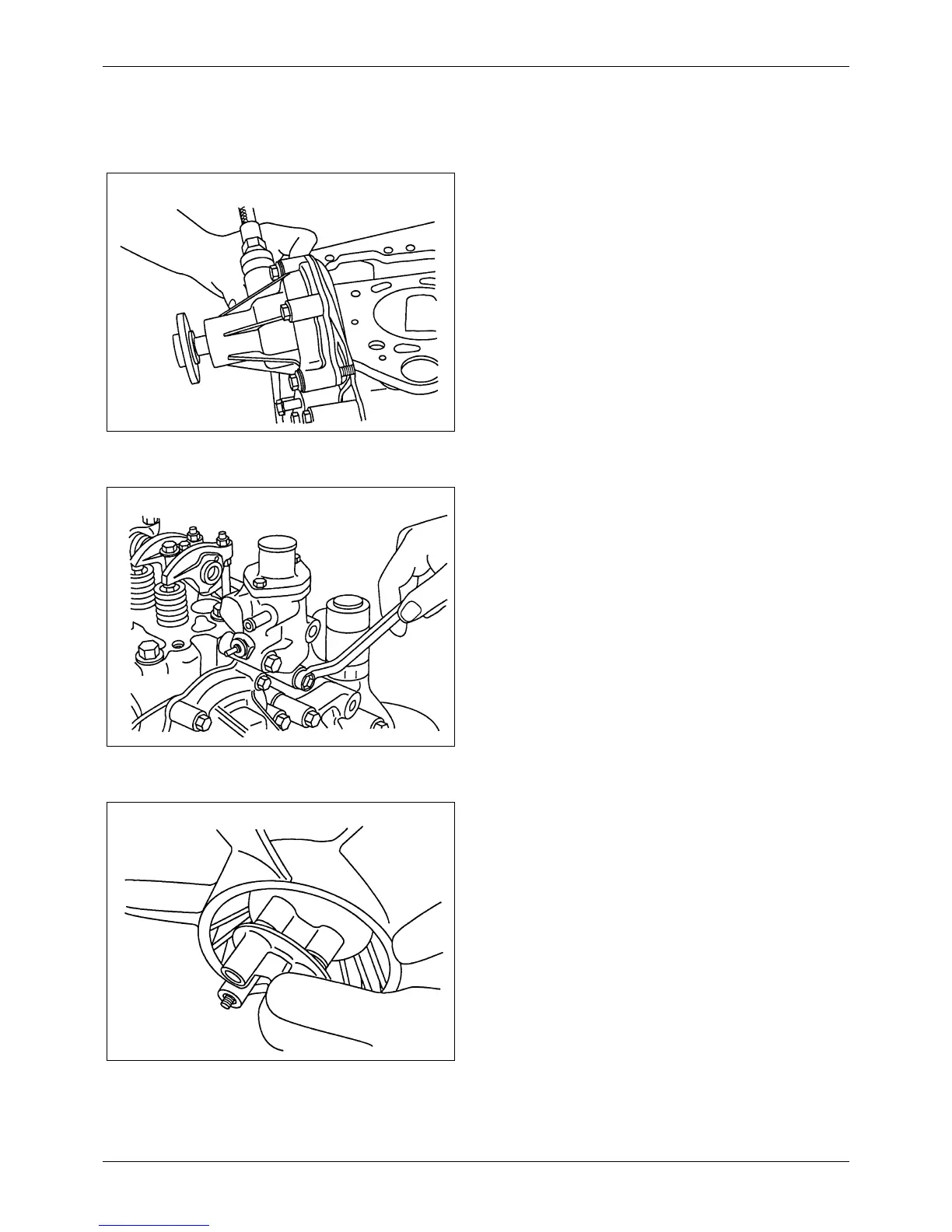

Figure 176 Installing water pump
Figure 177 Installing thermostat
Figure 178 Installing cooling fan
