Service Manual Mitsubishi SL-Series diesel engines
V
ersion 08/2004
GENERAL
ENGLISH
ELECTRICAL SYSTEM
< ETS type stop solenoid >
28.2

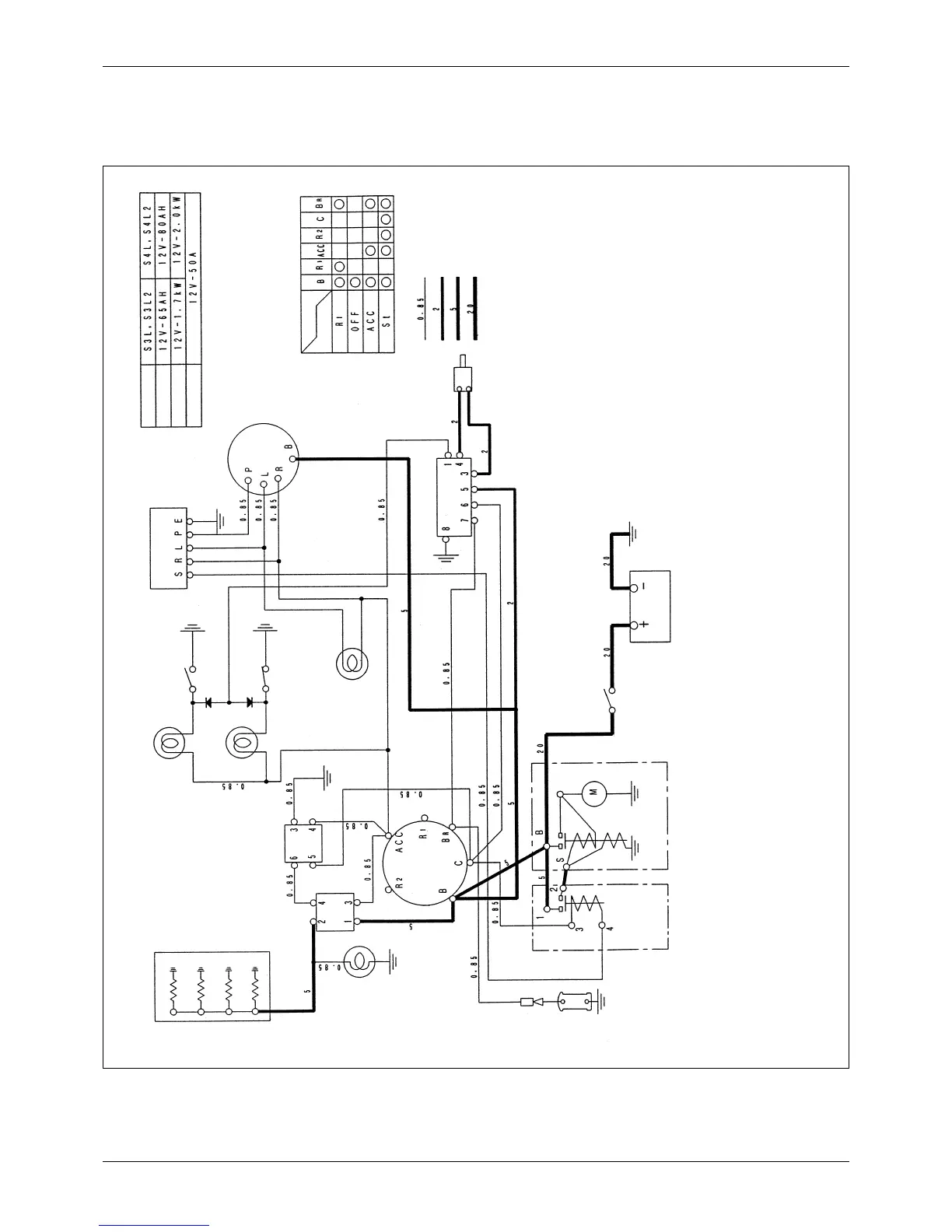

Wiring di
agrams
1.
Figure indicates a nominal size of automotive low-ten
sion line (JIS C 3406).
2.
This schematic shows the electrical system of the stan
dard en
gine equipped with a key shut down soleno
id and glow plugs.
Glow plug
Pilot lamp
MM201-124
Themo switch
MM432-104
Safety relay
MM130-767
Model
Battery
Sta
r
t
e
r
Alternat
or
Gow relay
MM431-28201
Pilot lamp
MM201-123
Glow timer
MM431-762
Diode
MM434-062
Pressure switch
31A90-00100
Charge pilot
MM201-122
Alternator
S
tarter switch
30890-05200
Pilot lamp
MM201-124
Control timer
I6A1
1-14000
Solénoid (ETS)
Connection of
starter switch
T
erminal
Position
Fuel pump
30A60-00200
S
tarter relay
32A66-19100
Sta
r
t
e
r
Battery switch
05125-00102
Battery
0,85 mm
2
or more
20 mm
2
or more
2 mm
2
or more
5 mm
2
or more
Diode
MM434-062
112
114
