Service Manual Mitsubishi SL-Series diesel engines

Version 08/2004

ENGLISH

CYLINDER HEAD AND VALVE

MECHANISM

ASSEMBLY

98 / 195

ASSEMBLY

22 CYLINDER HEAD AND

VALVE MECHANISM

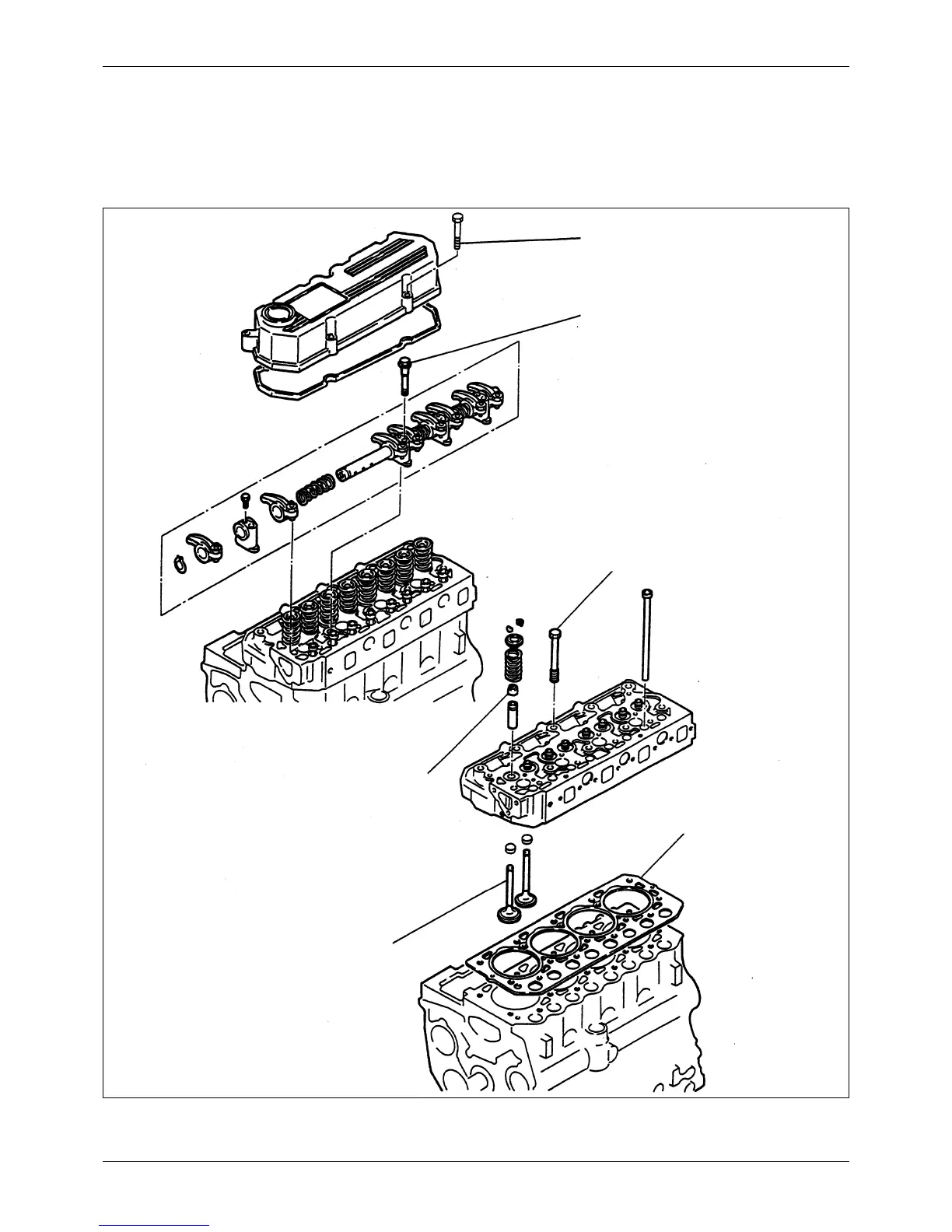

Figure 154 Inspection points

Tightening torque:

1.15 ± 0.15 kgf m (8.3 ± 1.1 lbf ft)

[11.3 ± 1.5 N m]

Tightening torque:

1.5 ± 0.5 kgf m (11 ± 4 lbf ft) [14.7

± 5 N m]

Tightening torque:

9 ± 0.5 kgf m (65 ± 4 lbf ft)

[88 ± 5 N m]

Use a new part

Lubricate stem with engine oil
