32 / 195
Service Manual Mitsubishi SL-Series diesel engines
Version 08/2004
ENGLISH
PREPARATION FOR DISASSEMBLY DISASSEMBLY
32 / 195
DISASSEMBLY
8 PREPARATION FOR
DISASSEMBLY
t
8.1 Engine oil draining
1
Remove the drain plug from the bottom of the oil pan
and allow the oil to drain.
t
8.2 Coolant draining
1
Loose the drain plug on the right side of the cylinder
block and allow the coolant to drain.

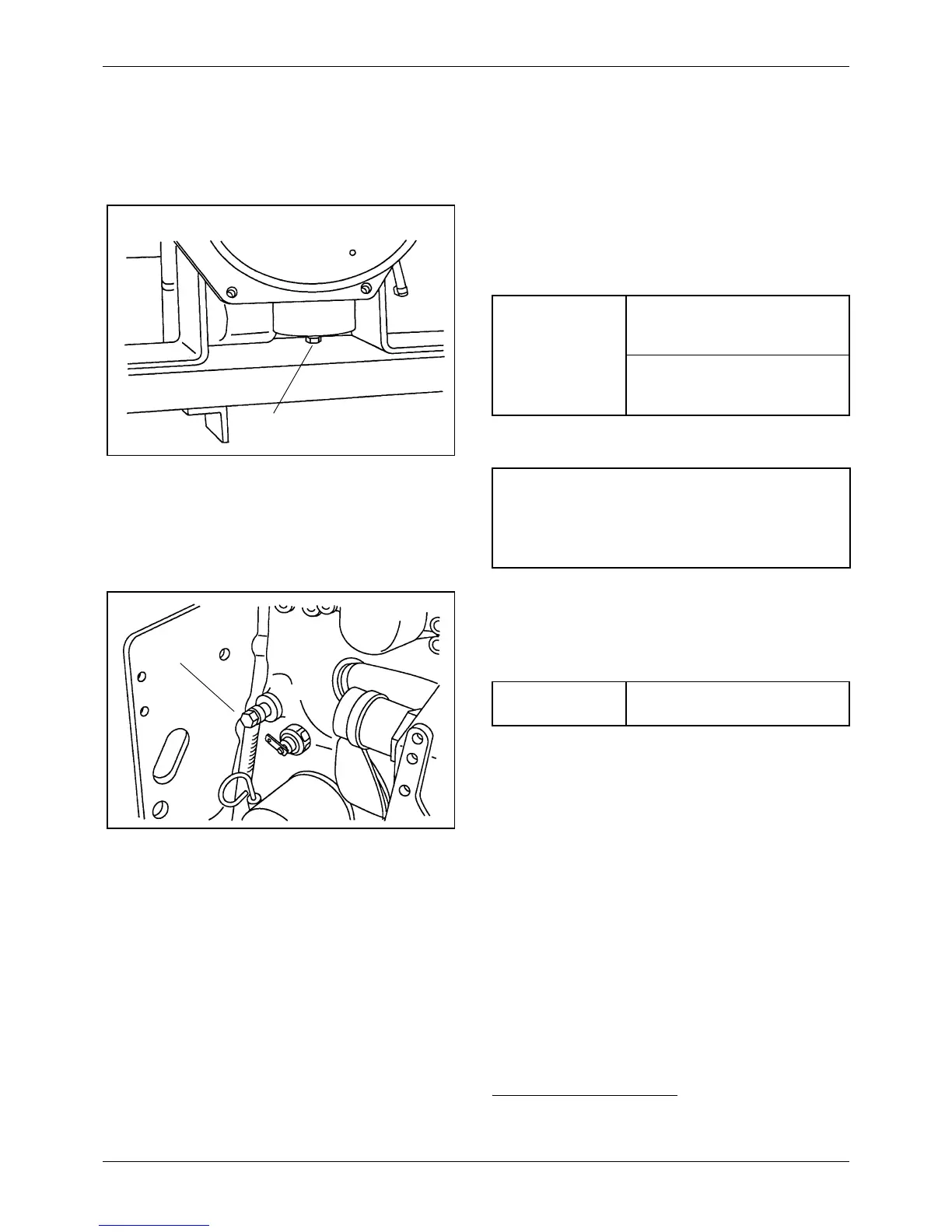

Figure 5 Draining engine oil
Engine oil drain plug
1. Please refer to the applicable engine model specification
sheet for actual data
Refill capacities
(high level excl. 0.5
liter (0.13 U.S. gal)
of oil in oil filter, liter
(U.S. gal)
S3L/S3L2:
5.7 (1.5) (with deep oil pan)
3.7 (1.0) (with standard oil pan)
S4L/S4L2:
7.7 (2.0) (with deep oil pan)
5.4 (1.4) (with standard oil pan)
îîWARNING
Hot oil and components can cause personal injury.
Do not allow hot oil or components to contact skin.
Figure 6 Draining coolant
Coolant drain
plug
Refill capacities,
liter (U.S. gal)
S3L/S3L2: 1.8 (0.5)
S4L/S4L2: 2.5 (0.7)
