Service Manual Mitsubishi SL-Series diesel engines
Version 08/2004
STARTER
ENGLISH
ELECTRICAL SYSTEM

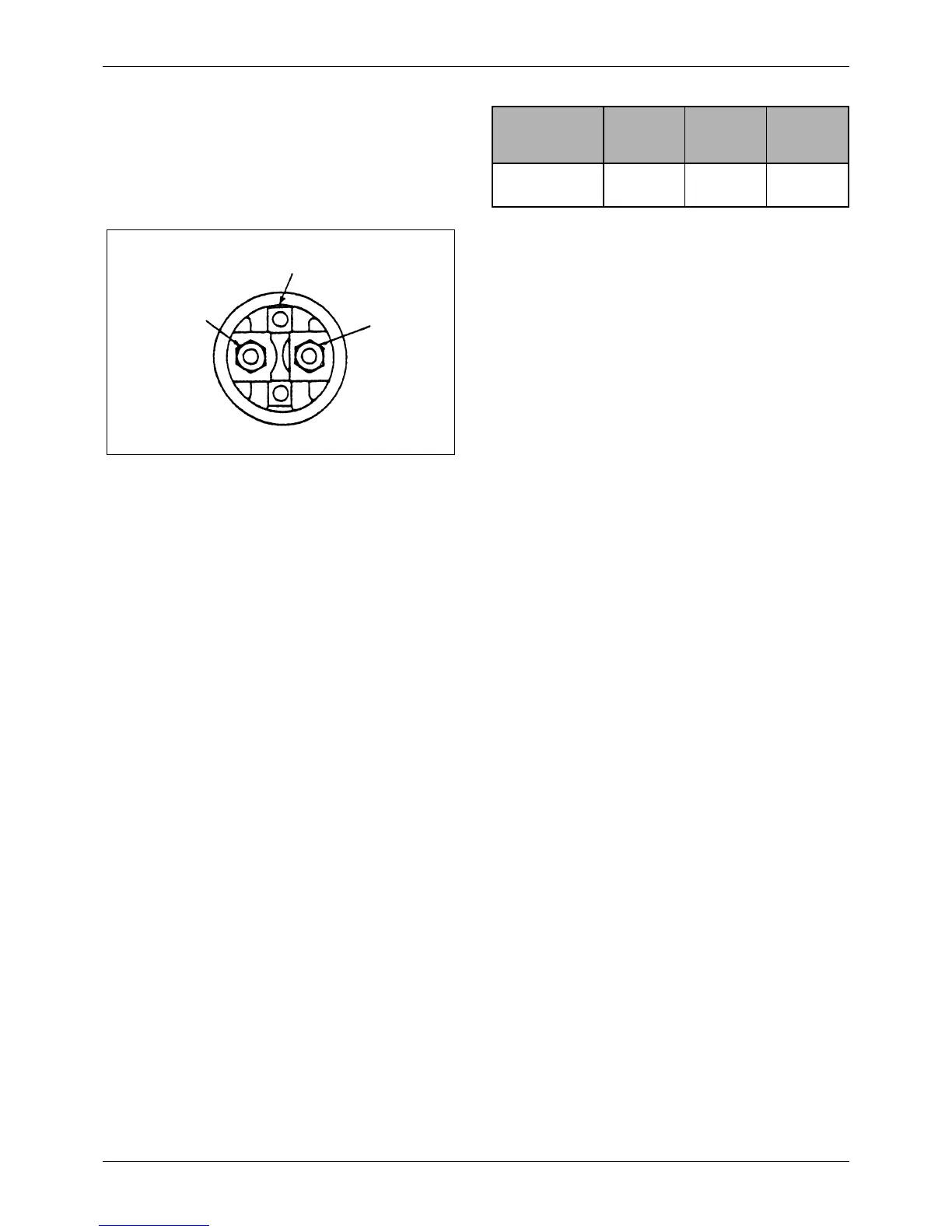

29.4.3 Solenoid Switch
Perform the following continuity tests. If the solenoid
switch fails either tests, replace it.
1) Test for Coil Open Circuit
Continuity should exists between the S- and
M-terminals and between the S-terminal and
ground (case).
2) Test for Fused Contacts
Continuity should not exist between the B-
and M-terminals.
Voltage
(V)
Current
(A)
Speed
(min
-1
)
No-Load
characteristics
11 130
maximum
3,600
minimum
M-terminal
S-terminal
B-terminal

Mitsubishi S4L Specifications

General

Aspiration	Naturally Aspirated
Fuel Type	Diesel
Cooling System	Water-cooled
Starting System	Electric Starter
Lubrication System	Forced Lubrication
Engine Type	4-stroke, vertical, water-cooled, direct injection diesel engine
Max Power Output	48.5 kW (65 hp) at 2200 rpm
