Service Manual Mitsubishi SL-Series diesel engines
Version 08/2004
ALTERNATOR
ENGLISH
ELECTRICAL SYSTEM
30.1.1 Stator core separation from front
bracket
1. Pry the stator core off the front bracket with a
screwdriver as shown in the illustration.
30.1.2 Pulley removal
1. Hold the rotor assembly in a vise by using thick
cloth as shown in the illustration. Remove the nut
that holds the pulley in position, and remove the
pulley and spacer.
2. Remove the rotor assembly from the front bracket.
30.1.3 Stator core and rectifier removal
1. Unsolder the leads from the rectifier and remove
the stator core from the rectifier.
2. Remove the screws that hold the rectifier in
position and remove the rectifier.

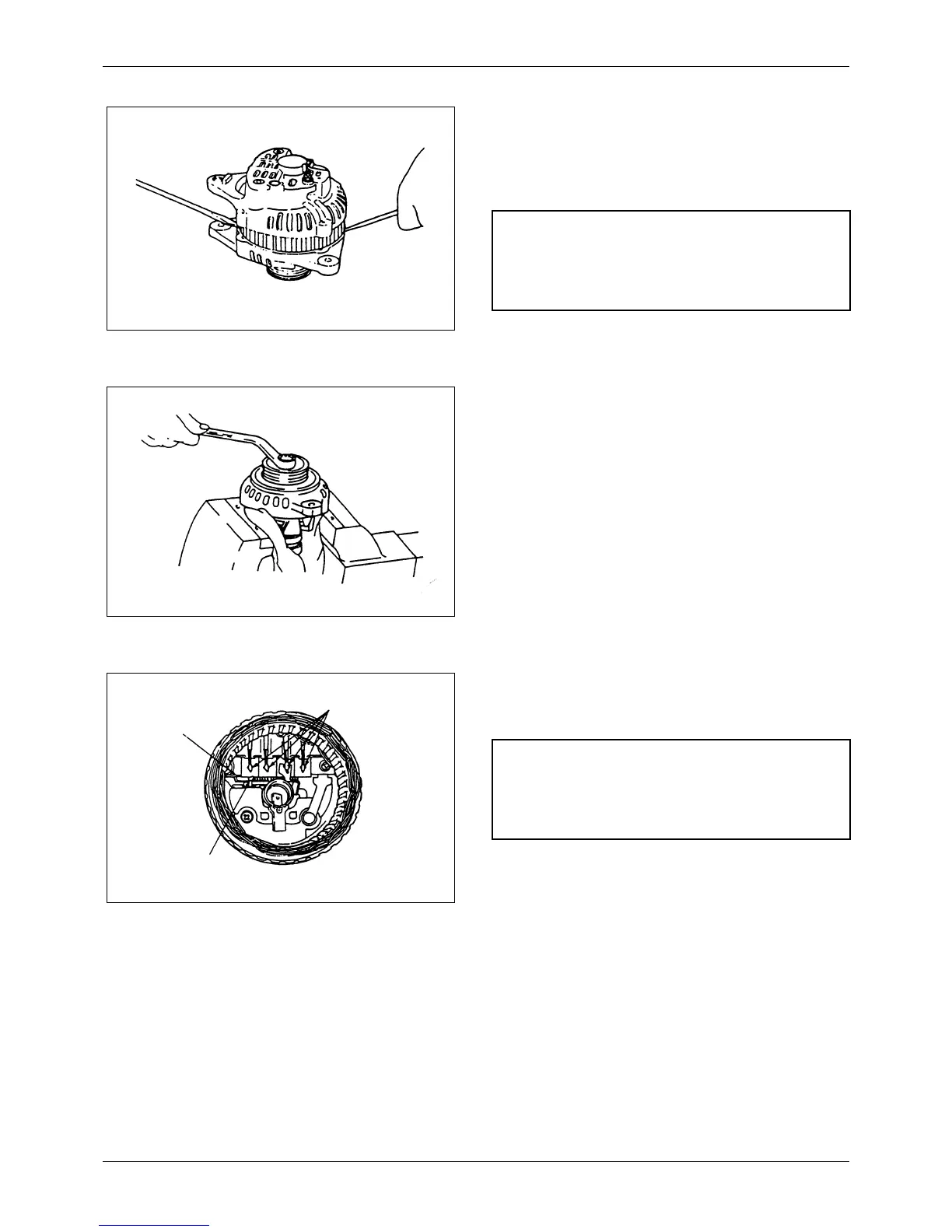

Figure 184 Disassembling alternator
CAUTION
Be careful not to insert the screwdriver too deep.
Damage to the stator core can be the result.
Figure 185 Removing pulley
Figure 186 Removing stator core
Unsolder
Unsolder
Rectifier
CAUTION
Unsolder the leads as quickly as possible to prevent
damage to the diodes in the rectifier.
