Service Manual Mitsubishi SL-Series diesel engines
Version 08/2004
ELECTRICAL SYSTEM
ENGLISH
DISASSEMBLY
t
9.2.5 Removal
1. Disconnect the battery cables.
2. Disconnect the lead from the B terminal of the
alternator.
3. Disconnect the connector from the alternator.
4. Loosen the brace and support bolts. Move the
alternator toward the engine and remove the drive
belt.
5. Remove the alternator.
Item Model
Standards
Terminal
voltage/
current
Speed
Output characteristics (at normal temperature)
A7T02071C
13.5 V/33 A
2 500 rpm
maximum
13.5 V/47 A
5 000 rpm
maximum

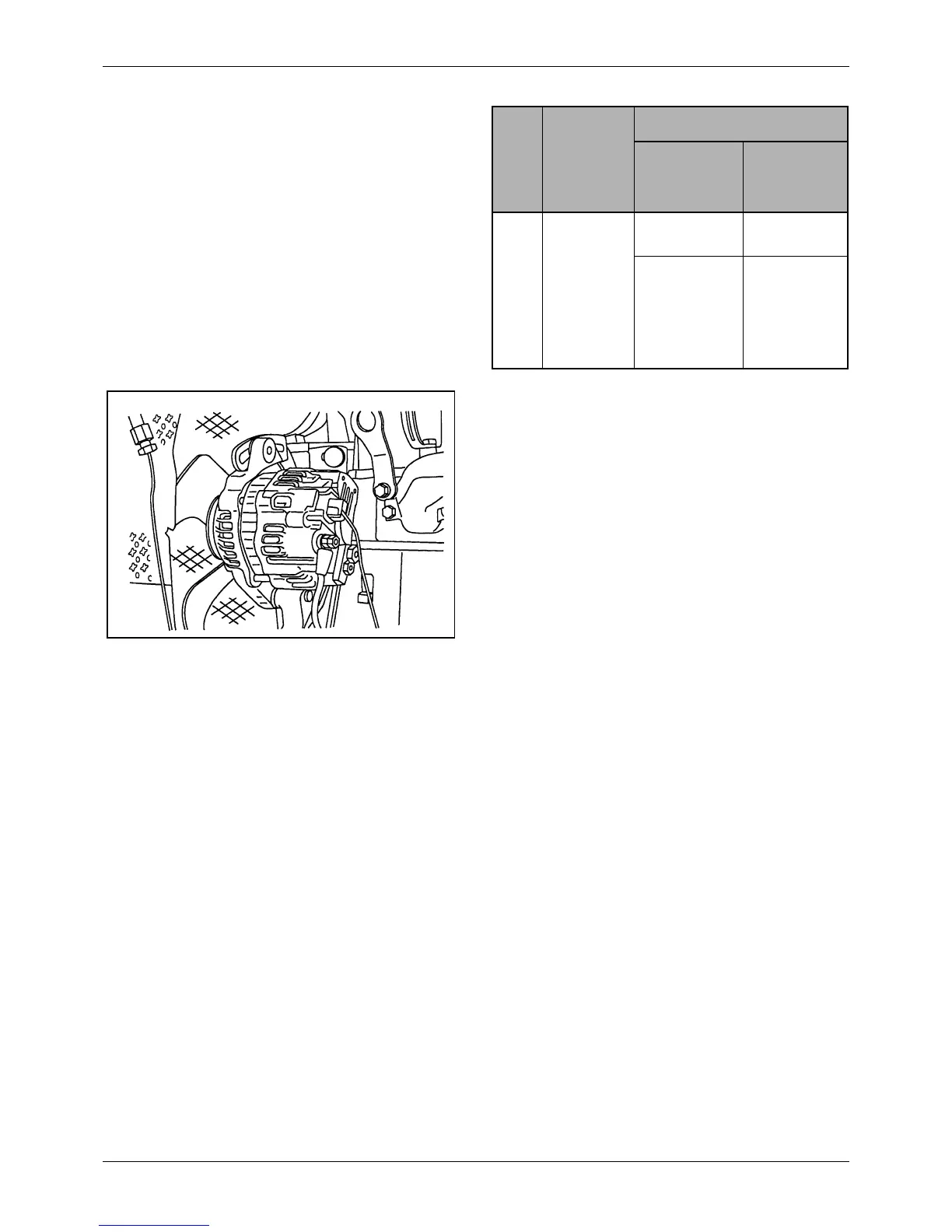

Figure 16 Removing alternator
