Mitsubishi S6R Series

1-9
Chapter 1 GENERAL

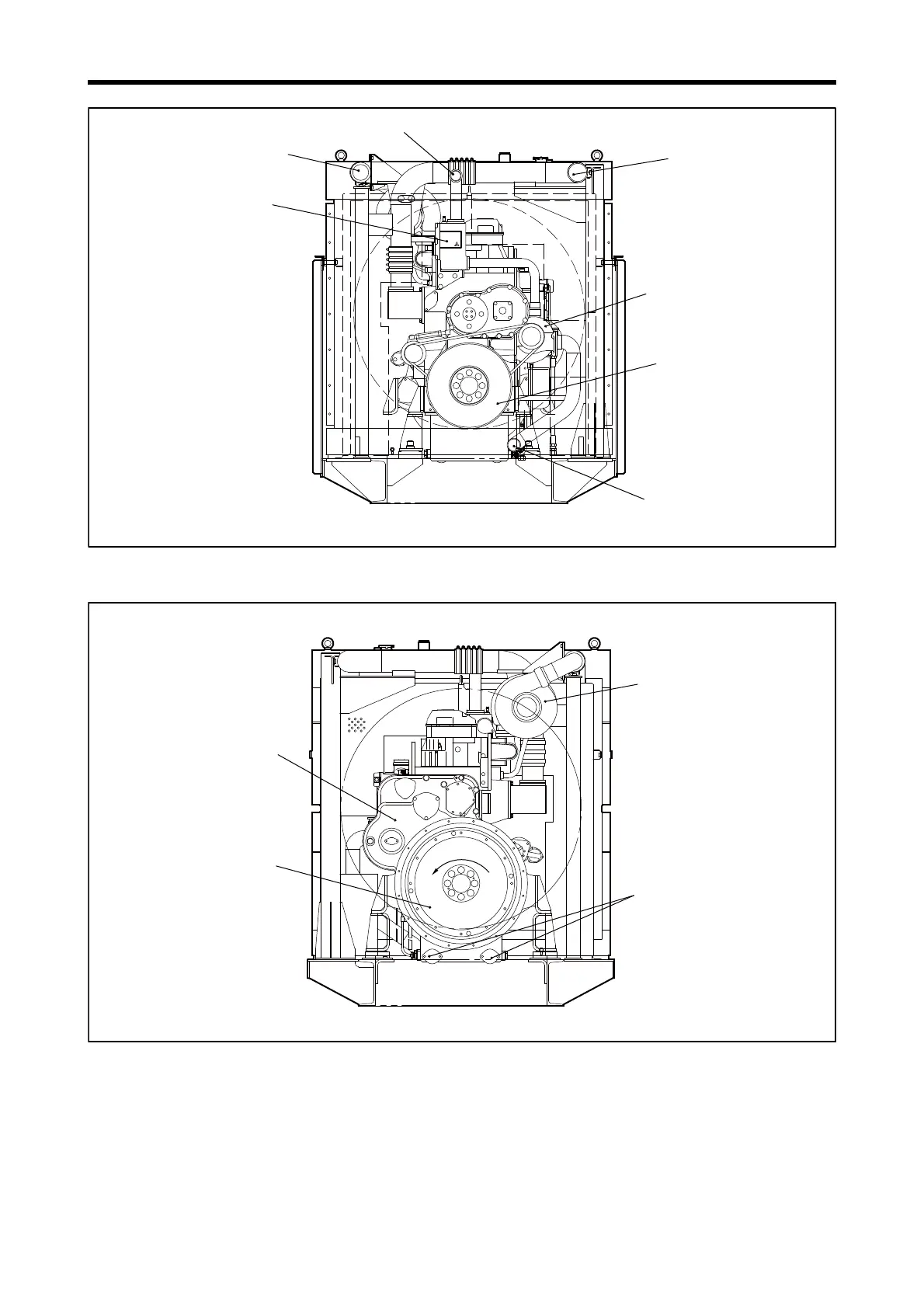

Engine Front View
Engine Rear View
Thermostat case
Note: Configuration varies depending on the destination and specifications.
S6R2-PTAA
Water pump
Damper
Coolant inlet
Coolant outlet
Air outlet for air cooler
Air inlet for air cooler
Flywheel
Timing gear case
S6R2-PTAA
Note: Configuration varies depending on the destination and specifications.
Engine oil drain port
Rotation directionRotation direction
Rotation direction
Turbocharger
