Mitsubishi S6R Series

1-10
Chapter 1 GENERAL

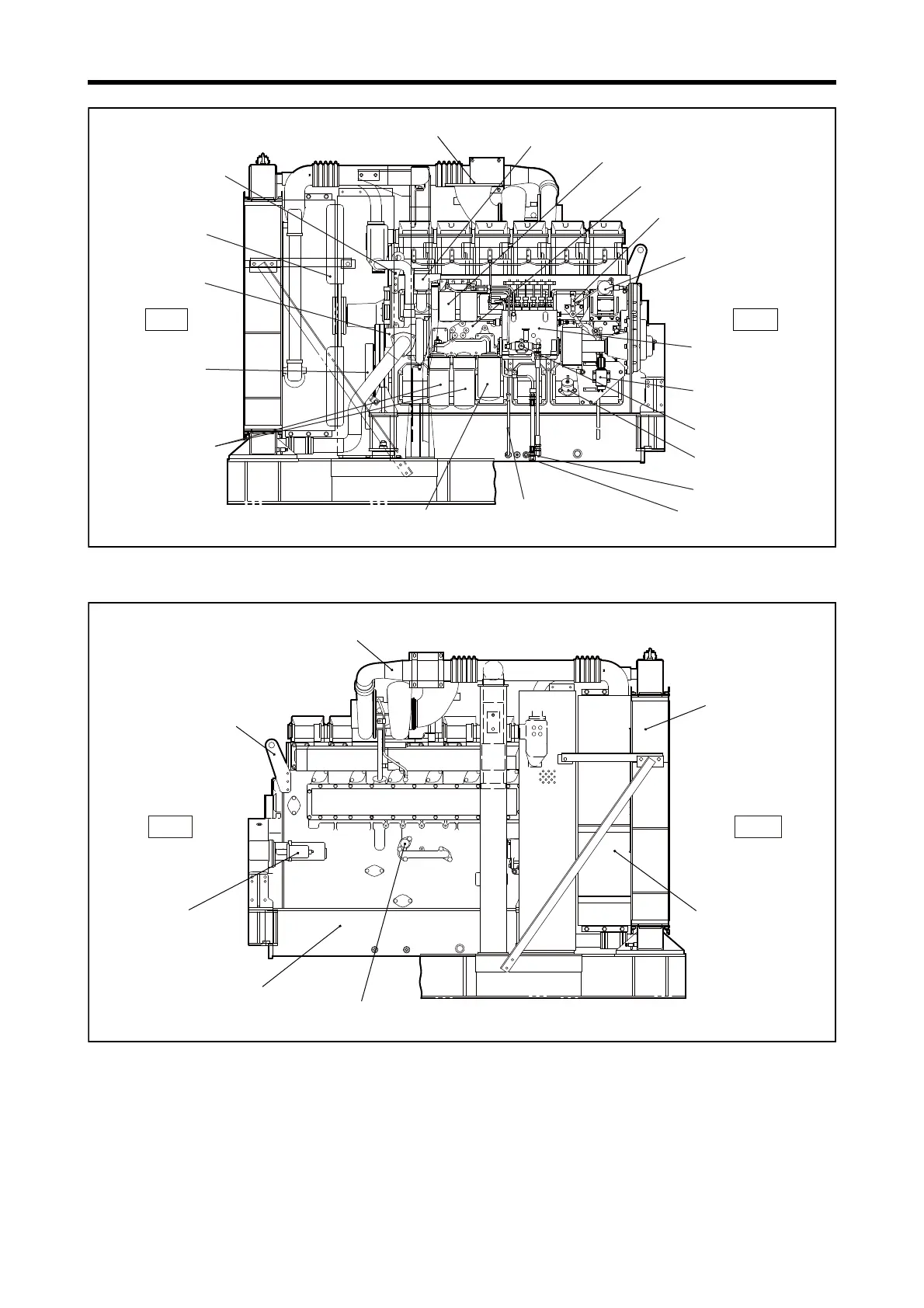

Left Side View
Right Side View
Fuel return port
Oil level gauge
Fuel inlet
Breather
Stop lever
Actuator (governor)
Fuel injection pump
Fuel feed pump
Stop solenoid
Water pump
Damper
Bypass oil filter
Oil filter
Oil filler
Oil cooler
Fuel filter
Fan
Front hanger
Front
Rear
Exhaust pipe, exhaust outlet
S6R2-PTAA
Note: Configuration varies depending on the destination and specifications.
Starter
Relief valve
Radiator
Air cooler
Air duct
Front
Rear
Rear hanger
S6R2-PTAA
Note: Configuration varies depending on the destination and specifications.
Oil pan
