Chapter 10 COOLING SYSTEM

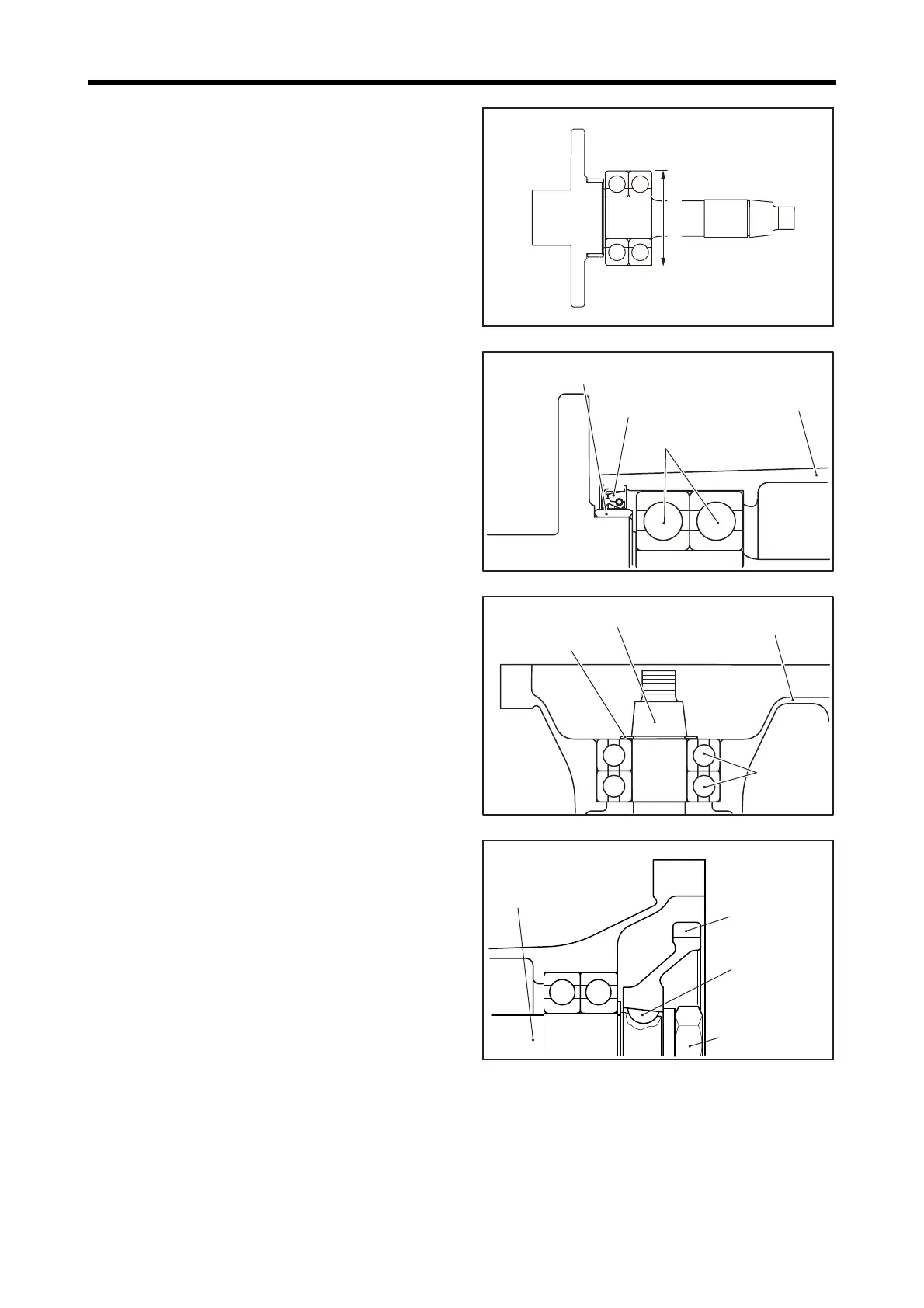

2.18.1 Fan Drive Gear Case - Assemble
(1) Press-in the bearing to drive shaft with bearing installer.
Ball Bearing - Install
(2) Install the oil seal to fan drive case with installer.
(3) Apply clean engine oil evenly to the oil seal lip.
(4) Install the drive shaft to fan drive case.
Oil Seal - Install
(5) Press-in the bearing to drive shaft with bearing installer.
(6) Install the snap ring.
Gear Side Bearing - Install
(7) Install the key to gear end of drive shaft.
(8) Install the fan drive gear while aligning it to drive shaft
key, and tighten the nut to the specified torque.
Fan Drive Gear - Install
Fan side Gear side
110 mm [4.33 in.]
Oil seal
Oil seal sleeve
Fan side bearing
Fan drive case
Drive shaft
Snap ring
Gear side
bearing
Fan drive case
392 ± 19.6 N·m
{40 ± 2.0 kgf·m}
[289 ± 14.5 lbf·ft]
Key
Fan drive gear
Drive shaft
