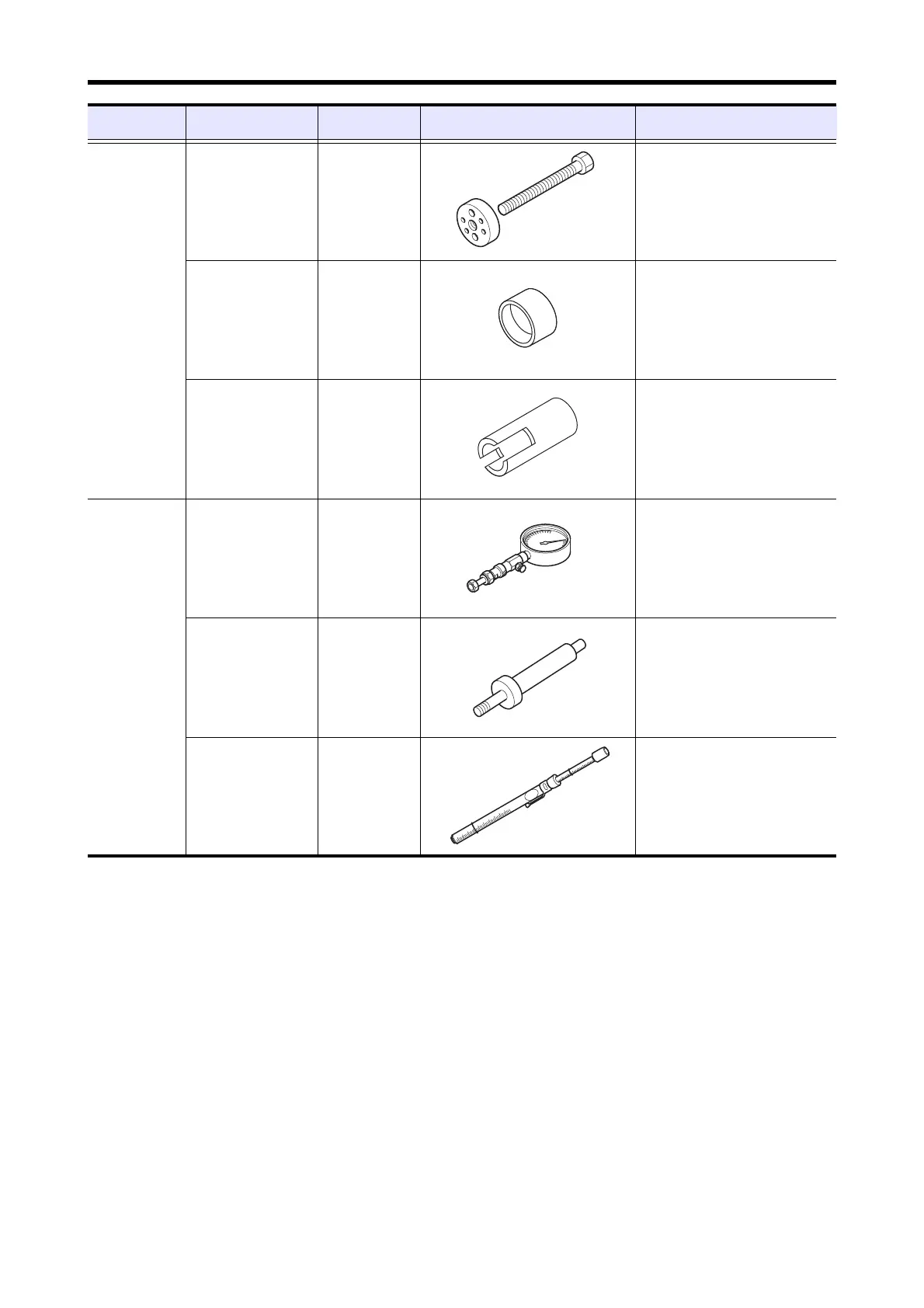

Chapter 3 SERVICE TOOLS
Cooling
system
Impeller remover 37591-03200 Water pump impeller - pull-out
M18 × 1.5 mm
Seal ring
installer guide
45B91-02100 Water pump unit seal - install
Mating ring
installer guide
45B91-02200 Water pump mating ring - install
Inspection and
measurement
Compression gauge 33A91-01700 Compression pressure - measure
Measurement range: 0 to 7 MPa
{0 to 71 kgf/cm
2
} [0 to 1015 psi]
Gauge adapter 37591-02200 Compression pressure - measure
U5/8-18
Belt gauge 32591-09100 Belt tension - measure
Maintenance
item
Tool name Part No. Illustration Usage
