3-6

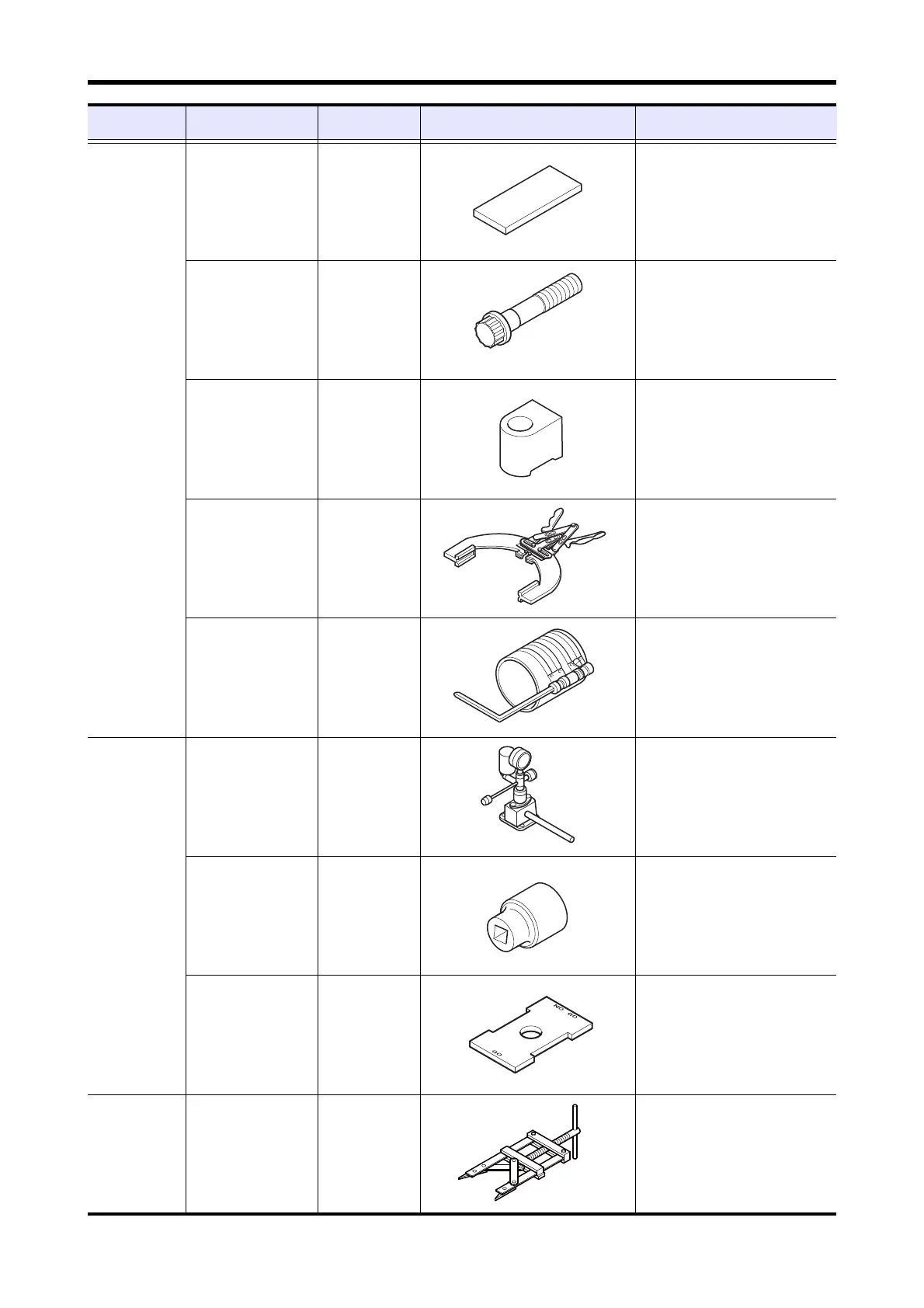

Chapter 3 SERVICE TOOLS
Basic engine Projection plate 37598-09201 Depth of counterbore in crankcase -
measure
L230 × W50 × T15 mm
[L9.06 × W1.97 × T0.59 in.]
Bolt 37591-06300 Cylinder liner flange
Protrusion - measure
(Liner presser jig)
Liner pusher 37591-06200 Cylinder liner flange
protrusion - measure
(Liner presser jig)
Ring expander 37191-03200 Piston ring - install/remove
Applicable diam: ø101.6 to 177.8 mm
[4.00 to 7.00 in.]
Piston installer 37191-07100 Piston- install
Applicable piston diam: ø89 to 178
mm [3.50 to 7.01 in.]
Fuel
system
Nozzle tester 83091-03301 Fuel injection nozzle opening pressure
- measure
Socket 58309-73100 Fuel injection
Pump gear and water pump gear -
install/remove
Fuel injection pump
coupling gauge
37591-06100 Fuel injection pump coupling clear-
ance - adjust
GO: 48.75 mm [1.9193 in.]
NO GO: 49.25 mm [1.9390 in.]
Cooling
system
Water pump pliers 37591-03100 Water pump cover
Hole snap ring - install/removal
Applicable diam: ø180 to 300 [7.09 to
11.81 in.]
Maintenance
item
Tool name Part No. Illustration Usage
