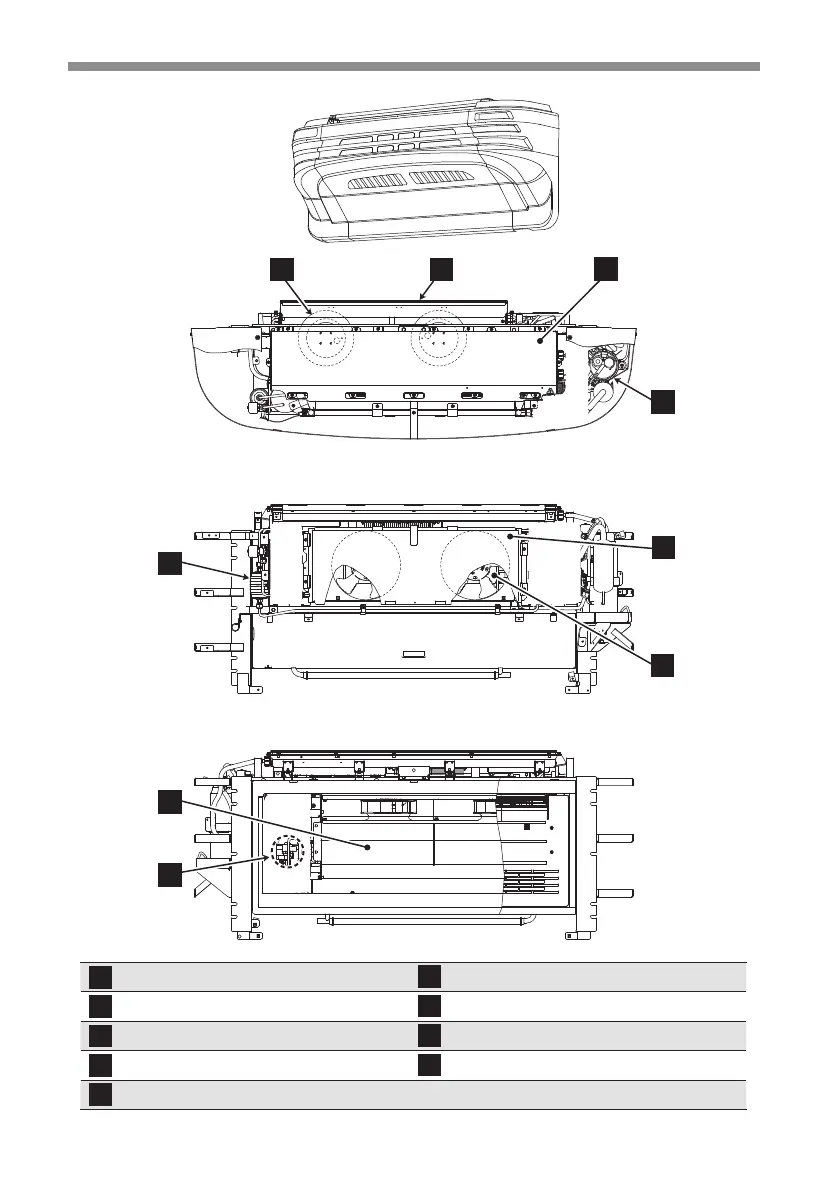

2 Name of each part
1
2
3
4
5
9
8
7
6
Refrigeration unit
■
T
op view
■
Front view
■
Back view
1
Evaporator outlet
6
Condenser fan motor
2
Evaporator fan motor
7
Condenser coil
3
Dryer
8
Compressor
4
Evaporator coil
9
Control box
5
Expansion valve
• For
m of co
mpo
nent
s and s
pe
cif
ica
tion
s may ve
ry d
ep
end
ing on m
ode
ls.
TEJ50AE
9
11
Table of Contents
Default Chapter
2
Important Information
2
Operation Manual
3
For Disposal
3
Information on the Models
4
Table of Contents
5
1 Function of Refrigeration Unit
7
2 Name of each Part
8
Arrangement Plan for Main Parts
8
Refrigeration Unit
10
Rear Evaporator Unit (2-Compartment Model)
12
Cabin Controller
13
LCD Display Area
14
Protective Devices
16
3 Precaution for Safety
17
Signs on Safety
17
Precautions
18
Handling of High-Voltages
18
General Precautions
20
During and after the Operation
21
Inspection/Cleaning/Repair
22
Loading
23
Handling of Electric Equipment and Power Codes
24
Reinstallation of Refrigeration Unit
25
Modification of Refrigeration Unit and Specification Change
26
Power Supply Equipment
26
Emergency Measures
27
Handling of Warning Labels
29
Prevention of Start During Inspection Work
31
Clothing and Protective Equipment
31
When Abnormal Conditions Are Detected
31
For Emergency
31
4 Initial Setting
32
Display and Function of Main Menu
32
Language Setting Mode
33
Display and Function of Sub-Menu
34
Setting the Calendar and Clock (Date, Month, Year)
37
Displaying the Maintenance Information
39
Setting the Defrost Interval
41
Setting LCD Backlight
42
5 Operation
44
Selecting the Operation Pattern (TEJ50AE Only)
45
Starting the Operation
47
Stopping the Operation
47
Normal Stop Procedure
47
Emergency Stop Procedure
47
Suspending (Sleep) the Compartment Operation (2-Compartment Model)
48
Setting the Temperature
49
Setting the Preset Temperature
50
Manual Defrost Operation
51
Starting the Manual Defrost Operation
51
Ending the Manual Defrost Operation
51
Setting the on Timer
52
Setting the off Timer
54
6 Loading
56
Preparation before Loading
56
Loading and Unloading
57
Loading Procedure
57
Unloading
58
7 Inspection
59
Precautions for Inspection
59
Daily Inspection
61
Inspection of Condenser Coil
61
Periodic Inspection
62
Periodic Inspection Check Sheet
63
Refrigerant and Refrigerating Machine Oil
64
Climate Class
64
8 Cautions for Use
65
When Operating at a Low Inside Container Temperature for a Long Period of Time
65
When Stopping the Refrigeration Unit for a Long Period of Time
65
9 For Emergency
66
Alarm Display
66
Switching "Normal Display" and "Alarm Display
66
Switching from "Normal Display Screen" to "Alarm Display Mode
66
Switching from "Alarm Display Mode" to "Normal Display Screen
66
Countermeasures
67
When You Contact Your Nearest Dealer
67
Resuming Operation after an Emergency Stop
67
List of Alarm Codes
68
