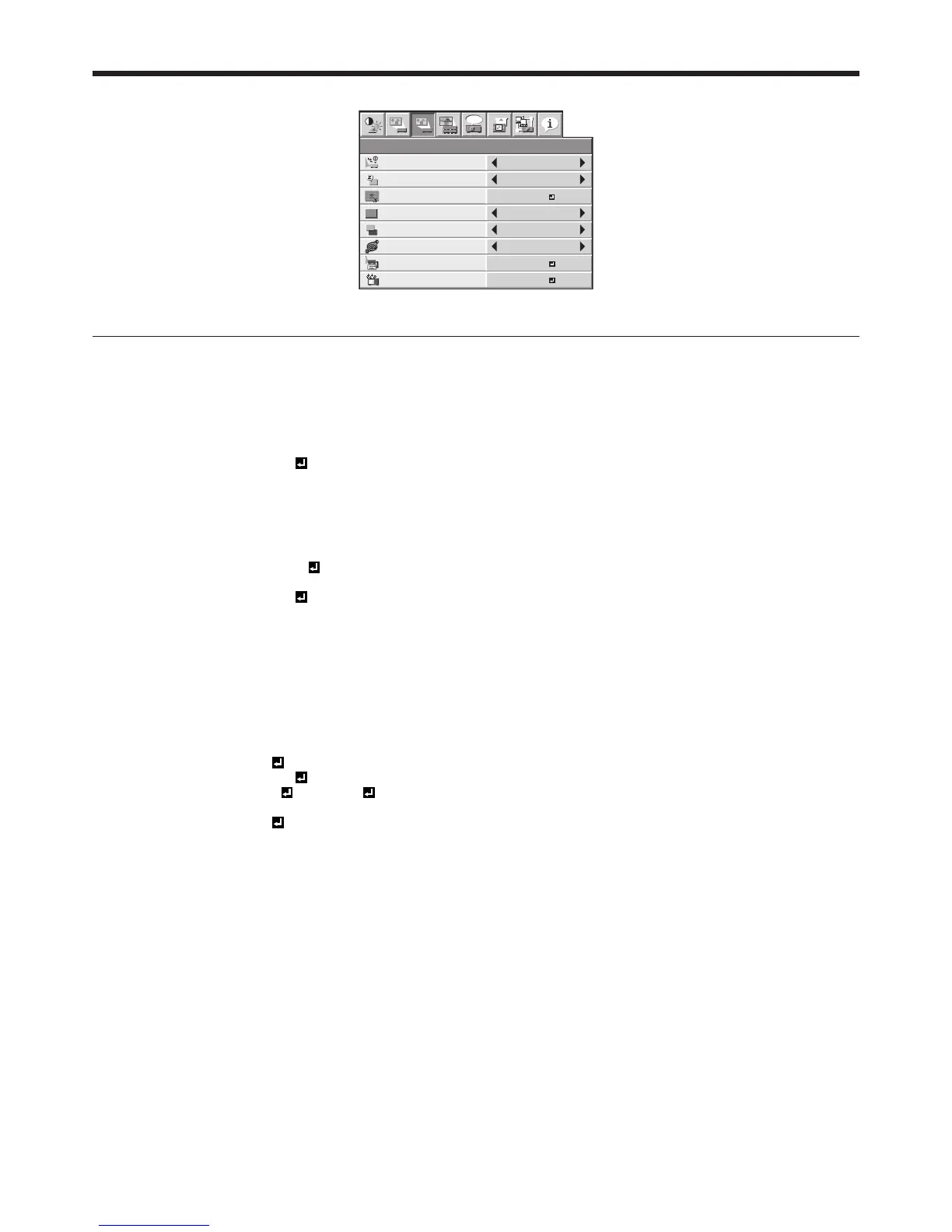

INSTALLATION 2 menu
REMOTE 1 MODE
FILTER MENU
INSTALLATION 2
AUTO POWER ON
AUTO POWER OFF
OFF
ON
BLUE
AUTO
5min
IMAGE CAPTURE
SPLASH SCREEN
DVI LONG CABLE
BACK COLOR
1
1
2
2
opt.
ON
ENTER
ENTER
SETUP
ITEM SETTING FUNCTION
AUTO POWER ON ON / OFF When ON is chosen, the projector is automatically turn on when the power
cord is plugged in the wall outlet. Choose ON when using the projector
mounted on the ceiling.
• Theprojectorisinthestand-bymodewhenthelampisoff.Usethe
remote control to turn on the lamp.
AUTO POWER OFF OFF / 5-60min When no video signal is input and no operation is made, the projector
automatically turns off after the selected time period. A dialog is displayed 5
minutes before the projector turns off.
IMAGE CAPTURE SETUP Use to capture the screen for the splash screen. (See page 55.)
SPLASH SCREEN ON / OFF Choose ON to display the splash screen when the power is turned on.
• Thesplashscreencanbechanged.(Seepage55.)
BACK COLOR
BLUE / BLACK /
Use to select the background from among BLUE, BLACK and IMAGE, which
will be displayed when there is no signal input from the source. When IMAGE
is selected, the splash screen will be displayed.
DVI LONG CABLE AUTO Select this option for normal use.
MANUAL Use to adjust the amount of transmission signal correction when a long DVI
cable is used.
REMOTE 1 MODE ENTER Select when controlling the projector by a control panel connected to the
REMOTE 1 IN terminal. (See page 61.)
PIN 1 GND Unchangeable. (Fixed.)
PIN 2 POWER / NONE Select POWER or NONE.
PIN 3 COMPUTER 1 You can assign COMPUTER 1, COMPUTER 2, VIDEO, S-VIDEO, DVI, HDMI,
SDI (for UD8400U and UD8400LU only), or NONE to each pin. Though the
assignment can be duplicated, the pins so assigned become invalid and their
settings are displayed with asterisks at both ends (like “*COMPUTER 1*”).
PIN 4 COMPUTER 2
PIN 5 VIDEO
PIN 6 S-VIDEO
PIN 7 DVI
PIN 8 BLANK / NONE Select BLANK or NONE.
PIN 9 ON/OFF Unchangeable. (Fixed.)
RESET OK Settings are reset to the defaults.
FILTER MENU ENTER The filter menu for the following settings is displayed.
CLEANUP PERIOD 24H / 1 WEEK /
OFF
You can set the filter cleaning interval. (See page 65.)
MANUAL CLEANUP OK Select this option to clean the filter immediately.
• Youcan’tsetIMAGECAPTUREandSPLASHSCREENwhenPASSWORDFUNCTIONintheFEATUREmenuhasbeensetto
SPLASH ID SCREEN to enable the password lock.
• WhenyousetBACKCOLORtoIMAGEanddisplaythesplashscreen(startupscreen)foralongtimeofperiod,theafter-image
may remain on the screen. Consult your dealer in this case.
• Don’tadjustthelensfrequentlywithBACKCOLORsettoIMAGE.
• WhenSTANDBYMODEintheINSTALLATION1menuisLOW,youcannotselectREMOTE1MODE.
