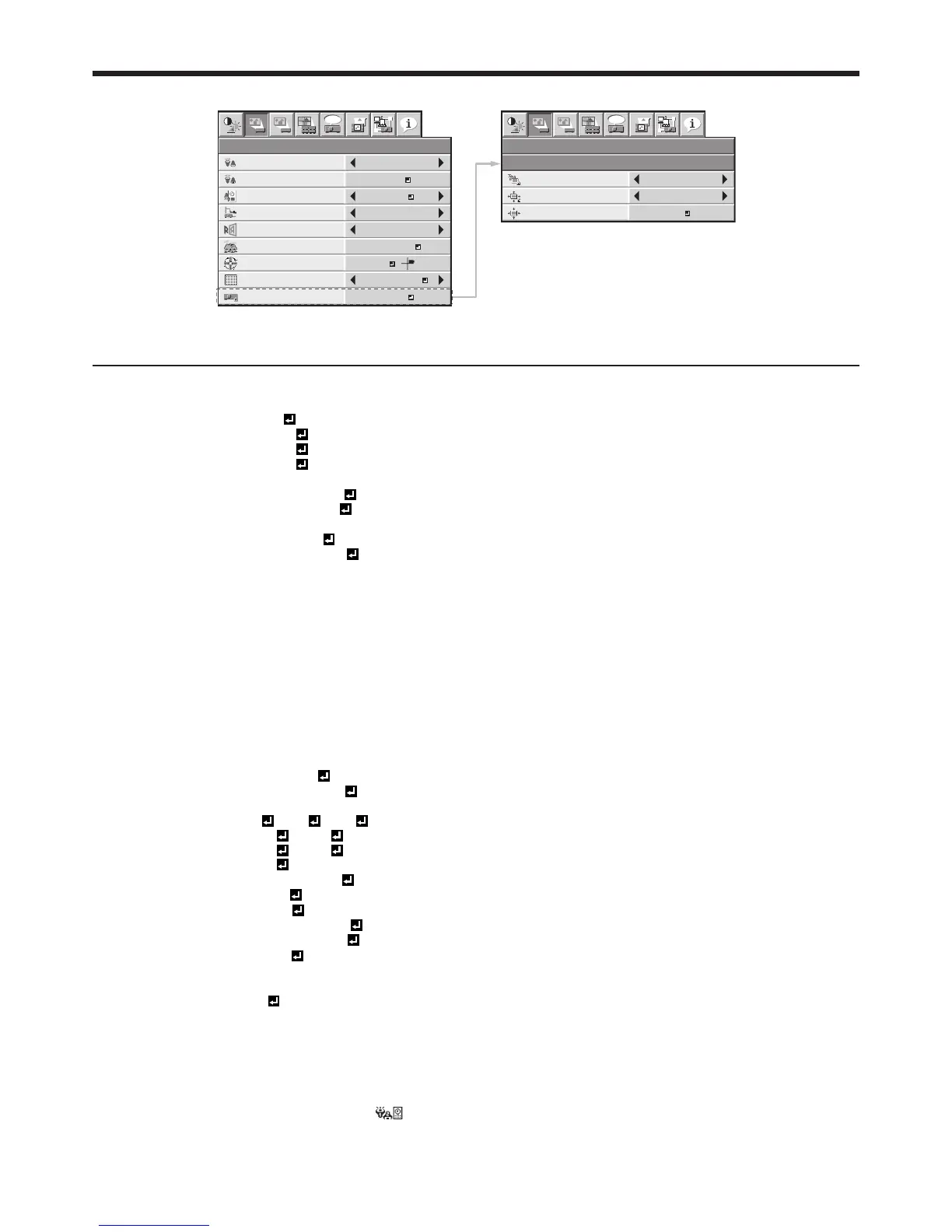

INSTALLATION 1 menu
INSTALLATION 1
LENS LOCK
LENS SHIFT LOCK
ZOOM/FOCUS LOCK
LENS SHIFT RESET
OFF
OFF
COOLING CONDITION
TEST PATTERN
INSTALLATION 1
LAMP MODE
LAMP SELECT
STANDARD
1H/24H
LOW
OFF
STANDARD
0°
DUAL
LAMP RELAY
CROSS HATCH
HIGH ALTITUDE MODE
1
2
STANDBY MODE
IMAGE REVERSE
LENS LOCK
1
1
2
2
opt.
1
1
2
2
opt.
ENTER
OK
ITEM SETTING FUNCTION
LAMP MODE STANDARD Select this option when you want to view images in a well-lit room.
LOW Select to moderate the intensity of the lamp. The operating sound is reduced
and the lamp lifetime becomes longer.
LAMP SELECT DUAL LAMP 1 and LAMP 2 illuminate.
SINGLE The lamp with shorter operation time is automatically selected at power-on.
LAMP 1 LAMP 1 illuminates. (When it is broken or dead, LAMP 2 illuminates automatically.)
LAMP 2 LAMP 2 illuminates. (When it is broken or dead, LAMP 1 illuminates automatically.)
LAMP RELAY DUAL: OFF The LAMP RELAY doesn’t work.
1H/24H
/
2H/1W
Use to set the lamp relay interval. (See page 53.)
SINGLE:OFF The LAMP RELAY doesn’t work.
24H
/
1 WEEK
Use to set the lamp relay interval. (See page 54.)
STANDBY MODE STANDARD Select this option when you control the projector via the LAN, REMOTE 1 IN,
and SERIAL OUT terminal during power standby.
LOW Select this option when you don’t control the projector via the LAN, REMOTE
1 IN, and SERIAL OUT terminal during power standby. This option disables
the LAN, REMOTE 1 IN, and SERIAL OUT terminal and reduces the power
consumption during the power standby.
IMAGE REVERSE OFF Select when viewing images from the front with the projector installed on the
floor.
MIRROR Select when viewing images projected from the behind of the screen with the
projector installed on the floor.
INVERT Select when viewing images projected from the behind of the screen with the
projector installed on the ceiling.
MIRROR INVERT Select when viewing images from the front with the projector installed on the
ceiling.
HIGH ALTITUDE MODE STANDARD Select this option for normal use.
HIGH ALTITUDE Select this option for use at an altitude of 2000 to 2700 meters above the sea
level.
COOLING CONDITION 0° / 45° / 90° /
135° / 180° /
225° / 270° /
315°
The cooling condition changes according to the selected projection angle.
(See page 13.)
TEST PATTERN CROSS HATCH Select to show the test cross hatch pattern.
WHITE Select to show the maximum brightness image.
BLACK Select to show the minimum brightness image.
H. COLOR BARS The horizontal color bar pattern is displayed.
V. COLOR BARS The vertical color bar pattern is displayed.
LENS LOCK ENTER The LENS LOCK menu is displayed for the following settings.
ZOOM/FOCUS LOCK ON / OFF Use to enable or cancel the FOCUS LOCK and ZOOM LOCK.
LENS SHIFT LOCK ON / OFF Use to enable or cancel the LENS SHIFT LOCK.
LENS SHIFT RESET OK Use to reset the position of the lens to the factory setting.
• RegardlessofthesettingofLAMPMODE,theSTANDARDlampmodeisactivatedbydefaultwhenevertheprojectoristurned
on. When LAMP MODE has been set to LOW, the lamp mode changes from STANDARD to LOW about 1 minute after turn-on.
• Whenthelampmodeisswitched,theprojectedimagemayicker.
• Frequentswitchingofthelampmodemaydamagethelamp.
• Whenusingtheprojectorforalongtime,setLAMPRELAY.
• Tocancelthetestpattern,pressanybuttonotherthantheTESTPATTERNbuttonontheremotecontrol.
• Whilethelampsarebeingswitched,anicon is displayed to the right of the INSTALLATION 1 menu bar. While the icon is
being displayed, you cannot set LAMP SELECT and LAMP RELAY.
• Afteryouswitchthelampsandthenewlyselectedlampturnson,youcannotturnofftheprojectorforapprox.1minute.
Menu operation (continued)
