OPERATION
13
EN
1. MIG torch euro connector.
2. Positive (+) welding power output
connection socket.
3. TIG torch gas connector.
4. MIG Torch Polarity Change Power
Connection.
5. Remote connection plug.
6. Negative (-) welding power output
connection socket.
7. Gas inlet connector.
8. Power switch.
9. Input power cable.

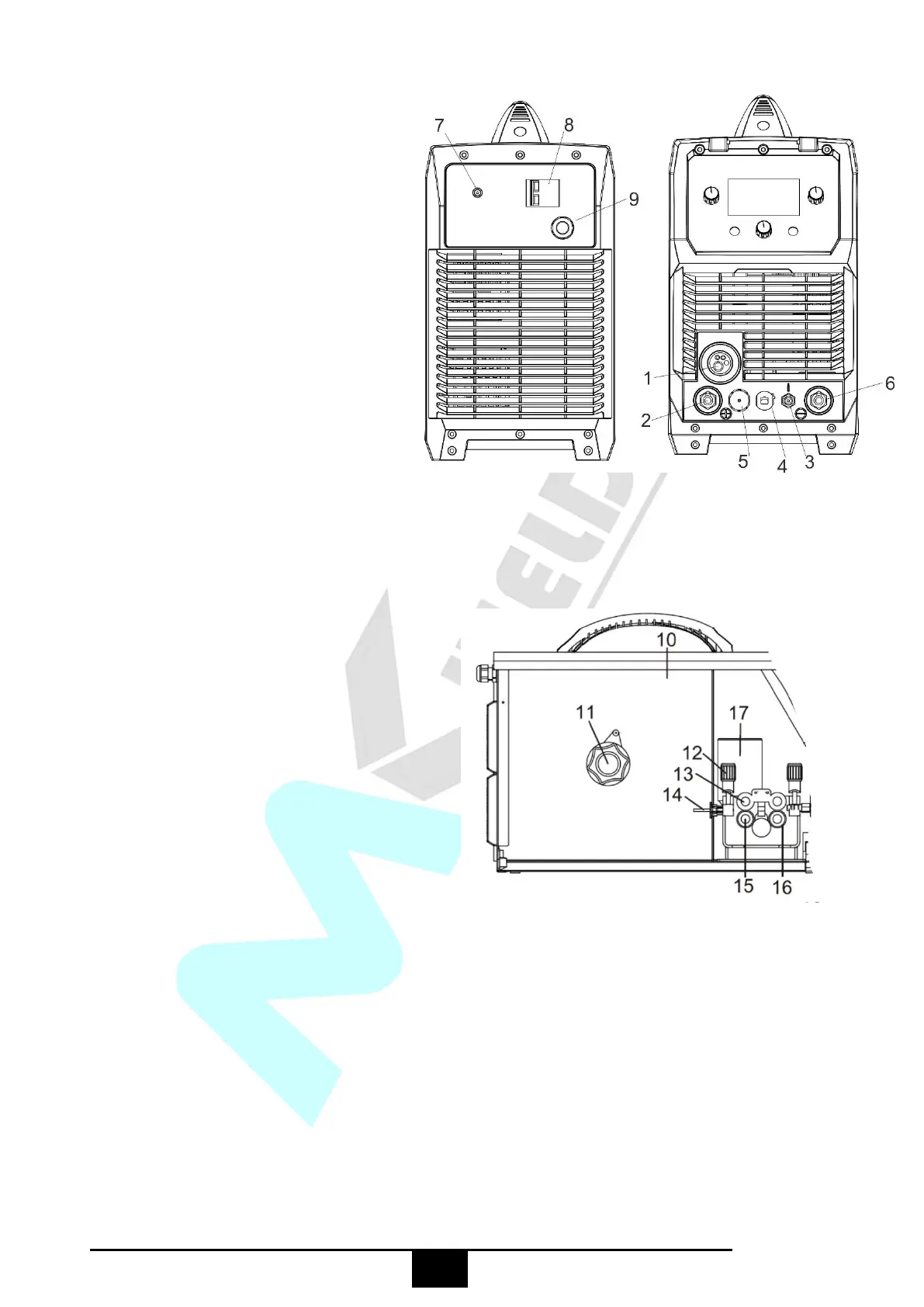

Welding machine internal view
10.
11. Wire feed tension adjustment (2x).
12. Wire feed tension arm (2x).
13. Wire feeder inlet guide.
14. Drive roller retainer (2x).
15. Wire drive roller (2x).
16. Wire feed motor.
