OPERATION
(8) Replace the front end parts. (10) Install a U groove drive roller of the
size for the diameter wire being used.
(11) Place aluminium wire onto spool holder.
Feed the wire through the inlet guide tube on
to the drive roller.

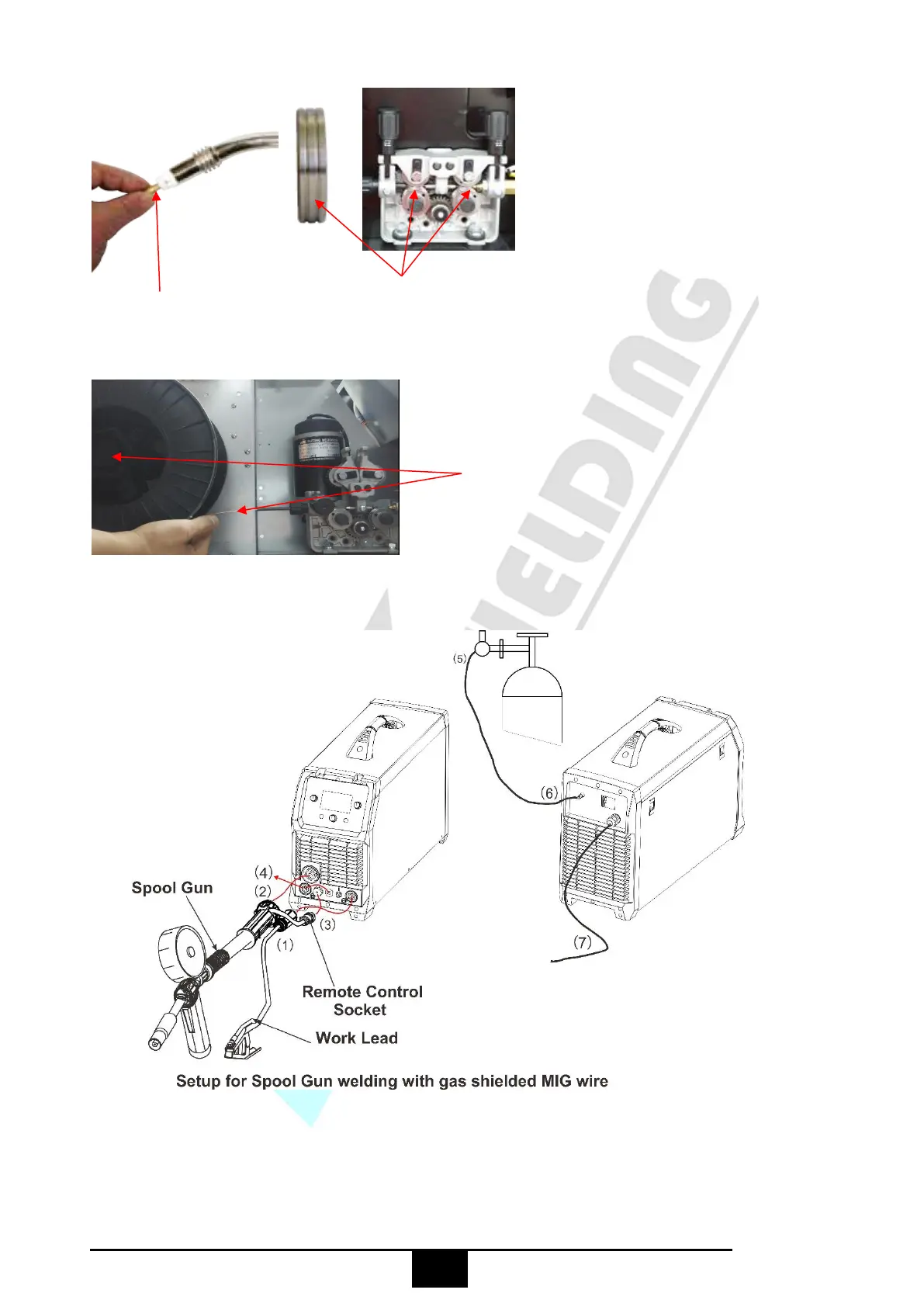

§4.1.9 Set up installation for Spool Gun
(1) Insert the earth cable plug into the Negative socket on the front of the machine and tighten it.
(2) Connect the Spool Gun to the Mig torch connection socket on the front panel and tighten it.
