§4.2 Installation & Operation for Stick Welding
§4.2.1 Set up installation for Stick Welding
Connection of Output Cables
Connection of Output Cables Two sockets are available on this welding machine. For MMA welding
the electrode holder is shown be connected to the positive socket, while the earth lead (work piece)
is connected to the negative socket, this is known as DCEP. However various electrodes require a
different polarity for optimum results and careful attention should be paid to the polarity, refer to the
electrode manufacturers information for the correct polarity.

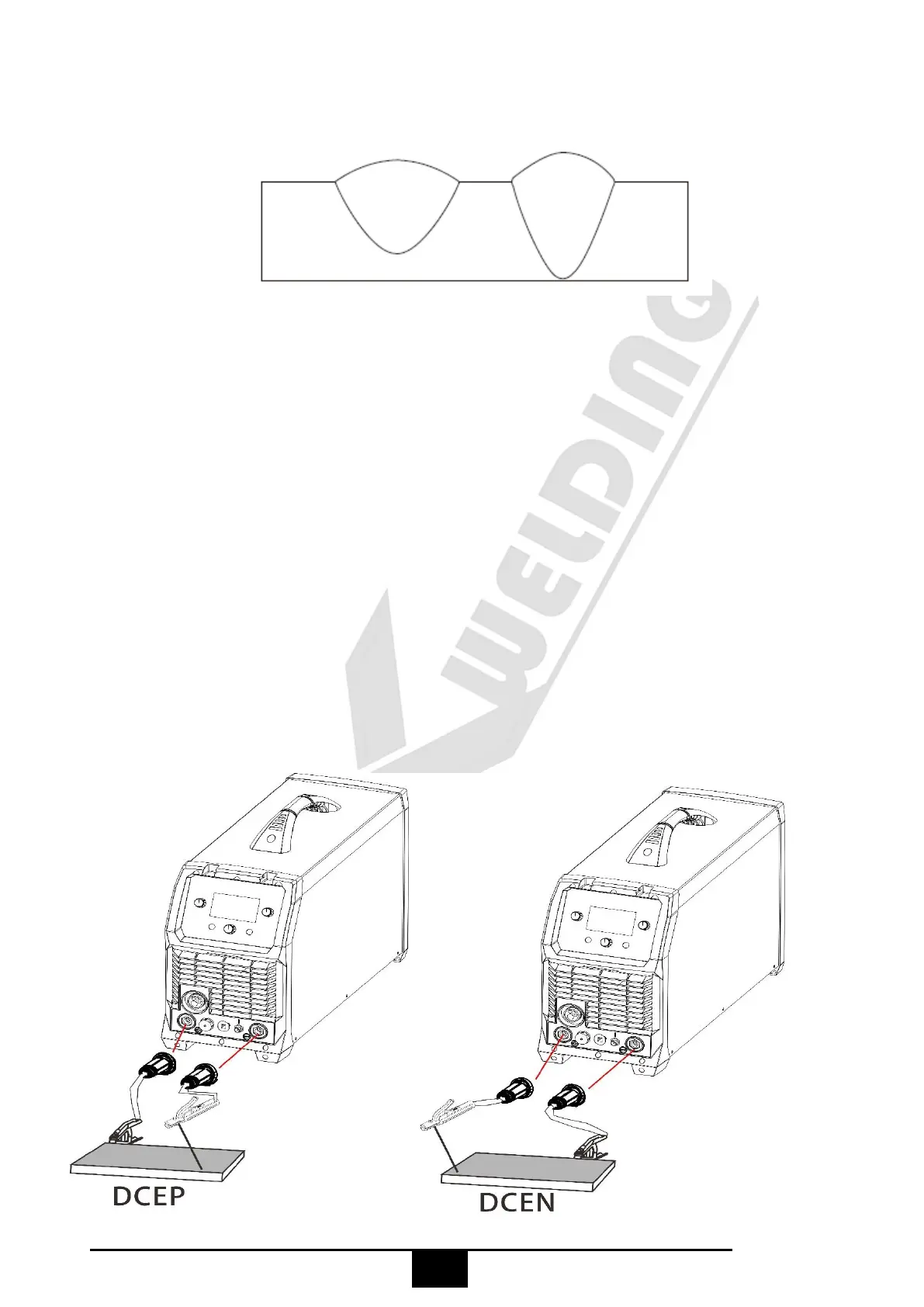

DCEP: Electrode connected to “+”output socket.
DCEN: Electrode connected to“-” output socket.
Argon Co2 Co2
Penetration Pattern for
Steel
