MK Welding Multi-GMAW 200 LCD PFC - Tig Gun Switch Control

59
EN
1.6mm
.500
25
08 - 50
05 - 100
1.6mm
.800
30
10 - 70
10 - 140
2.4mm
.800
35
12 - 90
12 - 180
2.4mm
1.100
45
15 - 150
15 - 250
3.2mm
1.100
60
20 - 200
20 - 300
3.2mm
1.500
90
25 - 250
25 - 350

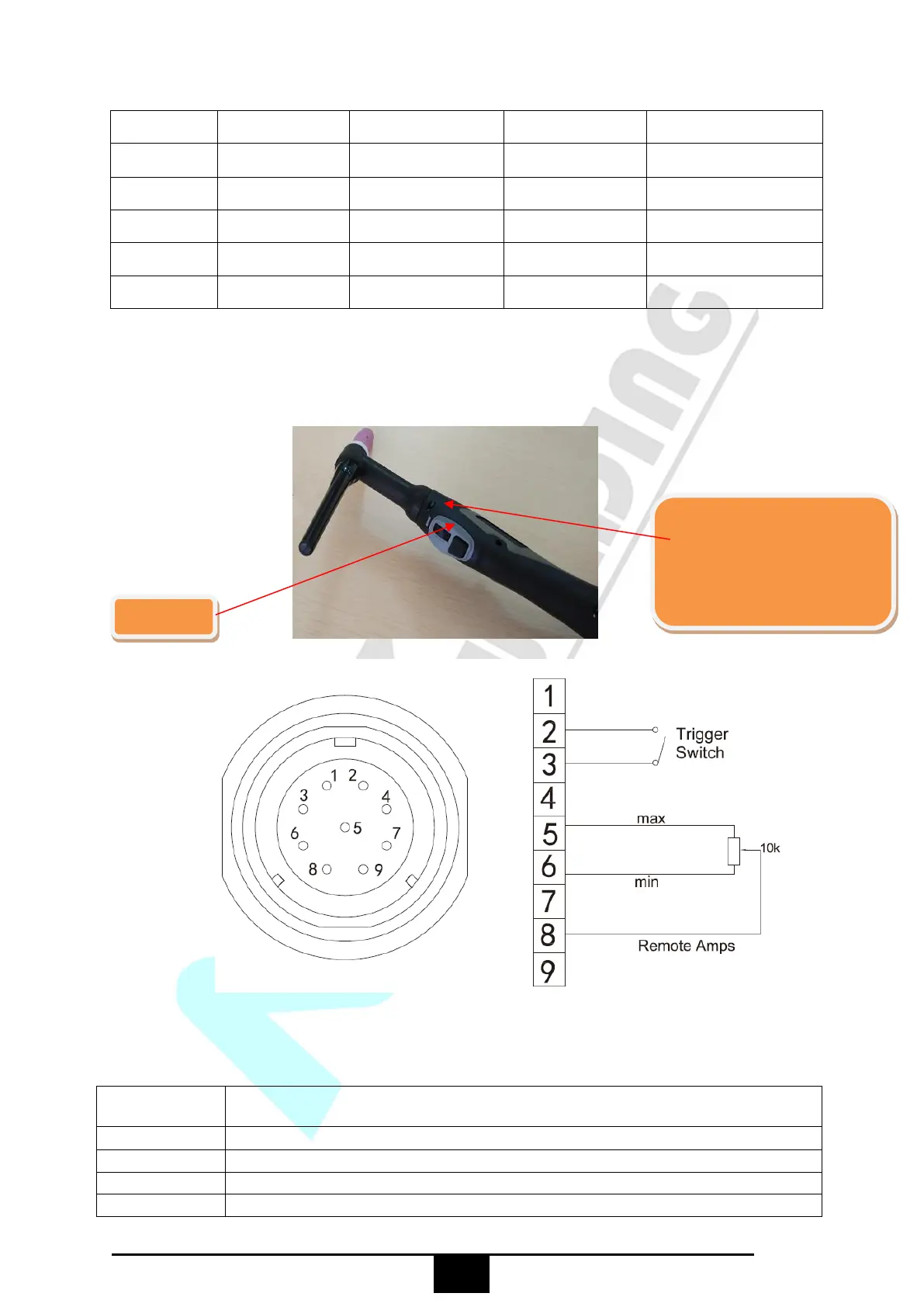

§4.3.7 Tig Gun switch control
Socket Pin
Function
1
Not connected
2
Trigger Switch Input
3
Trigger Switch Input
4
Not connected
Gun switch
Adjust current roller wheel,
when it’s roll upwards, the
current increase, when it’s roll
downwards, the current
decrease.
Remote Control
Socket
