OPERATION

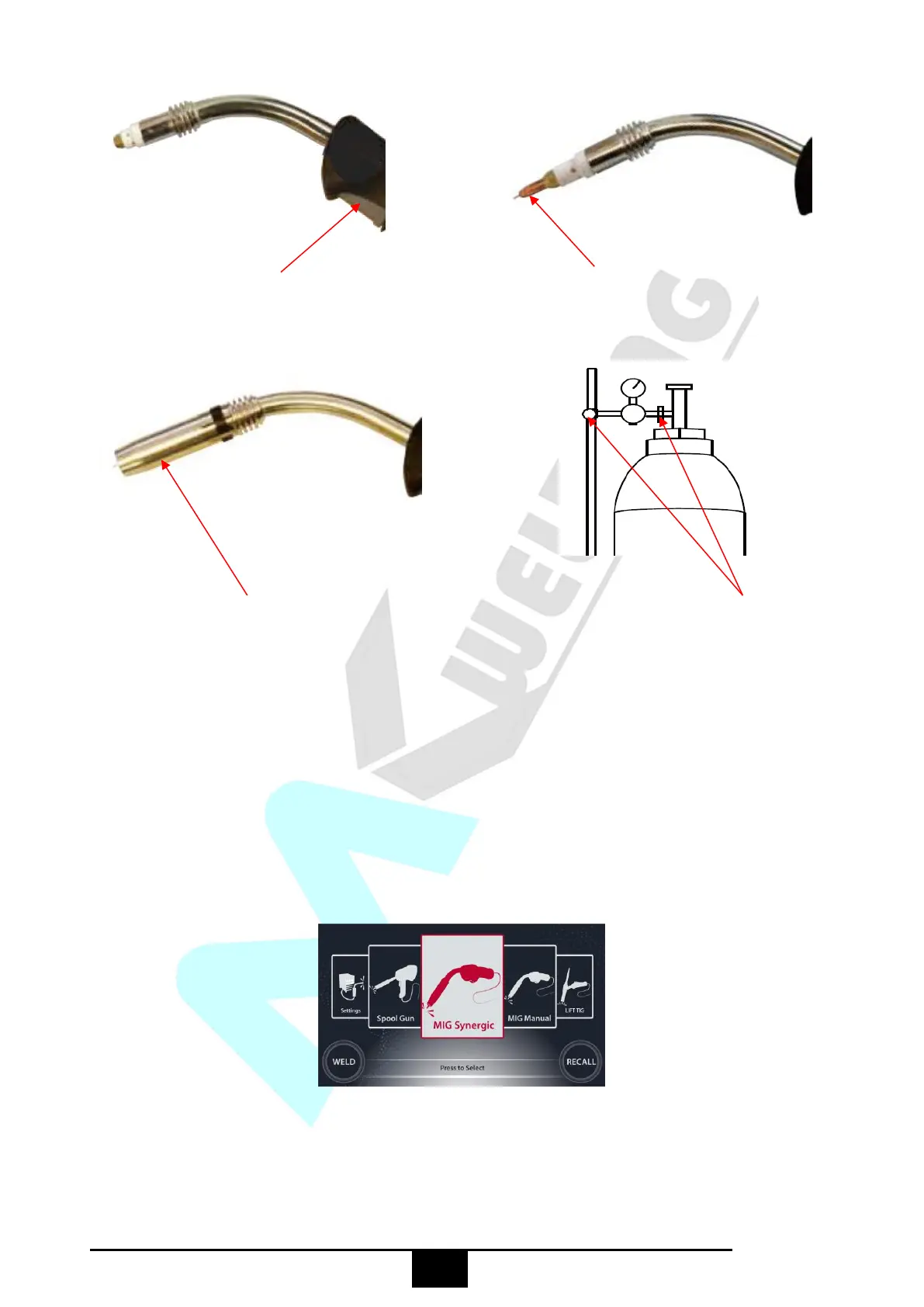

(11) Pull the trigger to feed the wire down (12) Fit the correct size contact tip over the
the torch cable through to the torch head. wire and fasten tightly into the tip holder.
(13) Fit the gas nozzle to the torch head. (14) Carefully open the gas cylinder valve
and set the required gas flow rate.
§4.1.2 Operation of MIG/MAG Synergic welding method
1. Selection of the welding method:
1) In the main interface, press the MENU key to enter the function selection interface;
2) In the function selection interface, rotate L Knob to select the MIG/MAG Synergic welding method
and press the knob for confirmation in the interface shown below:
Fig. 1
2. Selection of synergic parameters:
