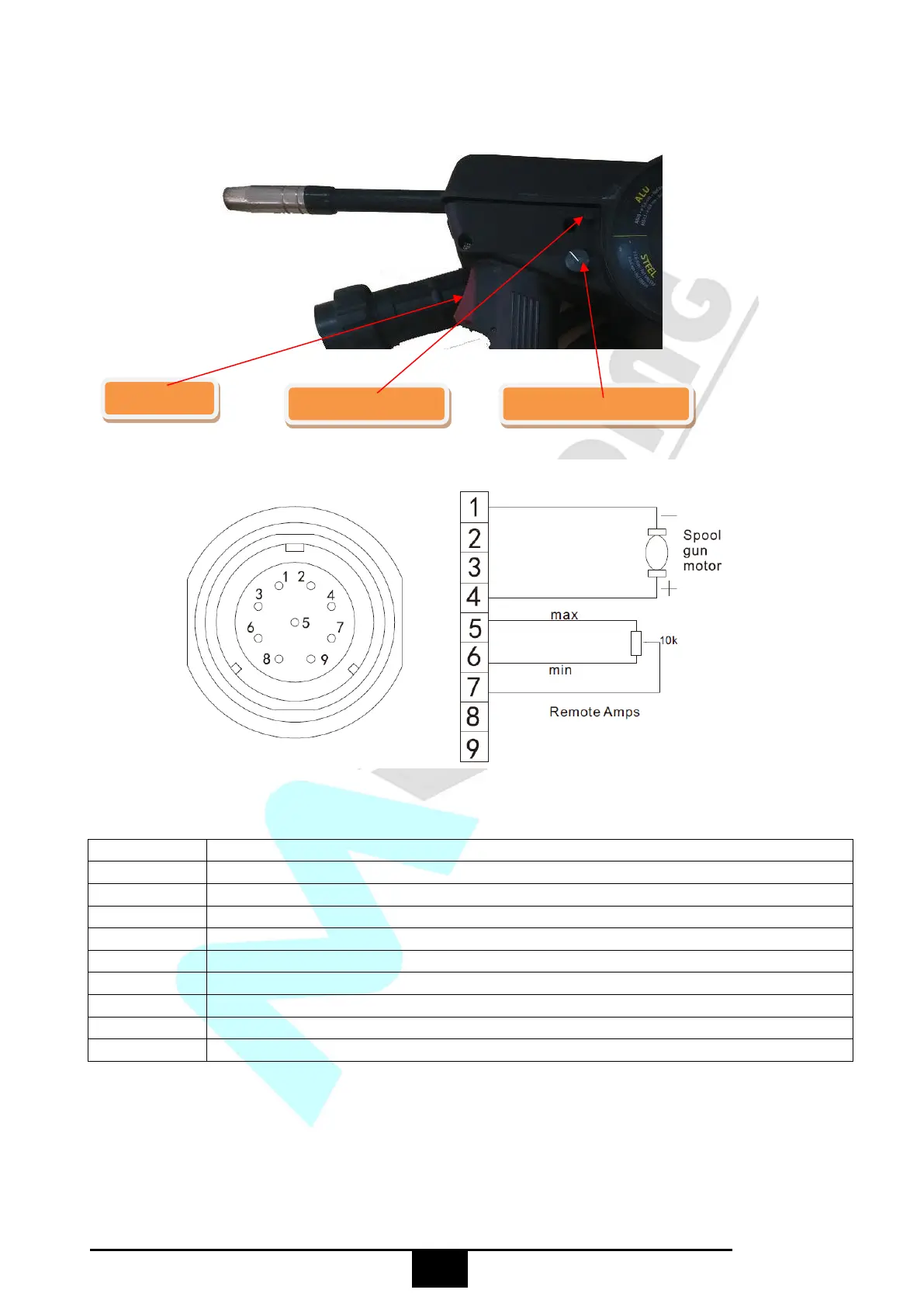

Spool Gun
Socket Pin
Function
1
Spool gun motor
2
Not connected
3
Not connected
4
Spool gun motor
5
10k ohm (maximum) connection to 10k ohm remote control potentiometer.
6
Zero ohm (minimum) connection to 10k ohm remote control potentiometer.
7
Wiper arm connection to 10k ohm remote control potentiometer.
8
Not connected
9
Not connected
Gun switch
Spool cover switch
Adjust current
button
Remote Control
Socket
