2.3.3.2 Wiring Terminals

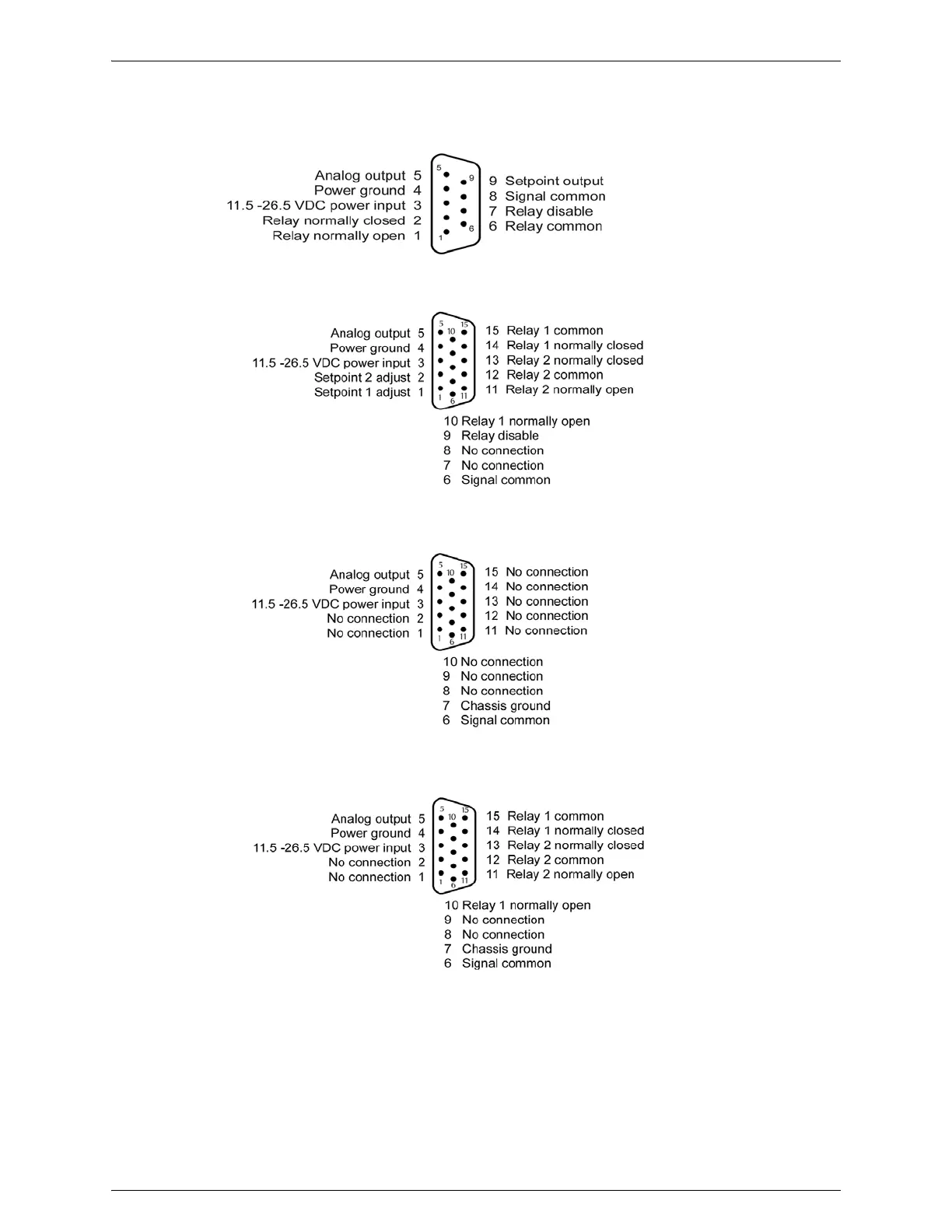

Figure 2-5 #275400-1 Module with 9-Pin Connector, one Setpoint Relay, no Digital Display
Figure 2-6 #275400-2 Module with15-Pin Connector, two Setpoint Relays, no Digital Display
Figure 2-7 #275600-0 Module with15-Pin Connector, no Setpoint Relay, 3-Digit Display
Figure 2-8 #275600-2 Module with 15-Pin Connector, two Setpoint Relays, 3-Digit Display
